Restore Peak Performance to Your GM Vehicle

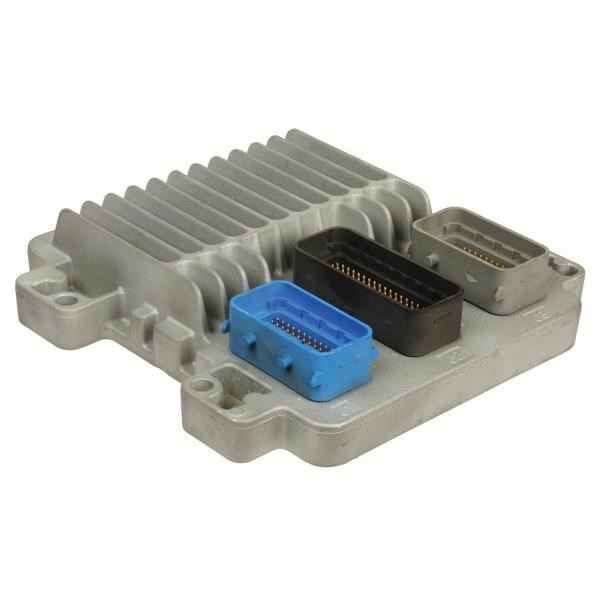

Is your SAAB 9-7X, Corvette, or Trailblazer suffering from frustrating issues like a persistent check engine light, erratic idling, stalling, or a complete no-start condition? These are classic signs of a failing Engine Control Module (ECM), the central computer that manages your engine’s performance. When the ECM falters, it can throw your vehicle’s entire operation into chaos. This replacement 2005 SAAB 9-7X Engine Control Module is the definitive solution to restore your vehicle’s reliability and drivability.
Unlike sourcing a part from a salvage yard or a generic retailer, this ECM arrives at your door specifically programmed for your vehicle. We use your Vehicle Identification Number (VIN) to load the latest, most stable software directly from GM. This critical step ensures all engine parameters, transmission communications, and emissions systems function exactly as the factory intended. You get a component that is ready for installation, saving you a costly trip to the dealership for programming services.
A Technician’s Notebook
I remember a 2005 GMC Envoy that came into the shop with a stubborn P0601 (Internal Control Module Memory Check Sum Error) code. The owner had already replaced the spark plugs and an oxygen sensor trying to fix a rough idle and poor fuel economy. The code would clear, but always return within a day. After confirming power and ground to the ECM were solid, we knew the internal processor was the culprit. We installed one of these VIN-programmed modules. The security relearn took about 30 minutes, and the vehicle fired right up. The idle smoothed out immediately, and after a 10-mile test drive, all monitors were ready. The P0601 code never came back. It’s a perfect example of how the right, correctly prepared part is the only real fix.
Is Your Vehicle Showing These Signs of ECM Failure?
A failing engine computer can cause a wide range of symptoms that are often misdiagnosed. If you’re experiencing any of the following, a faulty ECM is a likely cause:
- ✔ Check Engine Light is illuminated with codes like P0601, P0602, P0606, or U0100.
- ✔ The engine cranks but refuses to start.
- ✔ Unexplained drops in fuel efficiency.
- ✔ Rough or unstable engine idle.
- ✔ Intermittent stalling or hesitation during acceleration.
- ✔ Apparent transmission shifting problems or harsh shifts.
- ✔ Failure to pass an emissions inspection.
A Straightforward Guide to Installation
Installing your new 2005 SAAB 9-7X Engine Control Module is a manageable job for a DIYer with basic tools. The most important part is the post-installation security relearn, which doesn’t require any special scanners.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post.
- Locate the ECM: On most of these vehicles (like the Trailblazer, Envoy, and Rainier), the ECM is located in the engine bay on the driver’s side, near the air filter box.
- Disconnect and Remove: Carefully unplug the electrical connectors. There are typically release tabs that need to be pressed or lifted. Once disconnected, unbolt the module from its mounting bracket.
- Install the New Module: Bolt the new ECM into place and securely reconnect all electrical harnesses. Ensure they click into place.
- Reconnect Battery: Re-attach the negative battery terminal.
- Perform Security Relearn (Crucial Step): Turn the key to the “ON” position (without starting). Attempt to start the engine; it will crank but not fire. Leave the key in the “ON” position for 10-12 minutes, or until the security light on the dash stops flashing and turns off. Turn the key off for 10 seconds. Repeat this cycle two more times for a total of three 10-minute cycles. The vehicle should now start and run.
Verified Vehicle Compatibility
This module is a direct-fit replacement for a wide range of popular 2005 GM vehicles. Please confirm your model and engine option below. This unit replaces service numbers 12578554, 12596771, 12597191, 12597883, and 19210071.
- 2005 Buick Rainier: (LH engine), 5.3L
- 2005 Chevrolet Corvette: (RH engine compartment)
- 2005 Chevrolet SSR: (next to air box)
- 2005 Chevrolet Trailblazer EXT: (LH engine), 5.3L
- 2005 GMC Envoy / Envoy XL / Envoy XUV: (LH engine), 5.3L
- 2005 Isuzu Ascender: 5.3L (LH engine)
- 2005 Pontiac GTO: main (LH engine)
- 2005 SAAB 9-7X: (LH engine), 8 cylinder
This pre-programmed 2005 SAAB 9-7X Engine Control Module is your most reliable and efficient path to getting your vehicle back on the road. Eliminate the guesswork and solve those persistent engine problems for good.
Frequently Asked Questions
What does ‘VIN Programmed’ mean?
What does ‘VIN Programmed’ mean?
It means we load your vehicle’s specific Vehicle Identification Number (VIN) and the latest GM-certified software onto the module before shipping. This ensures it communicates correctly with your engine, transmission, and other systems, just like the original part from the factory.
Will I need to take my car to a mechanic for installation?
No. Because the module comes pre-programmed, you will not need a dealership or mechanic with special tools for programming. You or your mechanic will only need to perform a standard security relearn procedure after installation, which requires no tools and can be done in your driveway.
How do I provide my VIN?
After you complete your purchase, you will need to send us a message with your 17-digit VIN. We cannot program and ship the module without it. You can find your VIN on your vehicle’s registration, insurance card, or on the driver’s side dashboard viewable through the windshield.
Will this fix my specific problem?
This ECM is a direct solution for failures within the module itself, which commonly cause issues like no-start conditions, random stalling, and internal processor fault codes (e.g., P0601). While it solves many problems, you should ensure your vehicle’s issue has been properly diagnosed as an ECM failure.
Is this compatible with other part numbers?
Yes, this part is a direct replacement for several service numbers, including 12578554, 12596771, 12597191, 12597883, and 19210071. If your original module has one of these numbers, this part is compatible.
