Restore Peak Performance to Your Vehicle’s Powertrain
Is your 2005 SAAB 9-7X or other GM vehicle suffering from frustrating issues like intermittent stalling, a persistent check engine light, or a complete no-start condition? These are classic signs of a failing Engine Control Module (ECM), the central computer responsible for managing everything from fuel delivery and ignition timing to transmission shifts. In my 20+ years of automotive diagnostics, I’ve seen countless drivers chase expensive sensor and component replacements, only to find the root cause was a faulty ECM all along. This module is the definitive solution, restoring the critical communication and control your engine needs to run smoothly and efficiently.

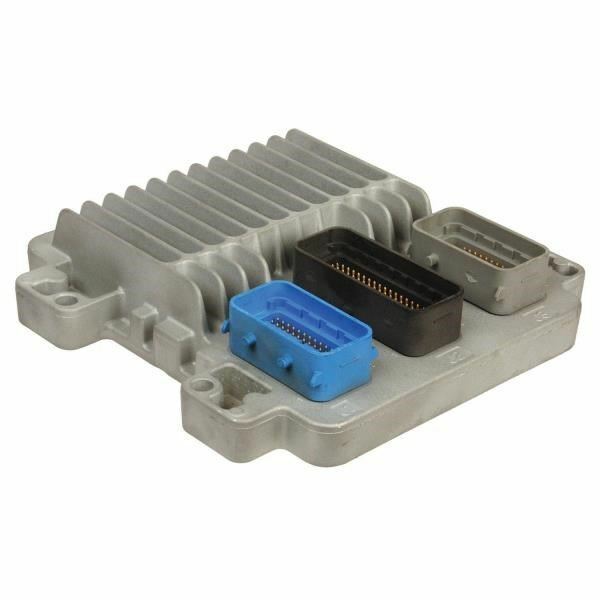

We take the guesswork and high dealership costs out of the equation. This isn’t just a replacement part; it’s a complete, ready-to-install solution. When you order, you provide us with your vehicle’s VIN. We then flash this 2005 SAAB 9-7X Engine Control Module with the latest, most stable software updates directly from GM. This ensures perfect compatibility and optimal performance, right out of the box. No need for expensive scan tools or a trip to the service center for programming—it’s already done for you.
From the Diagnostic Bay: The Ghost in the Machine
I remember a 2005 Envoy with the 5.3L that came into the shop on a tow truck. The owner had replaced the throttle body, MAF sensor, and even the fuel pump, but it still wouldn’t stay running for more than a few seconds. The scanner was showing a slew of communication error codes (U-codes) along with a P0601 (Internal Control Module Memory Check Sum Error). This P0601 code is a dead giveaway. The ECM’s internal processor was failing, causing it to send corrupted data to other modules. We installed a VIN-programmed ECM, and the truck fired up instantly and ran perfectly. It’s a powerful reminder that sometimes the ‘brain’ is the problem, not the ‘body’.
Is Your Vehicle Showing These Symptoms?
- ✔ Check Engine Light is on with codes like P0601, P0606, or various communication codes (U-codes).
- ✔ The engine cranks but refuses to start.
- ✔ Unexplained stalling, especially when coming to a stop or at idle.
- ✔ Noticeable decrease in fuel economy and poor engine performance.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Communication issues with your diagnostic scan tool.
- ✔ Apparent failure of multiple unrelated sensors at the same time.
A Straightforward Guide to Installation
Replacing your ECM is a job most DIYers can handle in under an hour. Our pre-programming service makes it a true plug-and-play process.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent accidental contact.
- Locate the ECM: On most of these vehicles, the ECM is located in the engine bay on the driver’s side, often near the air filter box or firewall.
- Disconnect the Harnesses: Carefully release the locking tabs on the electrical connectors and pull them straight out from the module. Avoid pulling on the wires themselves.
- Remove the Old Module: Unbolt the mounting hardware holding the original ECM in place and remove it from the vehicle.
- Install the New Module: Mount your new, pre-programmed ECM in the same location and secure it with the original hardware.
- Reconnect Everything: Firmly plug the electrical harnesses back into the new ECM until they click into place. Reconnect the negative battery terminal.
- Security Relearn (If Necessary): In some cases, a simple 10-15 minute security relearn procedure may be required. This typically involves turning the key to the ‘ON’ position for 10 minutes, then ‘OFF’, and repeating two more times before starting the engine.
Verified Vehicle Compatibility
This module is a direct-fit replacement for the original part and is guaranteed to be compatible with the following vehicles and options. It replaces service numbers: 12578554, 12596771, 12597191, 12597883, and 19210071.
- 2005 Buick Rainier: with 5.3L V8 (LH engine)
- 2005 Chevrolet Corvette: (RH engine compartment)
- 2005 Chevrolet SSR: (next to air box)
- 2005 Chevrolet Trailblazer EXT: with 5.3L V8 (LH engine)
- 2005 GMC Envoy / Envoy XL / Envoy XUV: with 5.3L V8 (LH engine)
- 2005 Isuzu Ascender: with 5.3L V8 (LH engine)
- 2005 Pontiac GTO: (main, LH engine)
- 2005 SAAB 9-7X: with 8 cylinder engine (LH engine)
Why is providing my VIN so important?
Your Vehicle Identification Number (VIN) allows us to program the Engine Control Module with the exact software calibration for your vehicle’s specific options, engine, and transmission. This ensures seamless integration and proper function without any additional programming required on your end.
Will this fix my check engine light?
If the check engine light is caused by an internal failure of the ECM (common codes include P0601, P0602, P0606), then yes, this part is the correct fix. It’s always best to have the codes read with a scanner to confirm the diagnosis before ordering.
Is any other programming needed after installation?
No. This unit arrives pre-programmed and ready for installation. In a small number of cases, a simple, tool-free security relearn procedure (as outlined in the installation guide) may be necessary for the vehicle to start.
What if I have the wrong part number?
This module replaces a range of service numbers, including 12578554, 12596771, 12597191, and 12597883. As long as your vehicle is on the compatibility list, this module will work, as we program it specifically for your VIN.
Where is the ECM located on my 2005 SAAB 9-7X?
On the 2005 SAAB 9-7X, as with most GMT360 platform vehicles (like the Trailblazer and Envoy), the ECM is located in the engine compartment on the driver’s side, mounted near the underhood fuse block.
