Restore Peak Performance to Your GM Vehicle
Is your 2005 Buick Rainier, GMC Envoy, or other compatible GM vehicle suffering from frustrating, hard-to-diagnose issues? A faulty Engine Control Module (ECM) is often the culprit behind problems that can seem unrelated, from poor engine performance and stalling to erratic transmission shifting and persistent check engine lights. As the ‘brain’ of your vehicle, the ECM controls everything from fuel mixture and ignition timing to emissions systems. When it fails, the entire vehicle’s operation is compromised.

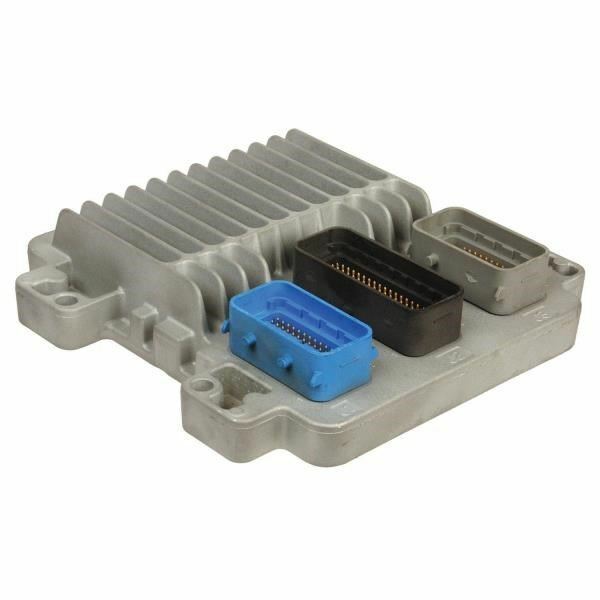

This isn’t just a replacement part; it’s a complete, ready-to-install solution. We take the hassle and high cost out of the equation by pre-programming this module specifically for your vehicle using your VIN. This ensures it arrives with the latest GM software updates, ready for a straightforward installation. You get a reliable fix that restores factory performance and drivability without a mandatory, expensive trip to the dealership for programming.
From the Diagnostic Bay: The Ghost in the Machine
I once had a 2005 Trailblazer with the 5.3L V8 in my shop that was driving its owner crazy. The truck would randomly stall at red lights, and he’d already replaced the throttle body and mass airflow sensor with no luck. The scanner showed intermittent communication loss codes (U-codes) but nothing consistent. After checking all the main power and ground circuits to the ECM, I suspected the module itself. A failing processor can cause these exact ‘ghost’ issues. We installed a VIN-programmed ECM just like this one, and the problem was solved instantly. It’s a reminder that sometimes the root cause isn’t a sensor, but the computer reading it.
Is Your Vehicle Showing These Symptoms?
- ✔ Check Engine Light is on with codes like P0601 (Internal Memory Fault) or P0606 (ECM Processor Fault).
- ✔ The engine cranks but refuses to start.
- ✔ Unexplained drops in fuel economy.
- ✔ The vehicle stalls unexpectedly or runs rough.
- ✔ Harsh or incorrect automatic transmission shifting.
- ✔ Loss of communication with other vehicle modules.
- ✔ Apparent failure of multiple unrelated sensors at once.
A Straightforward Guide to Installation
Replacing the 2005 Rainier Engine Module is a job most DIY mechanics can handle. Follow these steps for a successful installation.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent accidental contact.
- Locate the ECM: On most of these GM SUVs, the ECM is located in the engine bay on the driver’s side, often near the air filter box or firewall.
- Disconnect Connectors: Carefully unlatch and remove the wiring harness connectors from the old module. Inspect them for any corrosion or damage before proceeding.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket. There are typically a few bolts holding it in place.
- Install the New Module: Mount your new, pre-programmed ECM onto the bracket and secure it with the original bolts.
- Reconnect Everything: Firmly plug the wiring harness connectors into the new module until they click into place. Reconnect the negative battery terminal.
- Final Steps: Your vehicle may need to complete a security relearn procedure, which typically involves turning the key to the ‘ON’ position for 10-15 minutes. Consult your owner’s manual for specific instructions. Start the engine and verify the check engine light is off and the vehicle runs smoothly.
Verified Vehicle Compatibility
This module is a direct replacement for service numbers 12578554, 12596771, 12597191, 12597883, and 19210071. It is guaranteed to fit the following 2005 models:
- Buick Rainier: 5.3L (LH engine)
- Chevrolet Corvette: (RH engine compartment)
- Chevrolet SSR: (next to air box)
- Chevrolet Trailblazer EXT: 5.3L (LH engine)
- GMC Envoy / Envoy XL / Envoy XUV: 5.3L (LH engine)
- Pontiac GTO: Main (LH engine)
- Isuzu Ascender: 5.3L (LH engine)
- Saab 9-7X: 8 cylinder (LH engine)
Frequently Asked Questions
Do I need to do any programming after I receive this ECM?
No. This ECM comes fully programmed to your vehicle’s VIN with the latest GM software. It is ready for installation right out of the box, though a standard security relearn procedure may be required.
How do I provide my VIN?
After you complete your purchase, you will need to send us your 17-digit Vehicle Identification Number (VIN). We cannot ship the part until we have this information to program it correctly.
Is this a new or used part?
This is a high-quality, tested replacement part that has been professionally prepared and programmed to meet or exceed original equipment specifications for reliable, long-term performance.
Will this fix my check engine light?
If the check engine light is caused by an internal failure of the original ECM (e.g., codes P0601, P0606), this part is the correct solution. It’s crucial to ensure the ECM is the true cause of the issue and not a faulty sensor or wiring problem.
What tools do I need for installation?
Basic hand tools are typically all that’s required, such as a socket set to remove the battery terminal and the bolts holding the module bracket. No special electronic tools are needed.
