Restore Your Car’s Electrical Stability and Functionality

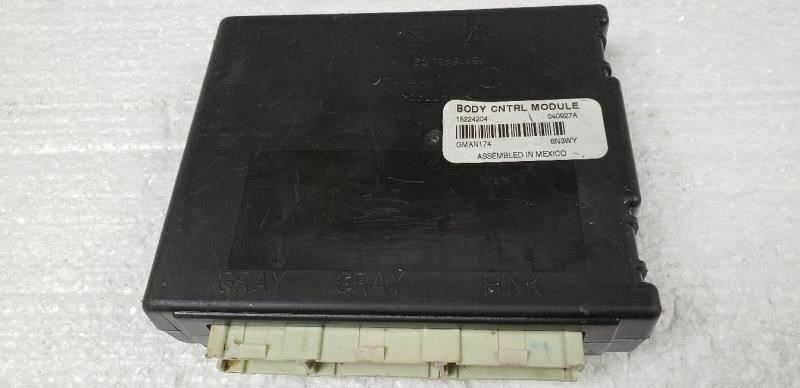

Are you dealing with baffling electrical issues in your 2005 Chevrolet Monte Carlo or Impala? Flickering interior lights, malfunctioning power windows and locks, or a security light that won’t turn off are classic signs of a failing Body Control Module (BCM). As the central command center for your vehicle’s body electronics, a faulty BCM can make your car feel unpredictable and unreliable. This isn’t just an annoyance; it can be a safety concern. This is a direct-fit replacement Body Control Module, part number 15224204 (interchangeable with 10377973), that arrives programmed specifically for your vehicle.
A customer brought in a 2005 Monte Carlo with a list of complaints that sounded like the car was possessed. The radio would change stations on its own, the dome light would flicker while driving, and occasionally the power door locks would cycle for no reason. They had already replaced the battery and checked the main grounds. After hooking up my scanner, I saw a handful of U-codes, specifically U0140 (Lost Communication With Body Control Module). This pointed directly to the BCM. Instead of a costly trip to the dealer for a new module and programming, we ordered a pre-flashed unit like this one. The installation was straightforward, and because it was already programmed to the VIN, the car came back to life instantly, with all the electrical gremlins gone. The customer saved hundreds and got their car back the same day.
Is Your Vehicle Showing These Symptoms?
- ✔ Erratic or non-functional power windows, door locks, or mirrors.
- ✔ Interior or exterior lights flickering, staying on, or not working at all.
- ✔ The security or anti-theft light is illuminated, potentially causing a no-start condition.
- ✔ Gauges on the instrument cluster behaving erratically or not working.
- ✔ Diagnostic Trouble Codes (DTCs) related to communication errors, such as U0140.
- ✔ Inconsistent remote keyless entry (RKE) operation.
This isn’t just a replacement part; it’s a complete solution. We take the guesswork and hassle out of the repair by programming the module to your vehicle’s specific VIN before it ships. This means it receives the latest GM software updates, ensuring optimal performance and communication with your car’s other electronic systems. The process is simple: place your order, provide us with your VIN, and we handle the rest. You’ll receive a part that is ready for installation right out of the box, saving you from expensive dealership programming fees and vehicle downtime.
A Straightforward Guide to Your BCM Installation
- ✔ Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait a few minutes before beginning work.
- ✔ Locate the BCM: On the 2005 Monte Carlo and Impala, the BCM is typically found on the left-hand side of the steering column, often behind the lower dash panel.
- ✔ Remove Trim Panels: Carefully remove any plastic trim or panels necessary to access the module. These usually pop off or are held by a few screws.
- ✔ Disconnect and Remove: Unplug the electrical connectors from the old BCM. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the old module from its mounting bracket.
- ✔ Install the New Module: Mount your new, pre-programmed 2005 Monte Carlo BCM in the same location and reconnect all electrical connectors, ensuring they click securely into place.
- ✔ Final Steps: Reinstall the trim panels and reconnect the negative battery terminal. Start the vehicle to test all functions (lights, locks, windows, etc.).
Important Post-Installation Information
While this module is programmed for your VIN, some vehicle systems may require a ‘handshake’ procedure after installation. If your airbag light comes on, a professional scan tool is needed to perform the “Setup SDM Primary Key in BCM” procedure. Additionally, a Brake Pedal Position relearn might be necessary to ensure proper brake light and traction control operation. Always consult a factory service manual for specifics related to your vehicle.
Verified Vehicle Compatibility
This Body Control Module is a guaranteed fit for the following vehicles, provided they match the specified options:
- 2005 Chevrolet Impala: Body Control (BCM); (LH steering column), excluding police package
- 2005 Chevrolet Monte Carlo: Body Control (BCM); (LH steering column)
This part directly replaces service numbers 15224204 and 10377973.
Frequently Asked Questions
How do I provide my VIN for programming?
After you complete your purchase, you will receive instructions on how to send us your vehicle’s 17-digit VIN. We cannot ship your module until we receive this information.
Do I need to return my old BCM?
No, there is no core charge for this part. You can keep your original module.
What if my airbag light is on after installation?
This is a known possibility. The new BCM needs to be synced with the airbag system’s SDM. This requires a ‘Setup SDM Primary Key in BCM’ procedure, which must be done with a professional-grade diagnostic tool.
Is this a difficult part for a DIYer to install?
The physical replacement is straightforward for someone with basic mechanical skills. The main benefit here is that the complex programming is already done for you, which is the most difficult part of the job.
Will this fix my car’s no-start problem?
If your no-start issue is caused by the factory anti-theft system (VATS/Passlock) being triggered by a faulty BCM, then yes, this programmed module will resolve that problem.
