Restore Your Monte Carlo’s Electrical System with a Plug-and-Play Solution

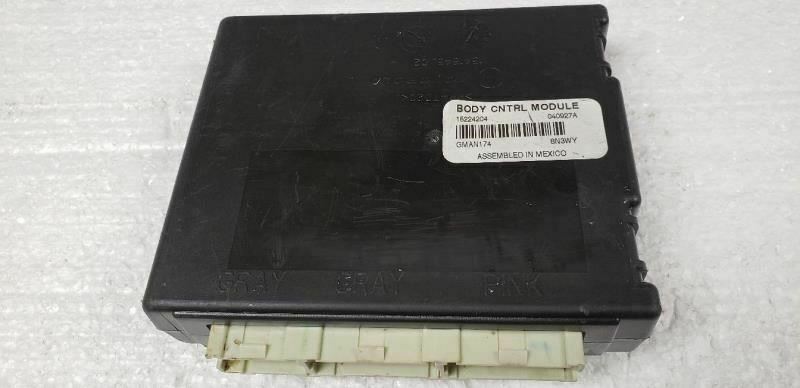

Are you tired of dealing with baffling electrical issues in your 2005 Chevrolet Monte Carlo or Impala? Flickering lights, malfunctioning power windows, or a security system that has a mind of its own are all common signs of a failing Body Control Module (BCM). The BCM is the central command center for your vehicle’s body electronics, and when it starts to fail, it can cause a cascade of frustrating and unpredictable problems. This replacement BCM, part number 15224204, is the definitive solution to get your car back to factory-spec operation without the dealership hassle.
A Technician’s Notebook: The Phantom Gremlins
I remember a 2005 Monte Carlo that came into my shop a few years back. The owner was at his wit’s end. One day the radio wouldn’t turn off even with the key out, the next day the power locks wouldn’t work, and the security light would flash randomly, sometimes preventing the car from starting. He had already replaced the battery and checked fuses. After connecting my diagnostic scanner, I saw several communication error codes (U-codes) pointing to a network issue. Experience told me that the BCM is the hub of that network. We installed a VIN-programmed BCM, and instantly, all the phantom electrical gremlins vanished. It’s a classic failure on these W-body platforms, and a pre-programmed module is the most efficient fix.
Is Your Vehicle Showing These Symptoms?
- ✔ Erratic or non-functional power windows, door locks, or interior lights.
- ✔ The security or anti-theft light stays on, potentially causing a no-start condition (PASSLOCK issues).
- ✔ Gauges on the instrument cluster behaving erratically or not working at all.
- ✔ Communication error codes (like U0140) stored in other modules.
- ✔ The radio or other accessories staying on after the key is removed.
- ✔ False warnings on the driver information center.
Our service makes the repair process simple. We take your vehicle’s VIN and program this 2005 Monte Carlo BCM with the latest GM software updates before it even leaves our facility. This means it arrives at your door ready for installation, saving you a trip to the dealership and their expensive programming fees. This module is a direct replacement for service numbers 15224204 and 10377973.
A Straightforward Guide to Installation
- ✔ Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait about 10 minutes to allow the systems to fully power down.
- ✔ Locate the BCM: On the 2005 Monte Carlo and Impala, the BCM is located under the driver’s side of the dashboard, to the left of the steering column.
- ✔ Remove Connectors: Carefully unplug the multiple electrical connectors from the old BCM. They have locking tabs that need to be depressed to be released. Do not force them.
- ✔ Unbolt the Module: Remove the mounting bolts or nuts holding the original BCM in place and carefully remove it from the vehicle.
- ✔ Install the New BCM: Mount your new, pre-programmed BCM in the same location and secure it with the original hardware.
- ✔ Reconnect Everything: Plug all the electrical connectors back into the new module, ensuring each one clicks securely into place. Reconnect the negative battery terminal.
Important Post-Installation Information
After installing your new 2005 Monte Carlo BCM, a couple of additional steps, known as relearn procedures, may be necessary to ensure full functionality. Please note that these are not always required but are good to be aware of:
- Airbag System Sync: If your airbag warning light is illuminated after installation, a procedure called ‘Setup SDM Primary Key in BCM’ is needed. This syncs the new BCM with the airbag system’s computer and requires a professional-grade scan tool.
- Brake Pedal Position Relearn: To ensure your brake lights and traction control system function correctly, a brake pedal position sensor recalibration might be required. This can also be performed with a compatible diagnostic tool.
Disclaimer: Vehicle systems can vary. We always recommend consulting a factory service manual or a certified technician if you are unsure about any part of the process.
Verified Vehicle Compatibility
This Body Control Module is a guaranteed fit for the following vehicles, provided they match the specified options:
- 2005 Chevrolet Impala: For models with the Body Control Module located on the left-hand steering column, excluding police package vehicles.
- 2005 Chevrolet Monte Carlo: For models with the Body Control Module located on the left-hand steering column.
Frequently Asked Questions
Why do you need my VIN?
Your VIN is essential for us to program the BCM with the correct software and vehicle-specific options from GM. This ensures the module works correctly with your car’s features right out of the box.
Is this a plug-and-play part?
Yes, this BCM is pre-programmed to your VIN, making the physical installation plug-and-play. However, as noted, some vehicles may require additional relearn procedures for the airbag or brake systems using a pro-level scan tool.
Do I need to return my old BCM?
No, there is no core charge for this part. You can keep your original module.
Will this fix my car’s no-start problem?
If your no-start issue is caused by the BCM’s control over the PASSLOCK anti-theft system, then yes, this part is very likely to solve the problem. A lit security light is a strong indicator.
What tools are needed for the post-installation procedures?
The Airbag System Sync and Brake Pedal Position Relearn require a bi-directional diagnostic scan tool, which is typically used by professional mechanics. Most consumer-grade code readers cannot perform these functions.
