Restore Flawless Shifting to Your 2005 Saturn ION

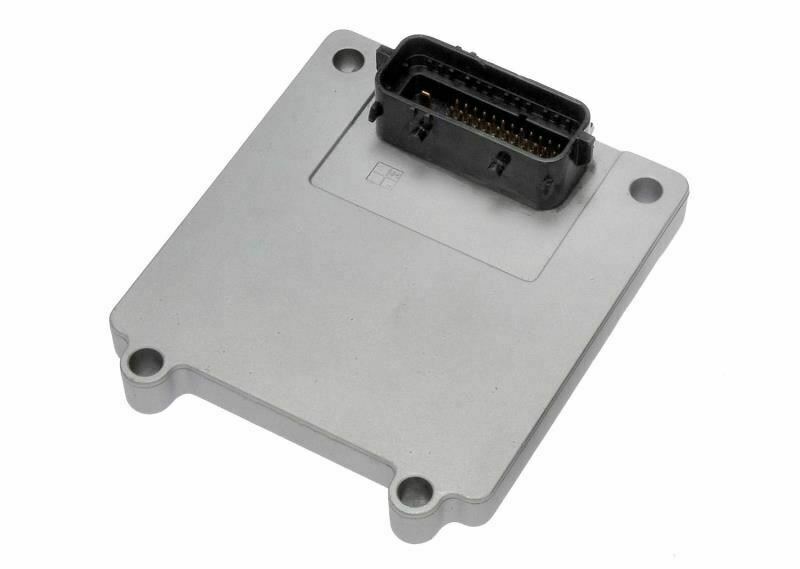

If you’re dealing with the frustration of a transmission that slams into gear, refuses to shift, or has your Check Engine light glowing, you’ve come to the right place. As a technician with over two decades of experience, I’ve seen firsthand how a faulty Transmission Control Module (TCM) can sideline an otherwise reliable vehicle. This isn’t just a replacement part; it’s a complete, ready-to-install solution for your 2005 ION TCM issues. We take the guesswork and extra cost out of the repair by pre-programming this module to your vehicle’s specific VIN with the latest factory software from GM.
From the Diagnostic Bay: The Ghost in the Machine
I remember a 2005 Cobalt—which shares its platform and TCM with the ION—that came into my shop with a maddeningly intermittent problem. The owner complained of random harsh downshifts and occasional failure to shift out of 2nd gear. Of course, it behaved perfectly during my test drive. No codes were stored. After checking fluid levels and connections, I suspected the TCM. On these vehicles, the module’s location behind the strut tower exposes it to significant heat and vibration. Over time, this causes internal solder joints to fail, creating intermittent connections that don’t always trigger a fault code immediately. We installed a VIN-programmed TCM, and the ‘ghost’ was gone. The customer called a week later, thrilled that his car drove like new again. This is a classic failure mode for this part.
Is Your GM Vehicle Showing These Symptoms?
A failing TCM can manifest in several ways. If you’re experiencing any of the following, this module is the likely solution:
- ✔ Harsh, erratic, or delayed shifting
- ✔ Vehicle stuck in one gear (limp mode)
- ✔ Check Engine Light illuminated
- ✔ Transmission-related Diagnostic Trouble Codes (DTCs) such as P0700, P0753, P0758, or U0100 (Lost Communication With TCM)
- ✔ No communication with the TCM when using a scan tool
- ✔ Inaccurate gear display on the dashboard
The Power of a Pre-Programmed Solution
The biggest hurdle in replacing a modern electronic module is programming. Typically, this requires a trip to the dealership and several hundred dollars in labor. Our process eliminates that completely. When you provide your Vehicle Identification Number (VIN) during checkout, our technicians will flash this 2005 ION TCM with the correct, most up-to-date GM software for your exact vehicle configuration. It arrives at your door ready for a straightforward installation, saving you significant time and money.
A Straightforward Guide to Installation
Installing your new TCM is a manageable job for a confident DIYer. While specific steps can vary slightly, here is a general guide for a 2005 Saturn ION.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent accidental reconnection.
- Locate the TCM: On the 2005 Saturn ION, the Transmission Control Module is located in the engine bay, typically mounted behind the driver’s side (LH) strut tower.
- Access the Module: You may need to remove a plastic cover or move other components for clear access to the TCM and its electrical connectors.
- Disconnect and Remove: Carefully unplug the wiring harness connectors. Note the locking tab positions. Then, unbolt the module from its mounting bracket and remove it from the vehicle.
- Install the New Module: Mount your new, pre-programmed TCM in the same location. Secure the bolts and reconnect the wiring harnesses, ensuring they click securely into place.
- Final Steps: Re-install any components you removed for access. Reconnect the negative battery terminal. Start the vehicle and test drive to confirm that shifting performance is restored.
Verified Vehicle Compatibility
This module is a direct replacement for several original part numbers and fits a wide range of GM vehicles. Please verify your model and specific options below.
Replaces Part Numbers: 24223112, 24226863, 24233595, 24234189, 24239427, YBWW, YDFC, YDFD, YDLT, YJHY, YKTB, YKTF
- 2005 ALLURE: Transmission; (lower air cleaner housing)
- 2005 COBALT: Transmission; (LH strut tower)
- 2005 CORVETTE: Transmission; (LH frame rail)
- 2005 ENVOY / ENVOY XL / ENVOY XUV: Transmission; (LH engine compartment), (8 cylinder)
- 2005 GTO: Transmission
- 2005 GRAND PRIX: Transmission; (lower air cleaner housing)
- 2005 ION: Transmission; (behind LH strut tower)
- 2005 LACROSSE: Transmission; (3.6L), (lower air cleaner housing)
- 2005 PURSUIT: Transmission; (LH strut tower)
- 2005 RAINIER: Transmission
- 2004-2005 RENDEZVOUS: Transmission; (3.6L), (air cleaner box)
- 2005 TRAILBLAZER EXT: Transmission; (LH engine compartment), (8 cylinder)
Frequently Asked Questions About Your New TCM
How does the VIN programming service work?
How does the VIN programming service work?
After you complete your purchase, you will need to provide us with your 17-digit Vehicle Identification Number (VIN). Our technicians use this number to access the official GM database and load the exact software calibration that your vehicle requires. This ensures perfect compatibility and performance when you install the part.
Do I need to perform any other procedures after installation?
No. Because the module arrives pre-programmed, there are no additional relearn procedures or programming steps required. The initial battery disconnect and reconnect during installation is all the system needs to initialize with the new module. It’s designed to be a true plug-and-play fix.
Where is the TCM located on my 2005 Saturn ION?
For the 2005 Saturn ION, the Transmission Control Module is located in the engine compartment, mounted behind the driver’s side (LH) strut tower.
Will this fix a U0100 ‘Lost Communication with TCM’ code?
Yes, in the vast majority of cases. A U0100 code indicates that other modules on the vehicle cannot communicate with the TCM. This is most often caused by an internal electronic failure within the TCM itself. Replacing the module is the standard and effective repair for this code, provided the wiring and connectors are intact.
What happens if I forget to provide my VIN?
We cannot ship your order without your VIN. The programming is an essential step to ensure the part works correctly in your vehicle. We will contact you via email after your purchase to request the VIN if it was not provided. This helps prevent you from receiving a part that won’t function.
