Restore Control and End Electrical Frustrations in Your GM Sedan
Are you chasing electrical gremlins in your 2005 Chevrolet Impala or Monte Carlo? Flickering interior lights, erratic power windows, a security light that won’t turn off, or strange behavior from your gauges are all classic signs of a failing Body Control Module (BCM). As the central command center for your vehicle’s body electronics, a faulty BCM can make driving a daily headache. This isn’t just an annoyance; it can affect critical systems. This direct-replacement BCM, part number 10377973 / 15224204, is the definitive solution to restore your car’s proper function and your peace of mind.
Case Study: The Ghost in the Impala
I remember a 2005 Impala that came into my shop a few years back. The owner was at his wit’s end. The radio would turn on and off by itself, the driver’s side power window worked only intermittently, and the anti-theft light would flash randomly, sometimes preventing the car from starting. He had already replaced the battery and checked fuses. After connecting my scan tool, I saw a storm of communication error codes (U-codes) pointing to the BCM. Instead of a single failed component, the entire network was unstable. Installing a VIN-programmed 2005 Impala BCM solved every single issue at once. It’s a perfect example of how this one module can be the root cause of many seemingly unrelated problems.
Is Your Vehicle Showing These Symptoms?
- ✔ Power windows, door locks, or mirrors operating erratically or not at all.
- ✔ Interior or exterior lights flickering, staying on, or not turning on.
- ✔ The security or anti-theft system light is illuminated, potentially causing a no-start condition.
- ✔ Inconsistent or non-functional instrument panel gauges.
- ✔ Diagnostic Trouble Codes (DTCs) related to body systems (B-codes) or communication errors (U-codes) are present.
- ✔ The horn sounds randomly or doesn’t work when pressed.
Your Straightforward BCM Installation Guide
Replacing the BCM is a manageable job for a confident DIYer. It’s typically located on the left side of the steering column, behind the lower dash panel.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- Access the Module: Remove the lower dash panel (knee bolster) below the steering wheel to gain access to the BCM.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old BCM. Note their orientation. Then, unbolt or unclip the module from its mounting bracket.
- Install the New BCM: Mount your new, pre-programmed BCM in the same location and securely reconnect all the electrical connectors.
- Reassemble and Reconnect: Reinstall the lower dash panel and reconnect the negative battery terminal.
- Perform Final Checks: Start the vehicle and test all body functions—lights, windows, locks, etc. Address any post-installation procedures as needed (see below).
Important Post-Installation Steps
Because this 2005 Impala BCM is the central hub for many systems, a couple of quick synchronization procedures may be required after installation:
- Airbag System Sync: If your airbag warning light is on after installation, a simple “Setup SDM Primary Key in BCM” procedure is needed. This requires a professional-grade scan tool to sync the new BCM with the airbag module (SDM) and clear the light.
- Brake Pedal Position Relearn: To ensure your brake lights and traction control work correctly, a brake pedal position sensor relearn might be necessary. This can often be done with a capable bidirectional scan tool.
Disclaimer: Always consult a factory service manual for your specific vehicle for detailed instructions.
Verified Fitment for Your Vehicle
This Body Control Module is a guaranteed fit for the following vehicles, provided they do not have the police package option:
- 2005 Chevrolet Impala – Body Control (BCM); (LH steering column)
- 2005 Chevrolet Monte Carlo – Body Control (BCM); (LH steering column)

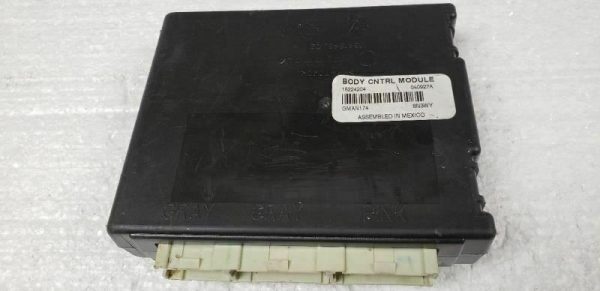

This module is a direct replacement for service numbers 15224204 and 10377973.
The VIN Programming Advantage
Don’t waste time and money at the dealership. We handle the critical programming for you before we ship. Simply provide your vehicle’s VIN at checkout, and we will flash the module with the latest GM software specific to your car. This ensures it works correctly right out of the box. Plus, with our no-core-charge policy, you can keep your old part without any extra fees or hassle.
Frequently Asked Questions
Do I need to do any programming myself?
No. We pre-program this 2005 Impala BCM to your car’s specific VIN before shipping. It arrives ready for installation.
What tools are needed for the post-installation procedures?
The Airbag System Sync and Brake Pedal Position Relearn require a professional-grade bidirectional scan tool. Many local repair shops can perform these quick procedures for you if needed.
Where is the BCM located on my 2005 Impala?
The Body Control Module is typically found attached to the left side of the steering column, accessible after removing the plastic panel below the steering wheel.
Is this part compatible with my Monte Carlo?
Yes, this BCM is a direct fit for the 2005 Chevrolet Monte Carlo (non-police package) as well as the 2005 Impala.
What is a core charge?
A core charge is a deposit you pay until you return your old part. We don’t require one for this module, so you can keep your old part with no extra cost or hassle.
