Restore Your Vehicle’s Transmission Performance
If you’re dealing with the frustrating and often unpredictable symptoms of a failing Transmission Control Module (TCM) in your 2005 GM vehicle, you know how disruptive it can be. Harsh, erratic shifting, a transmission that seems to have a mind of its own, or a persistent Check Engine Light can make driving a stressful experience. This isn’t just an inconvenience; it’s a critical failure that impacts your vehicle’s drivability and safety. As a technician with over two decades of experience, I’ve seen countless drivers spend a fortune chasing transmission issues, only to find the root cause was a faulty TCM. This module is the definitive solution to put those problems behind you.

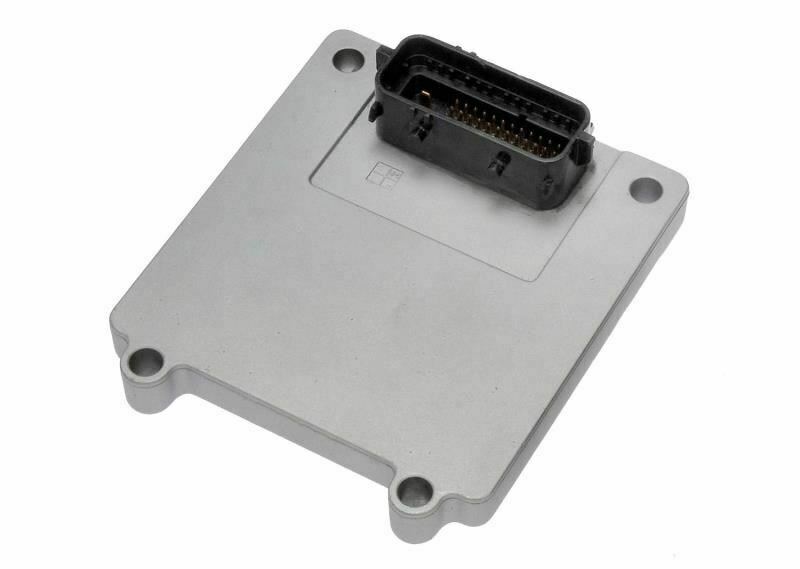

This is a direct-fit replacement TCM, part number 24234189, for a wide range of 2005 General Motors cars and SUVs. What sets this part apart is our professional programming service. Before we ship it, we flash the module with the very latest GM-certified software, specifically matched to your vehicle using your VIN. This means no expensive trips to the dealership for programming. It arrives at your door ready for a straightforward installation, restoring the precise, smooth shifting you expect from your vehicle. By correcting communication errors and solenoid commands, this module is the key to resolving many common transmission-related diagnostic trouble codes (DTCs).
From the Diagnostic Bay: The Ghost in the Machine
I remember a 2005 Envoy that came into the shop with a classic complaint: “My transmission is shot.” The owner was convinced he needed a full rebuild. It was slamming into gear from a stop and sometimes refusing to shift out of 2nd. The codes were all over the place—solenoid performance, lost communication, the works. Instead of pulling the transmission, we checked the basics. The fluid was fine, and the wiring looked good. The problem? The original TCM was failing intermittently, sending garbage data to the transmission. We installed a VIN-programmed module just like this one, performed the relearn procedure, and the Envoy drove like it just left the factory. The owner saved thousands, and it all came down to replacing the brain, not the brawn, of the transmission.
Is Your Vehicle Showing These Symptoms of a Failing TCM?
- ✔ Unpredictable or harsh shifting between gears
- ✔ Getting stuck in one gear (limp mode)
- ✔ Check Engine Light illuminated with transmission-related codes
- ✔ Common DTCs like P0700 (Transmission Control System Malfunction), P0753 (Shift Solenoid ‘A’ Electrical), or U0101 (Lost Communication With TCM)
- ✔ A noticeable delay when shifting from Park to Drive or Reverse
- ✔ Poor fuel economy due to inefficient shifting patterns
A Straightforward Guide to Your TCM Installation
Installing your new 2005 Envoy TCM is a manageable job for a confident DIYer or a quick task for any professional. The specific location can vary by model, but the general process is similar. For the 2005 Envoy, it’s typically found in the left-hand (driver’s side) engine compartment.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- Locate the TCM: On the 2005 Envoy, find the TCM mounted in the LH engine compartment. On other models like the Cobalt or Ion, it may be behind the LH strut tower. Consult a service manual for your specific vehicle if you are unsure.
- Disconnect Connectors: Carefully unclip and remove the electrical wiring harnesses connected to the old module. These connectors have locking tabs that must be released to prevent damage.
- Remove the Old Module: Unbolt the faulty TCM from its mounting bracket. Keep the hardware, as you may need to reuse it.
- Install the New Module: Mount your new, pre-programmed TCM onto the bracket and secure it with the original hardware.
- Reconnect Everything: Firmly plug the wiring harnesses back into the new module until they click into place. Reconnect the negative battery terminal.
- Perform Relearn (If Necessary): While the module is pre-programmed, some vehicles benefit from a transmission adaptive pressure relearn procedure, which can be done with a capable scan tool to ensure the absolute smoothest shifting.
Verified Vehicle Compatibility List
This module is a direct replacement for a variety of original part numbers, including 24223112, 24226863, 24233595, 24234189, and 24239427. It is guaranteed to fit the following vehicles and configurations:
- 2005 Allure: (Located in lower air cleaner housing)
- 2005 Cobalt: (Located behind LH strut tower)
- 2005 Corvette: (Located on LH frame rail)
- 2005 Envoy / Envoy XL / Envoy XUV: (8 cylinder, located in LH engine compartment)
- 2005 Grand Prix: (Located in lower air cleaner housing)
- 2005 GTO
- 2005 Ion: (Located behind LH strut tower)
- 2005 LaCrosse: (3.6L, located in lower air cleaner housing)
- 2005 Pursuit: (Located behind LH strut tower)
- 2005 Rainier
- 2004-2005 Rendezvous: (3.6L, located in air cleaner box)
- 2005 Trailblazer EXT: (8 cylinder, located in LH engine compartment)
Order your pre-programmed 2005 Envoy TCM today and restore the integrity and performance of your vehicle’s automatic transmission with a reliable, ready-to-install solution.
Frequently Asked Questions
What is a TCM and what does it do?
The Transmission Control Module (TCM) is a computer that acts as the “brain” for your automatic transmission. It collects data from various sensors on the vehicle and uses it to control shift solenoids, fluid pressure, and torque converter lockup, ensuring smooth and efficient gear changes.
Why do you need my VIN to program the module?
Your Vehicle Identification Number (VIN) allows us to load the exact, correct software calibration from GM for your specific vehicle. This includes all factory updates and ensures the TCM communicates perfectly with your engine computer and other systems, guaranteeing proper function without any additional programming.
Is this part truly “plug-and-play”?
Yes. Because we program the module to your VIN before shipping, it is ready to be installed right out of the box. You will not need to take your vehicle to a dealer for software flashing, which saves you significant time and money.
Will this fix my transmission’s harsh shifting?
In a vast majority of cases, a faulty TCM is the direct cause of harsh or erratic shifting, delayed engagement, and other transmission issues. Replacing a failing module with this pre-programmed unit is the correct repair for these specific electronic failures.
Where is the TCM located on my 2005 Envoy?
For the 2005 GMC Envoy equipped with an 8-cylinder engine, the TCM is located in the engine compartment on the driver’s side (LH side).
What if my original part number is slightly different but my vehicle is on the list?
This module replaces a range of compatible part numbers, including 24223112, 24226863, 24233595, 24239427, and others. As long as your vehicle model and year are on our compatibility list, this VIN-programmed module is the correct replacement.
