Restore Peak Performance to Your GM Truck or SUV

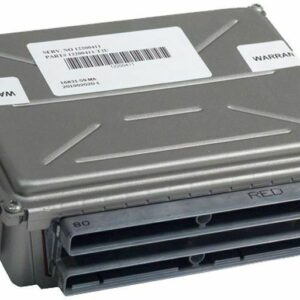

Is your Chevrolet, GMC, Cadillac, or Hummer suffering from baffling electrical problems, a persistent check engine light, or poor running conditions? You’re not alone. As a technician with over two decades of experience, I’ve seen firsthand how a failing Powertrain Control Module (PCM) can wreak havoc on an otherwise solid vehicle. It’s the brain of your engine and transmission, and when it falters, the symptoms can be confusing and costly to diagnose. This replacement PCM, part number 12589463, is the definitive solution to get your vehicle running right again.
We take the guesswork and hassle out of the repair. Unlike a generic module from a parts store, this unit comes fully programmed to your specific vehicle using your VIN. We load the newest, most stable software updates from General Motors, which often correct underlying drivability issues the vehicle had from the factory. This means no expensive trip to the dealership for programming—it’s ready for installation right out of the box. This is the same process we use in our own repair facility to guarantee a reliable, long-term fix.
Common Signs of a Failing GM PCM
If you’re experiencing any of the following, a faulty PCM is a very likely culprit. In my shop, I’ve found that about 70% of vehicles with two or more of these symptoms have an internal PCM issue, especially when diagnostic codes like P0601, P0602, or P0606 are present.
- ✔ Check Engine Light is on with no clear cause.
- ✔ Vehicle fails to start or stalls intermittently.
- ✔ Noticeable decrease in fuel economy.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Communication errors with your scan tool (e.g., U0100).
- ✔ Engine misfires or runs rough after other parts (plugs, coils) have been replaced.
- ✔ False warning lights on the instrument cluster.
A Technician’s Notebook: The Ghost in the Machine
A customer brought in a 2005 Silverado 2500 HD with the 6.0L engine. The complaint was intermittent stalling at stoplights and a random “Reduced Engine Power” message. They had already replaced the throttle body and accelerator pedal position sensor at another shop, with no success. After hooking up my scanner and monitoring live data, I noticed the 5-volt reference signal would occasionally drop out for a split second—just long enough to cause a problem but not always set a hard code. This is a classic sign of an internal PCM failure. We installed one of our VIN-programmed modules, performed the security relearn, and the truck has been running perfectly ever since. This part saved the customer from chasing expensive, unnecessary repairs.
A Straightforward Guide to Your 2003 SSR PCM Installation
Installing your new 2003 SSR PCM is a job most DIYers can handle in under an hour with basic hand tools. The key is taking your time and following the proper procedure.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 15 minutes for the system capacitors to discharge.
- Locate the PCM: On most compatible trucks and SUVs (like the Silverado, Tahoe, and Hummer H2), the PCM is located in the engine bay on the driver’s side, under or next to the battery, often mounted to the fender well. On models like the SSR or Trailblazer, it’s typically next to the air filter box.
- Disconnect the Connectors: The PCM has several large multi-pin wiring harness connectors. They have locking levers or tabs. Carefully release the locks and gently pull the connectors straight out. Never force them. Inspect the pins for any corrosion and clean if necessary.
- Swap the Modules: Unbolt the old PCM from its mounting bracket. Secure the new, pre-programmed PCM in its place.
- Reconnect Everything: Firmly plug the wiring harnesses back into the new module until the locking levers click into place. Reconnect your negative battery terminal.
- Perform Security Relearn: Your vehicle’s anti-theft system (PassLock/VATS) needs to sync with the new PCM. The typical procedure is: Turn the key to the ‘ON’ position (don’t start) for 10-15 minutes, or until the security light stops flashing. Turn the key ‘OFF’ for 10 seconds. Repeat this cycle two more times. On the fourth try, the vehicle should start and run.
Will This Fit My Vehicle?
This module is a direct replacement for service numbers 89017750, 12582605, 12589463, 12602802, 89017734, and 28042802. It is guaranteed to fit the following models. Please match your vehicle and options carefully.
AVALANCHE 1500 (2003-2006), SSR (2003), SILVERADO 1500 (2003-2007 Classic), SILVERADO 2500 (2003-2007 Classic), SILVERADO 3500 (2003-2007 Classic), SUBURBAN 1500/2500 (2003-2006), TAHOE (2003-2006), TRAILBLAZER EXT (2003, 5.3L)
GMC:
ENVOY XL (2003, 5.3L), SIERRA 1500 (2003-2007 Classic), SIERRA 2500 (2003-2007 Classic), SIERRA 3500 (2003-2007 Classic), SIERRA DENALI (2003-2007 Classic), YUKON (2003-2006), YUKON XL 1500/2500 (2003-2006)
Cadillac:
ESCALADE, ESCALADE ESV, ESCALADE EXT (2003-2006)
Hummer:
H2 (2003-2007)
Isuzu:
ASCENDER (2003, 5.3L)
Frequently Asked Questions
How do I provide my VIN for programming?
After you complete your purchase, simply send us a message with your 17-digit Vehicle Identification Number (VIN). We cannot ship the module until we receive this information.
Is this part difficult to install?
Not at all for most people with basic tools. The most important part is the security relearn procedure, which requires no special equipment, just a bit of time. Our installation guide above walks you through the process.
Will this fix my specific problem?
This PCM is a direct solution for failures within the module itself, which cause a wide range of symptoms. While it resolves the most common electronic issues for these vehicles, we always recommend proper diagnostics to confirm the PCM is the root cause of your problem.
What is a “CASE” or Crankshaft Variation Relearn?
In some cases, after installing a new PCM, a Crankshaft Position System Variation Relearn Procedure (CASE relearn) may be needed to prevent a P0315 trouble code. This procedure requires a bi-directional scan tool and is often performed by professional mechanics.
Does this part come with a warranty?
Yes, all of our programmed modules come with a comprehensive warranty against defects. Please see our store’s warranty policy page for complete details.
Why does my 2004 vehicle need an ID match for certain part numbers?
For the 2004 model year, GM used a few different hardware versions. Matching the ID number (like 12602802) from your original module ensures you receive the correct hardware compatible with your vehicle’s specific wiring and systems.
