If you’re dealing with a 2003-2007 Silverado 1500 that’s running rough, stalling unexpectedly, or flashing a persistent Check Engine Light, a failing Powertrain Control Module (PCM) is often the culprit. As the central computer for your engine, its health is critical for performance, fuel economy, and reliability. This isn’t just a replacement part; it’s a complete, ready-to-install solution designed to get your truck back to factory-spec operation without a trip to the dealership for programming.
We take the guesswork and hassle out of the repair. Simply provide us with your vehicle’s VIN during checkout, and our technicians will flash this PCM with the latest, most stable software updates directly from GM. This ensures all parameters for your specific engine, transmission, and emissions equipment are perfectly calibrated. It’s the definitive fix for a wide range of frustrating electronic issues.
From the Diagnostic Bay: The Ghost in the Machine
I remember a 2006 Sierra 1500 that came into my shop with the most frustrating problem: an intermittent no-start. The owner had replaced the battery, starter, and even the crank sensor, but the truck would randomly refuse to crank. It threw no consistent codes. After hours of tracing wires, we hooked up a scope to the PCM’s main power and ground circuits. We discovered that under certain temperature conditions, the PCM’s internal voltage regulator would fail, causing it to lose communication with the BCM and immobilizer system. It was a ghost that only appeared when it wanted to. Swapping in a properly programmed PCM like this one solved the problem instantly. It’s a reminder that with modern vehicles, the computer itself can be the root mechanical-seeming failure.
Is Your GM Truck Showing These Signs of PCM Failure?
A failing computer can cause a cascade of confusing symptoms. If you’re experiencing any of the following, a faulty PCM is a likely cause. Look out for these common diagnostic trouble codes (DTCs) on your scan tool as well.
- ✔ Unexplained Check Engine Light illumination
- ✔ Engine stalling or cutting out while driving
- ✔ Harsh or erratic automatic transmission shifting
- ✔ A complete no-start condition where the engine won’t crank
- ✔ Noticeable drop in fuel economy
- ✔ Failure to communicate with a diagnostic scan tool
- ✔ Common DTCs: P0601 (Internal Control Module Memory Check Sum Error), P0606 (PCM Processor Fault), or U0100 (Lost Communication With ECM/PCM)
A Straightforward Guide to Your PCM Installation
Replacing the PCM on these GM trucks is a job most DIYers can handle in their own driveway with basic tools. This module is typically located in the engine bay on the driver’s side, under or near the battery.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent any accidental reconnection.
- Locate the PCM: Find the existing module. On most trucks like the Silverado and Sierra, it’s under the battery tray. You may need to remove the battery to access it.
- Disconnect the Harnesses: Carefully disengage the locking tabs on the electrical connectors and pull them straight out from the module. There are typically two or three large connectors. Do not force them.
- Remove the Old Module: Unbolt the PCM from its mounting bracket. Keep the hardware, as you may need it for the new installation.
- Install the New PCM: Mount your new, pre-programmed PCM onto the bracket and reconnect the electrical harnesses. Ensure they click securely into place.
- Reconnect Battery: Re-install the battery (if removed) and reconnect the negative battery terminal.
- Perform Security Relearn: You will likely need to perform a simple security relearn procedure. This typically involves turning the key to the ‘ON’ position for 10-15 minutes, then off, and repeating two more times. This allows the new PCM to sync with your vehicle’s anti-theft system.
Verified Vehicle Compatibility List

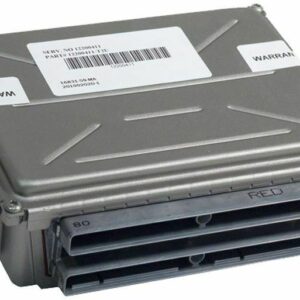

This PCM, part number 12589463, is a direct replacement for service numbers 89017750, 12582605, 12602802, 89017734, and 28042802. It is guaranteed to fit the following vehicles. Please match your model and options carefully.
Note: For 2004 models, verify ID 12602802 if specified. For 2007 models, fits ‘Classic’ style with creased door skin only. Excludes hybrid options and 4.3L engines where noted.
Frequently Asked Questions
Frequently Asked Questions
Why do you need my VIN?
Your Vehicle Identification Number (VIN) is essential. It allows us to access the exact GM factory calibration file for your truck’s specific engine, transmission, and options. This ensures the 2003-2007 Silverado 1500 PCM works perfectly right out of the box.
