Restore Peak Performance to Your GM Truck or SUV

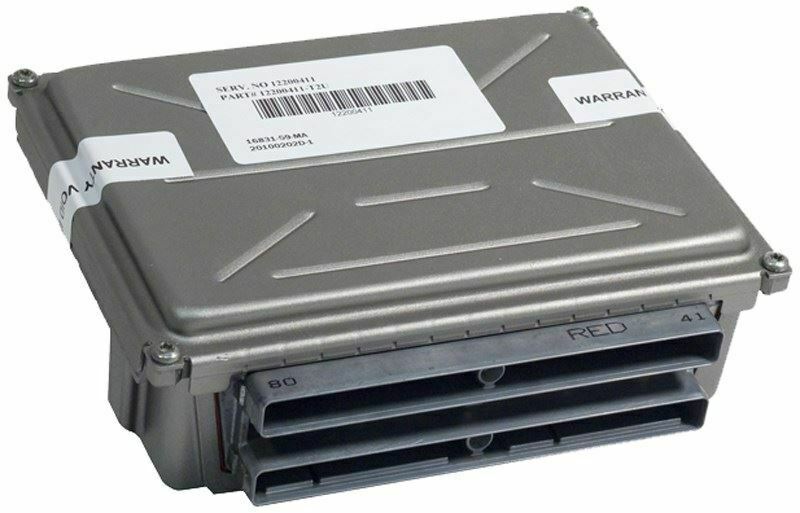

Is your Escalade, Sierra, or Tahoe acting possessed? Chasing down intermittent electrical gremlins, a persistent Check Engine Light, or a frustrating no-start condition can make you want to pull your hair out. As a technician with over two decades of diagnostic experience, I’ve seen countless vehicles sidelined by a failing Powertrain Control Module (PCM). This isn’t just a part; it’s the central computer for your engine and transmission, and when it falters, your entire vehicle suffers. This replacement 2003-2006 Escalade EXT PCM is the definitive solution to get your truck back to running the way it was designed.
What sets this module apart is our commitment to a seamless repair. We don’t just ship you a part; we provide a ready-to-install solution. Before this PCM leaves our facility, it is professionally flashed with the latest official GM software updates, specifically programmed to your vehicle’s unique Vehicle Identification Number (VIN). This critical step ensures perfect communication between all onboard systems and eliminates the need for an expensive trip to the dealership for programming.
A Technician’s Notebook: The Intermittent No-Start Nightmare
I once had a 2005 Silverado 1500 in my bay that was driving the owner crazy. It would start fine for a week, then refuse to crank for two days, with no rhyme or reason. The battery was new, the starter checked out, and there were no consistent trouble codes—just a generic U0100 ‘Lost Communication with ECM/PCM’ that would pop up occasionally. After hours of tracing wires and checking grounds, we swapped in a known-good PCM. The problem vanished instantly. The original module’s internal processor was failing intermittently under certain temperature conditions. This pre-programmed PCM is the exact fix for these hard-to-diagnose issues, saving you hours of frustration and diagnostic fees.
Is Your Truck Exhibiting These Symptoms?
A faulty PCM can manifest in numerous ways. If you’re experiencing any of the following, a failing module is a likely culprit:
- âś” Check Engine Light is on with codes like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (ECM/PCM Processor Fault).
- âś” Unexplained stalling or rough idling.
- âś” The engine cranks but refuses to start.
- âś” Harsh or erratic automatic transmission shifting.
- âś” A significant, sudden drop in fuel economy.
- âś” Communication errors with your scan tool.
- âś” Issues with other systems, like the anti-theft system engaging randomly.
A Straightforward Guide to Installation
Installing your new 2003-2006 Escalade EXT PCM is a manageable job for a confident DIYer. The key is taking your time and following the proper procedure. While locations vary slightly, it’s typically found in the engine bay on the driver’s side, near the battery or air filter box.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent any accidental power surges.
- Locate the PCM: On most of these GM trucks and SUVs, it’s under a plastic cover near the battery. You may need to remove the battery for better access.
- Disconnect the Harnesses: The PCM has several large electrical connectors. Each has a locking tab or lever. Carefully release the locks and gently pull the connectors straight out. Never force them.
- Remove the Old Module: Unbolt the PCM from its mounting bracket. Keep the hardware, as you’ll need it for the new unit.
- Install the New PCM: Mount the new module securely onto the bracket and reconnect the electrical harnesses. Ensure they click firmly into place. Reinstall the battery if you removed it.
- Reconnect the Battery: Attach the negative battery terminal.
- Perform Security Relearn (CRITICAL STEP): Your vehicle’s anti-theft system (PassLock/PassKey) needs to sync with the new PCM. The standard procedure is: Turn the key to the ‘ON’ position (don’t start) for 10-15 minutes, or until the security light stops flashing and turns solid or goes off. Turn the key ‘OFF’ for 10 seconds. Repeat this cycle two more times (for a total of three 10-minute cycles). The vehicle should then start and run normally.
Guaranteed Fitment for Your GM Vehicle
This module, part number 28042802, is a direct replacement for service numbers 89017750, 12582605, 12589463, 12602802, and 89017734. It is verified to fit the following models:
Frequently Asked Questions
Do I really need to provide my VIN?
Yes, absolutely. Providing your VIN is essential. We use it to load the precise, correct software for your vehicle’s specific options and to install the latest updates from GM, ensuring a true plug-and-play experience.
What is the security relearn procedure?
It’s a required process that allows your vehicle’s anti-theft system to recognize the new PCM. It typically involves cycling the ignition key and waiting for about 30 minutes. We’ve detailed the steps in the installation guide above. It requires no special tools.
Will this fix my transmission shifting problems?
In many cases, yes. The PCM also controls transmission functions, including shift points and line pressure. If your shifting issues are caused by a faulty module, this replacement will resolve them by restoring proper communication and control.
Is this a brand new part?
This is a high-quality, tested, and verified replacement part that meets or exceeds original equipment specifications. Each unit is inspected and programmed in-house to ensure reliability and performance.
What if I have questions during installation?
Our team of experienced automotive professionals is here to help. If you run into any issues or have questions about the process, don’t hesitate to contact us. We’re committed to ensuring your repair is a success.
