Restore Your SUV’s Brain and Get Back on the Road with Confidence
Is your 2003-2005 GMC Envoy XL, Trailblazer, or other GMT360 platform vehicle suffering from baffling electrical gremlins? As a technician with over two decades of experience under the hood, I’ve seen firsthand how a failing Powertrain Control Module (PCM) can cause a cascade of frustrating issues. From a stubborn no-start condition and erratic idling to poor fuel economy and a persistent Check Engine Light, a faulty PCM can make your reliable SUV feel unpredictable. This isn’t just an inconvenience; it’s a core component failure that needs a solid, dependable solution.

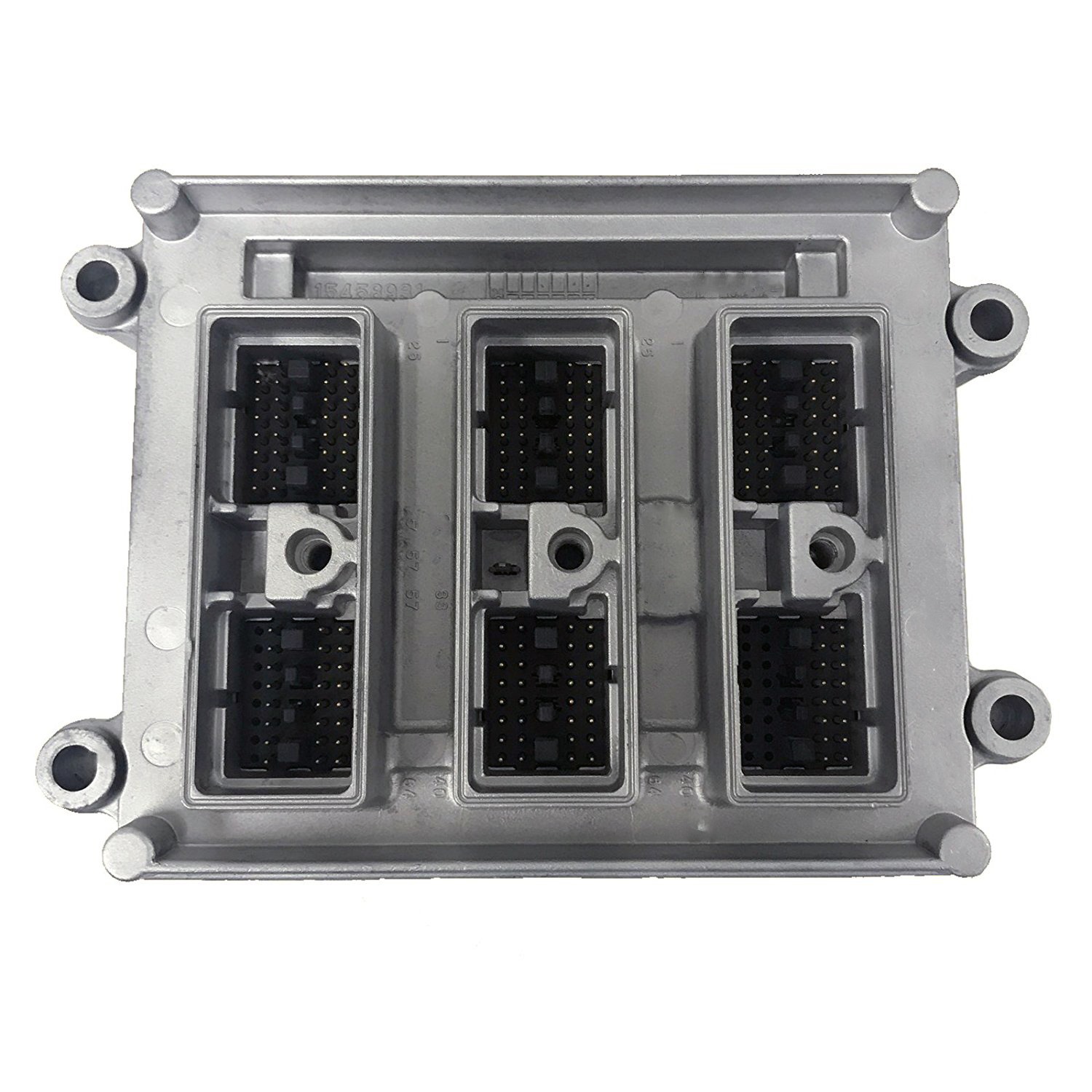

This is the definitive fix. We offer a direct-fit replacement PCM, part number 12577955, that arrives at your door fully programmed to your vehicle’s specific Vehicle Identification Number (VIN). We install the latest stable software updates from GM, which often resolve underlying issues the original factory programming had. This means you’re not just replacing a part; you’re getting a component with improved logic to restore proper engine and transmission function. Getting your 2003-2005 Envoy XL PCM from us eliminates the expensive trip to the dealership for programming, saving you time and money.
A Technician’s Notebook: The Intermittent Stall No One Could Solve
I remember a 2004 Trailblazer (which uses the same PCM as the Envoy) that came into my bay after visiting two other shops. The owner was frustrated with an intermittent stalling issue that only happened after 20 minutes of driving. The other shops had replaced the fuel pump and cleaned the throttle body, but the problem persisted. No hard codes were stored, just a history of communication loss codes. After hooking up my scan tool and monitoring live data, I noticed the 5-volt reference signal to the sensors would flicker and drop out just before the engine quit. This pointed directly to an internal failure in the PCM. We installed a VIN-programmed module just like this one, and the truck ran perfectly. It’s a classic example of how a failing PCM can mimic other component failures.
Common Signs of a Failing PCM
If you’re experiencing any of the following, a faulty PCM could be the culprit. A failing module can often trigger diagnostic trouble codes (DTCs) such as P0601, P0602, P0606, or various U-codes for communication loss.
- âś” Engine stalling or refusing to start
- âś” Drastic decrease in fuel efficiency
- âś” Rough or erratic engine idle
- âś” Transmission shifting problems or harsh shifts
- âś” Check Engine Light is illuminated with internal processor codes
- âś” Failure to communicate with a diagnostic scan tool
A Straightforward Guide to Your PCM Installation
Replacing your 2003-2005 Envoy XL PCM is a manageable job for a DIYer with basic tools. Our pre-programmed module makes it a true plug-and-play process.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the PCM: On most GMT360 vehicles like the Envoy and Trailblazer, the PCM is located on the driver’s side of the engine bay, near the fuse box.
- Disconnect Harnesses: Carefully release the locking tabs on the electrical connectors and pull them straight out from the module. Avoid pulling on the wires themselves.
- Remove the Old Module: Unbolt the PCM from its mounting bracket. It’s typically held in by a few bolts.
- Install the New PCM: Mount your new, pre-programmed PCM onto the bracket and secure the bolts.
- Reconnect Everything: Firmly plug the electrical harnesses back into the new module until they click into place. Reconnect the negative battery terminal.
- Perform Security Relearn: In many cases, you will need to perform a simple security relearn procedure. This typically involves turning the key to the ‘ON’ position for 10-15 minutes, then ‘OFF’, and repeating two more times. This allows the new PCM to sync with your vehicle’s anti-theft system. Consult your vehicle’s service information for the exact procedure.
Verified Vehicle Compatibility
This module is a direct replacement for part numbers 12573576, 12574976, 12577955, 12584593, 16255757, and 19210065. It is guaranteed to fit the following models with the 4.2L I6 engine unless otherwise noted:
- âś” 2003-2005 GMC Envoy
- âś” 2003-2005 GMC Envoy XL
- âś” 2004-2005 GMC Envoy XUV
- âś” 2003-2005 Chevrolet Trailblazer
- âś” 2003-2005 Chevrolet Trailblazer EXT
- âś” 2004-2005 Buick Rainier
- âś” 2003-2004 Oldsmobile Bravada
- âś” 2003-2005 Isuzu Ascender
- âś” 2005-2006 Saab 9-7X (4.2L 6-Cylinder)
Important: After purchase, you must provide us with your VIN. This is essential for us to program the 2003-2005 Envoy XL PCM correctly for your vehicle’s specific configuration before we ship it.
Frequently Asked Questions
Frequently Asked Questions
Do I need to do any programming myself?
No. We handle all the programming before shipping. We flash the module with the latest GM software using the VIN you provide, so it’s ready for installation right out of the box.
What is a security relearn and is it difficult?
The security relearn (or anti-theft relearn) syncs the new PCM with your vehicle’s security system. It’s a simple, tool-free procedure that usually takes about 30 minutes and involves cycling the ignition key. We can provide general instructions upon request.
Will this fix my specific problem?
This PCM is a direct solution for failures within the module itself, which cause symptoms like stalling, no-start conditions, and internal processor error codes (e.g., P0601). While it resolves many issues, it’s important to ensure your vehicle has been properly diagnosed, as other faulty sensors or wiring can sometimes mimic PCM failure.
Where do I find my VIN?
Your 17-digit Vehicle Identification Number (VIN) can be found on your vehicle’s registration, insurance card, or on a metal plate on the driver’s side of the dashboard, visible through the windshield.
Is this a used part?
This is a high-quality, inspected, and tested recycled OEM part that has been verified to be fully functional before being programmed with fresh, updated software for your vehicle.
