Restore Peak Performance and Reliability to Your GM SUV
If you’re dealing with frustrating and unpredictable issues like a persistent Check Engine Light, rough idling, stalling, or erratic transmission shifting in your GMC Envoy, Chevy Trailblazer, or other GM SUV, a failing Powertrain Control Module (PCM) is often the culprit. As the central computer of your vehicle, the PCM manages everything from fuel mixture and ignition timing to transmission shift points. When it starts to fail, it can create a cascade of problems that are often misdiagnosed, leading to wasted time and money on unnecessary parts.
I’ve spent over two decades diagnosing these exact vehicles, and I can tell you that a faulty PCM can mimic a dozen other component failures. This isn’t just a replacement part; it’s a definitive solution. We take the guesswork and hassle out of the repair by pre-programming this module specifically for your vehicle using your VIN. It arrives loaded with the latest factory software from GM, ensuring all parameters are set for optimal engine and transmission performance. This eliminates the need for an expensive trip to the dealership for programming.
From the Diagnostic Bay
A customer brought in a 2004 Trailblazer last year that was a real head-scratcher. It would stall intermittently at stoplights, but threw no consistent codes. The owner had already replaced the throttle body and a camshaft position sensor with no luck. After connecting my scope and monitoring the 5-volt reference signals from the PCM, I saw erratic voltage drops just before a stall. It wasn’t a sensor failing; it was the PCM’s internal power supply. We installed one of our VIN-programmed PCMs, performed the security relearn, and the truck has been running perfectly ever since. It’s a classic case where the root cause was the vehicle’s brain, not the parts it controls.
Is Your SUV Showing These Symptoms?
A failing PCM can manifest in many ways. If you’re experiencing any of the following, this module is the likely solution, especially if you see the associated Diagnostic Trouble Codes (DTCs).
- âś” Persistent Check Engine Light (CEL)
- âś” Engine cranks but will not start
- âś” Rough or unstable idle
- âś” Unexplained stalling or hesitation
- âś” Poor fuel economy
- âś” Harsh or incorrect transmission shifting
- âś” Communication error codes, such as U0100
- âś” Internal module failure codes, like P0601, P0602, or P0606
A Straightforward Guide to Installation
Installing your new 2003-2005 Envoy XL PCM is a job most DIYers can handle in their own driveway. No specialized computer equipment is needed, but you will need to perform a security relearn procedure after installation, which only requires your vehicle’s key.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post.

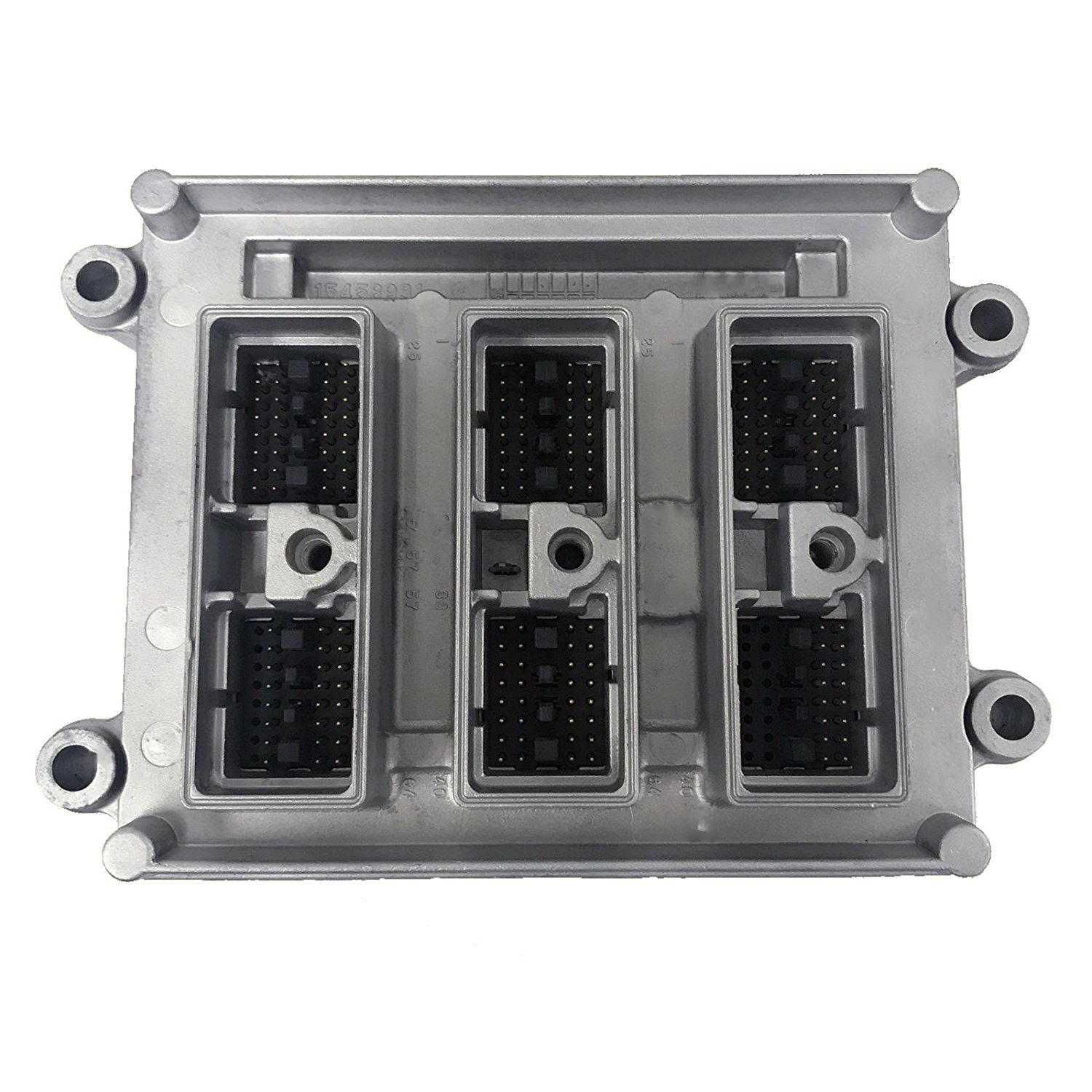

- Locate the PCM: On most of these models, the PCM is located in the engine bay on the driver’s side, near the air filter box. It’s a silver metal box with several large electrical connectors.
- Disconnect and Remove: Carefully unplug the electrical connectors. They have locking tabs that need to be released. Once disconnected, unbolt the module from its mounting bracket.
- Install the New Module: Bolt the new, pre-programmed PCM into place and securely reconnect all electrical connectors. Ensure they click into place.
- Reconnect Battery: Re-attach the negative battery terminal.
- Perform Security Relearn: This step is critical. The GM Passlock/Passkey system needs to sync with the new PCM. The procedure typically involves turning the key to the ‘ON’ position for 10-15 minutes, then ‘OFF’ for 10 seconds, and repeating this cycle three times. Your vehicle’s service manual will have the exact steps.
Verified Vehicle Compatibility
This module is a direct-fit replacement for a wide range of GM SUVs equipped with the 4.2L inline 6-cylinder engine. It is compatible with part numbers 12573576, 12574976, 12577955, 12584593, 16255757, and 19210065. Please verify your vehicle is on this list:
- Buick Rainier: 2004-2005 (4.2L)
- Chevrolet Trailblazer: 2003-2005
- Chevrolet Trailblazer EXT: 2003-2005 (4.2L)
- GMC Envoy: 2003-2005
- GMC Envoy XL: 2003-2005 (4.2L)
- GMC Envoy XUV: 2004-2005 (4.2L)
- Isuzu Ascender: 2003-2005 (4.2L)
- Oldsmobile Bravada: 2003-2004
- Saab 9-7x: 2005-2006 (6 Cylinder)
Ordering this 2003-2005 Envoy XL PCM is your first step toward a reliable and smooth-running vehicle. Just provide your VIN at checkout, and we’ll handle the rest.
Frequently Asked Questions
Why do you need my VIN?
Your Vehicle Identification Number (VIN) allows us to program the PCM with the exact software and calibrations for your vehicle’s specific options, engine, and transmission. This ensures perfect compatibility and function right out of the box.
Is this part difficult to install myself?
No, the physical installation is straightforward for anyone with basic tools. It involves unbolting the old module and plugging in the new one. The only additional step is a simple security relearn procedure that you can do with just your key.
Will this fix my check engine light?
If the check engine light is caused by an internal PCM failure (like codes P0601-P0606) or a fault the PCM is unable to correctly process, then yes, this will resolve the issue. It’s crucial to ensure other sensors or wiring are not the root cause.
What is a PCM?
The Powertrain Control Module (PCM) is your vehicle’s main computer. It controls all aspects of the engine and transmission to ensure your vehicle runs efficiently and smoothly. It’s often called the ‘brain’ of the car.
Do I need any special tools for the security relearn?
No special tools are required. The GM security relearn procedure, also known as the Passlock relearn, can be done using only your vehicle’s ignition key and about 30 minutes of time. We can provide instructions if needed.
