Restore Your Truck’s Performance and Reliability
Is your 2002 Trailblazer, Envoy, or Bravada giving you headaches? If you’re dealing with frustrating issues like stalling, a persistent check engine light, rough idling, or a complete no-start condition, a failing Powertrain Control Module (PCM) is often the culprit. As the ‘brain’ of your vehicle’s engine and transmission, a faulty PCM can cause a wide range of confusing electrical and performance problems. In my 20+ years of diagnostic work, I’ve seen firsthand how a failing computer can make a perfectly good truck feel unreliable. This replacement PCM is the definitive solution, designed to restore your vehicle’s original performance and get you back on the road with confidence.
We take the guesswork and extra cost out of the repair. Unlike a generic part from a salvage yard, this module comes fully programmed with the latest official GM software updates. All we need is your vehicle’s VIN during checkout. Our technicians will flash the computer specifically for your truck’s configuration. This means no expensive trips to the dealership for programming—it’s ready for installation right out of the box. This is the most direct and effective way to fix issues stemming from a faulty 2002 Trailblazer PCM.
Case Study: A Tricky Diagnosis
A customer brought in a 2002 GMC Envoy XL with a complaint that stumped two other shops: it would randomly refuse to start, but only after it was warm. When it did run, it sometimes had a harsh 1-2 shift. There were no consistent trouble codes, just a generic U-series communication code that would pop up now and then. We checked all the usual suspects—battery, grounds, crank sensor. Everything seemed fine. On a hunch, I monitored the live data stream from the PCM during a test drive. I noticed the processor temperature reading would spike erratically just before the shifting issue occurred. The internal processor was failing under heat soak. We installed a VIN-programmed PCM, and the problem was solved instantly. It’s a classic example of how a failing computer can create phantom issues that are otherwise impossible to trace.
Is Your Truck Showing These Symptoms?
A failing PCM can manifest in many ways. If you’re experiencing any of the following, it’s a strong indicator that your engine computer needs replacement:
- ✔ Check Engine Light is on with codes like P0601, P0606, or other internal processor faults.
- ✔ The engine cranks but refuses to start.
- ✔ Unexplained stalling, especially when coming to a stop or at idle.
- ✔ Poor fuel economy and noticeable loss of power.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Communication errors when trying to use an OBD2 scan tool.
- ✔ Failure to pass an emissions or smog test.
A Straightforward Guide to Installation
Replacing your 2002 Trailblazer PCM is a job most DIYers can handle with basic tools. Following these steps will ensure a smooth installation.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent any accidental power surges.
- Locate the PCM: On the 2002 Trailblazer and its sister platforms, the PCM is located in the engine bay, on the driver’s side, near the firewall and fuse box.
- Disconnect the Connectors: Carefully unlatch and remove the electrical wiring harness connectors from the old module. Be gentle, as the plastic clips can become brittle over time.
- Remove the Old Module: Unbolt the PCM from its mounting bracket. There are typically a few bolts holding it in place.
- Install the New PCM: Mount your new, pre-programmed PCM onto the bracket and securely fasten the bolts.
- Reconnect Everything: Plug the wiring harness connectors firmly into the new module until they click into place. Reconnect your vehicle’s negative battery terminal.
- Final Steps: In some cases, a security relearn procedure may be necessary. This can typically be done by turning the key to the ‘ON’ position for 10-15 minutes, then off, and repeating two more times before starting the engine.
Verified Vehicle Compatibility

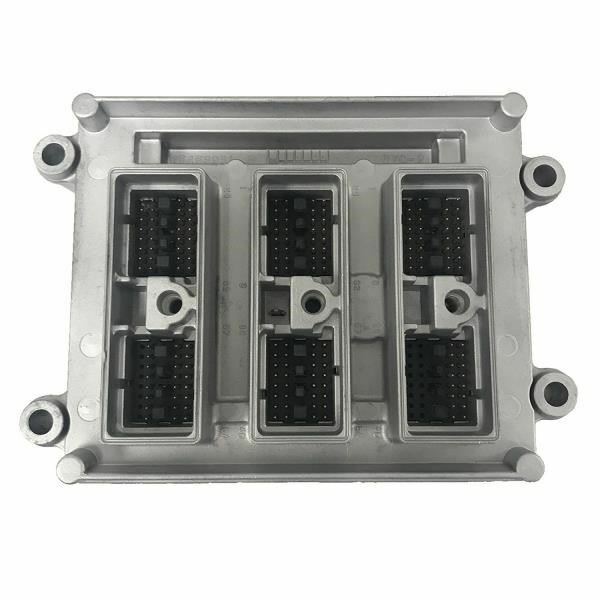

This module is a direct-fit replacement for the original electronic control module located on the driver’s side of the engine compartment. It is guaranteed to fit the following vehicles:
- ✔ 2002 Oldsmobile Bravada
- ✔ 2002 Chevrolet Trailblazer
- ✔ 2002 Chevrolet Trailblazer EXT
- ✔ 2002 GMC Envoy
- ✔ 2002 GMC Envoy XL
This unit replaces part numbers: 19210066, 12571178, 12576463, 16255240, DLDA, YBLR, YBRY, YBZP. Verifying one of these numbers on your original part ensures compatibility.
Frequently Asked Questions About the 2002 Trailblazer PCM
Do I need to do any programming myself?
Do I need to do any programming myself?
No. We handle all the programming for you before shipment. Simply provide your vehicle’s 17-digit VIN when you order, and the module will arrive ready to install with the latest GM software for your specific vehicle.
What is a VIN and where do I find it?
The VIN (Vehicle Identification Number) is a unique 17-digit code for your truck. You can find it on your vehicle’s registration, insurance card, or on a small plate on the driver’s side of the dashboard, visible through the windshield.
Will this fix my check engine light?
If the check engine light is caused by an internal failure of the PCM (like codes P0601 or P0606), then yes, this part will resolve the issue. However, you should always diagnose the trouble codes to ensure the problem isn’t a faulty sensor or wiring elsewhere in the vehicle.
Is this part difficult to install?
No, this is a very straightforward replacement. With basic hand tools, you can typically complete the job in under 30 minutes. The most important part is disconnecting the battery first. Our step-by-step guide above walks you through the process.
What if I still need to perform a security relearn?
While our programming aims to make this plug-and-play, some vehicle security systems require a simple ‘relearn’ procedure. This does not require any special tools. The most common method is the ’10-minute key cycle’ procedure, which is detailed in our installation guide and widely available online.
