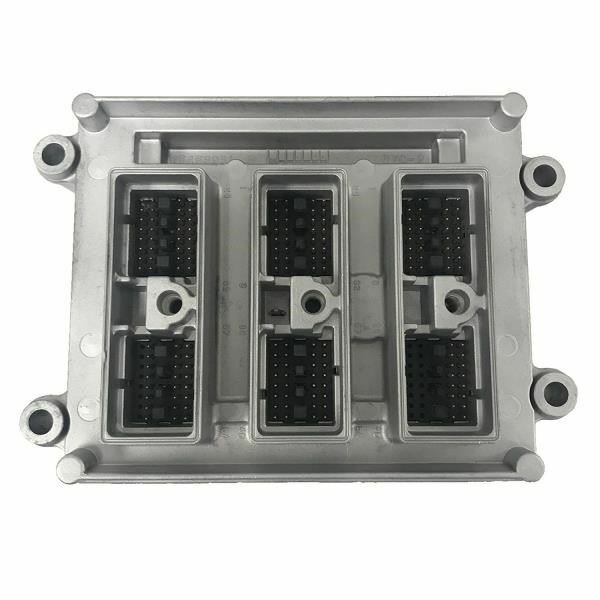

Restore Your SUV’s Performance with a Reliable Powertrain Control Module
If you’re dealing with a frustrating no-start condition, erratic engine behavior, or a persistent check engine light on your 2002 GM SUV, the Powertrain Control Module (PCM) is often the culprit. As the central computer of your vehicle, it controls everything from fuel mixture and ignition timing to transmission shifting. When it fails, it can cause a cascade of problems that leave you stranded. This replacement PCM is the definitive solution to get your Trailblazer, Envoy, or Bravada running smoothly and reliably again.
Over my 20+ years in automotive diagnostics, I’ve seen firsthand how a failing PCM can mimic a dozen other issues. Drivers spend hundreds on sensors and parts, only to find the core problem was the computer itself. We take the guesswork out of the repair. This isn’t just a part in a box; it’s a complete, ready-to-install solution. We flash the module with the latest GM-authorized software calibrations, specifically matched to your vehicle using the VIN you provide. This ensures perfect communication between all onboard systems and restores the original performance and efficiency your vehicle had when it left the factory.
From the Diagnostic Bay: The Intermittent Stall
A customer brought in his 2002 Envoy XL with a maddening intermittent stalling problem. It would run fine for days, then suddenly die at a stoplight with no warning and no check engine light. We checked fuel pressure, ignition components, and sensors—all tested perfectly. On a hunch, I monitored the PCM’s 5-volt reference signal. After letting the engine idle for nearly an hour, I saw the voltage flicker and drop, causing the stall. The PCM’s internal voltage regulator was failing under heat soak. Replacing it with a properly programmed module like this one solved the problem permanently. It’s a classic example of how a faulty 2002 Trailblazer EXT PCM can create ghost-like issues.
Common Signs of a Failing PCM
- ✔ Check Engine Light is on with codes like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (ECM/PCM Processor Fault).
- ✔ The engine cranks but refuses to start.
- ✔ Unexplained drops in fuel economy.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ The engine misfires, stumbles, or stalls intermittently.
- ✔ Communication errors with your scan tool.
A Straightforward Guide to Installation
Installing your replacement 2002 Trailblazer EXT PCM is a job most DIYers can handle in under an hour with basic tools. Our pre-programming service eliminates the need for a trip to the dealership.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent accidental contact.
- Locate the PCM: On these GM SUVs, the PCM is located in the engine bay, on the driver’s side, near the air filter housing.
- Disconnect the Connectors: Carefully release the locking levers on the electrical harness connectors and pull them straight out from the module. Avoid forcing them.
- Remove the Old Module: Unbolt the mounting bracket holding the PCM in place and remove the old unit from the vehicle.
- Install the New PCM: Mount your new, pre-programmed PCM into the bracket. Reconnect the electrical harnesses, ensuring the locking levers click securely into place.
- Reconnect the Battery: Re-attach the negative battery terminal.
- Perform Security Relearn: You will need to perform the GM Security Relearn Procedure. This simple process involves turning the key to the ‘ON’ position for 10-15 minutes, then ‘OFF’, and repeating two more times. This allows your vehicle’s anti-theft system to recognize the new PCM. Your vehicle will not start until this is completed.
Verified Vehicle Compatibility
This module is a direct-fit replacement for the original computer in the following vehicles. It is programmed specifically for your VIN and replaces a wide range of original part numbers, ensuring a perfect match.
- Part Numbers Replaced: 19210066, 12571178, 12576463, 16255240, DLDA, YBLR, YBRY, YBZP
- 2002 Oldsmobile Bravada (Located on LH side of engine)
- 2002 GMC Envoy (Located on LH side of engine)
- 2002 GMC Envoy XL (Located on LH side of engine)
- 2002 Chevrolet Trailblazer (Located on LH side of engine)
- 2002 Chevrolet Trailblazer EXT (Located on LH side of engine)
By ordering this part, you’re not just fixing a problem; you’re investing in the long-term health and reliability of your truck. This is the most effective way to solve complex electronic issues and restore the vehicle’s core functions. A new, correctly programmed 2002 Trailblazer EXT PCM is the foundation of a well-running engine.
Frequently Asked Questions
Frequently Asked Questions
How does the VIN programming process work?
After you complete your purchase, simply send us your 17-digit Vehicle Identification Number (VIN). Our technicians will use it to load the latest, most stable GM software calibration directly onto the module before shipping it to you.
Will I need to do anything else after installation?
Yes. You must perform the GM Security Relearn Procedure, which syncs the new PCM with your vehicle’s anti-theft system. It’s a simple key-cycle process that takes about 30 minutes and requires no special tools. We include instructions for this.
Is this a used part?
This is a high-quality replacement part that has been prepared and programmed to meet or exceed original factory specifications. It is guaranteed to function correctly once installed and the security relearn is performed.
What if my part number isn’t listed?
The listed part numbers (19210066, 12571178, etc.) cover the vast majority of these vehicles. If your number is different, please contact us with your VIN. We can verify compatibility to ensure you receive the correct module for your SUV.
Will this fix my transmission shifting problems?
In many cases, yes. The PCM controls the transmission’s shift points and line pressure. If the PCM is faulty, it often causes hard shifting, delayed engagement, or other transmission issues. A new module with fresh programming can restore proper transmission function.
