Restore Control and Eliminate Electrical Headaches in Your 2002 GM Truck
Are you chasing down frustrating electrical gremlins in your 2002 Tahoe, Suburban, or Escalade? Intermittent power windows, flickering lights, a security system that acts up, or strange warning messages on the dash are classic signs of a failing Body Control Module (BCM). As the central computer for your vehicle’s body electronics, a faulty BCM can cause a host of confusing and unpredictable problems. This isn’t just an annoyance; it can affect vehicle security and safety. Stop throwing parts at the problem and get the definitive solution.
This is a direct-replacement BCM, fully programmed to your vehicle’s specific Vehicle Identification Number (VIN) before it ships. We load the latest, most stable software from GM, ensuring all factory functions are restored correctly. This means you can skip the expensive dealership visit and the need for specialized programming tools. Simply provide your VIN at checkout, and we handle the complex part, delivering a module that’s ready for installation right out of the box.
A Technician’s Notebook: The Phantom Drain
I once had a 2002 Yukon XL in the bay with a battery that would die overnight. The owner had already replaced the battery and alternator twice. Standard parasitic draw tests were inconclusive. The draw was intermittent. After hours of diagnostics, I traced it back to the BCM. It was failing to put the interior lighting and radio circuits to sleep after the key was off. A new, correctly programmed BCM solved the issue instantly. These failures aren’t always obvious, but they often manifest as these kinds of hard-to-diagnose electrical puzzles. A fresh, properly configured 2002 GM Body Control Module is often the key.
Is Your Truck Showing These Symptoms?
A failing BCM is the root cause of many electrical issues. If you’re experiencing any of the following, this module is the likely solution:
- ✔ Power windows, door locks, or mirrors operating erratically or not at all.
- ✔ Interior or exterior lights staying on, flickering, or not working.
- ✔ The security system light flashing or preventing the vehicle from starting.
- ✔ Inaccurate or non-functioning gauges on the instrument cluster.
- ✔ “Service 4WD” or other warning messages appearing without a clear cause.
- ✔ Communication error codes (like U0140) when scanned with a diagnostic tool.
- ✔ Unexplained battery drain that kills the battery overnight.
A Straightforward Guide to Installation
Replacing the BCM is a manageable job for a DIYer with basic tools. The module is typically located under the driver’s side of the dashboard, near the steering column.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and wait at least 10 minutes to allow all systems to power down completely.
- Locate the BCM: On most 2002 GM trucks and SUVs, the BCM is mounted to a bracket beneath the steering column. You may need to remove a lower dash panel for access.
- Disconnect and Remove: Carefully unplug the electrical connectors. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the old module from its mounting bracket.
- Install the New Module: Mount your new, pre-programmed BCM in the same location and securely reconnect all electrical harnesses. Ensure they click into place.
- Reconnect and Test: Reconnect the negative battery terminal. Turn the key to the ‘ON’ position (without starting) and test functions like windows, locks, and lights. Start the vehicle and check for any warning lights.
Important Post-Installation Notes
While our programming handles the majority of the setup, some vehicles may require a final sync procedure. This is normal and depends on your vehicle’s specific configuration.
- Airbag System Sync: If the airbag warning light is on after installation, a professional scan tool is needed to perform the “Setup SDM Primary Key in BCM” procedure. This syncs the new BCM with the airbag module.
- Brake Pedal Position Relearn: In some cases, a brake pedal position sensor relearn may be required to ensure correct brake light and traction control operation.
- No Core Charge: You are not required to send your old module back. This saves you time and return shipping costs.
Disclaimer: Always consult a factory service manual or a certified technician if you are unsure about any step. Vehicle systems can vary.
Will This Fit My Truck?

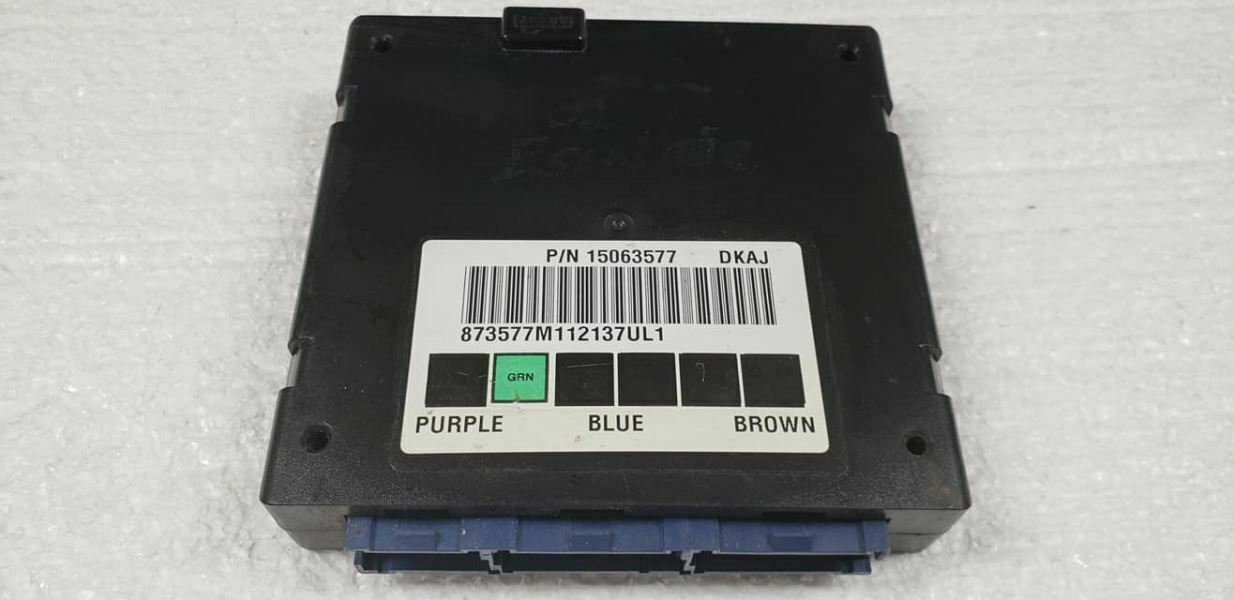

This 2002 GM Body Control Module is a guaranteed fit for the following models. It is a direct replacement for service numbers 15063577, 15081857, 19208544, 15095335, DKAJ, and DPNW.
- 2002 Cadillac Escalade (Body Control, under steering column, 4×4)
- 2002 Cadillac Escalade EXT (Body Control, under steering column)
- 2002 Chevrolet Avalanche 1500 (Body Control, under steering column, 4×4)
- 2002 Chevrolet Suburban 1500 (Body Control, under steering column, 4×4)
- 2002 Chevrolet Tahoe (Body Control, under steering column, 4×4)
- 2002 GMC Yukon (Body Control, under steering column, 4×4)
- 2002 GMC Yukon XL 1500 (Body Control, under steering column, 4×4)
Don’t let a faulty BCM keep your truck off the road or drive you crazy with electrical issues. Order your VIN-programmed 2002 GM Body Control Module today and restore your vehicle’s proper function and reliability.
Frequently Asked Questions
How does the VIN programming work?
After you place your order, you will need to provide us with your 17-digit VIN. We use this number to access the latest GM software specific to your vehicle’s options and features, ensuring a perfect match and proper functionality.
Is this part difficult to install myself?
For someone with basic mechanical skills, the physical installation is straightforward. The BCM is usually held in by a few bolts or clips under the dashboard. Our pre-programming service eliminates the most difficult step, which is the software setup.
What if the airbag light comes on after I install it?
This can happen occasionally. It means the new BCM needs to be electronically ‘introduced’ to the airbag module (SDM). This procedure, called ‘Setup SDM Primary Key in BCM’, must be performed with a bi-directional scan tool, which most professional repair shops have.
Do I need to send my old BCM back?
No. This product comes with no core charge. You can keep your original module, saving you the hassle and cost of return shipping.
Will this fix my ‘Service 4WD’ message?
A failing BCM can cause false warning messages, including for the 4WD system, due to communication errors. If the BCM is the source of the error, this part will resolve it. However, the message can also be caused by other components in the 4×4 system.
