Restore Your SUV’s Core Performance and Reliability
Is your 2002 GMC Envoy XL, Trailblazer, or Bravada running rough, stalling unexpectedly, or showing a persistent Check Engine Light? These are classic signs that the brain of your engine—the Powertrain Control Module (PCM)—is failing. As a technician with over two decades of experience under the hood, I’ve seen firsthand how a faulty PCM can cause a cascade of frustrating issues, from poor fuel economy to erratic transmission shifting. This isn’t just an inconvenience; it’s a matter of reliability. You deserve a vehicle you can count on, and this direct-fit replacement PCM is the definitive solution to get you back on the road with confidence.
This module is more than just a replacement part; it’s a complete, ready-to-install solution. We take the guesswork and extra cost out of the repair by programming the unit specifically to your vehicle’s VIN before it ships. This process ensures it has the latest GM factory software updates, which often correct drivability issues the original software had. By installing a properly programmed 2002 Envoy XL PCM, you are restoring the precise fuel delivery, ignition timing, and transmission control your vehicle had when it was new.
Is Your GM SUV Showing These Red Flags?
- ✔ Unexplained Check Engine Light with codes like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (ECM/PCM Processor Fault).
- ✔ The engine cranks but refuses to start.
- ✔ Stalling at idle or while driving.
- ✔ Noticeably worse fuel mileage.
- ✔ Harsh or unpredictable automatic transmission shifting.
- ✔ Communication errors with diagnostic scan tools.
From the Diagnostic Bay: The Ghost in the Machine
I remember a 2002 Trailblazer that came into my shop a few years back. The owner had already replaced the fuel pump and a couple of sensors, chasing a random stalling problem that no one could pin down. The vehicle would run fine for days, then suddenly die at a stoplight. After hooking up my diagnostic equipment, I saw no hard codes, just intermittent communication dropouts with the engine controller. This is a tell-tale sign. A failing PCM doesn’t always throw a clear code; sometimes, it just stops communicating. We installed a new, properly programmed PCM, and the problem vanished instantly. It’s a reminder that sometimes the most complex issues come from a single, central component.
A Straightforward Guide to Installation
Replacing the 2002 Envoy XL PCM is a manageable job for a DIY enthusiast. The key is the pre-programming, which eliminates the need for expensive dealer tools. Follow these steps carefully for a successful installation.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent accidental contact.

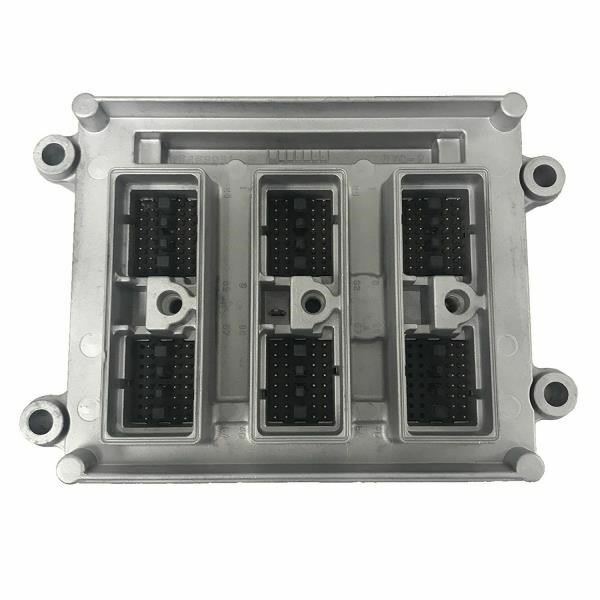

- Locate the PCM: On these GM SUVs, the PCM is typically located in the engine bay on the driver’s side, near the air filter housing. It’s a silver metal box with several large electrical connectors.
- Disconnect the Connectors: Carefully unlatch and remove all electrical harness connectors from the old PCM. These connectors have locking tabs that need to be released before they can be pulled off. Avoid forcing them.
- Remove the Old Module: Unbolt the mounting brackets holding the old PCM in place and remove it from the vehicle.
- Install the New PCM: Mount your new, pre-programmed PCM in the same location. Re-attach the electrical connectors, ensuring they click securely into place.
- Reconnect the Battery: Re-attach the negative battery terminal.
- Perform Security Relearn: Your vehicle may require a simple security relearn procedure. Turn the key to the ‘ON’ position for 10-15 minutes (do not start the engine), then turn it ‘OFF’ for 10 seconds. Repeat this cycle two more times. On the fourth try, the vehicle should start and run normally. This syncs the new PCM with your vehicle’s anti-theft system.
Verified Vehicle Compatibility
This engine control module is a direct-fit replacement for the following vehicles equipped with the LH engine option. It is compatible with part numbers 19210066, 12571178, 12576463, 16255240, and service codes DLDA, YBLR, YBRY, and YBZP.
- 2002 Oldsmobile Bravada
- 2002 Chevrolet Trailblazer
- 2002 Chevrolet Trailblazer EXT
- 2002 GMC Envoy
- 2002 GMC Envoy XL
Choosing this pre-programmed 2002 Envoy XL PCM is the most efficient way to solve complex electronic issues and restore your vehicle’s performance and dependability without a trip to the dealership. Provide your VIN at checkout, and we’ll handle the rest.
Frequently Asked Questions
Do I need to get this PCM programmed by a dealer?
No. We program the module to your vehicle’s specific VIN before we ship it. It arrives ready to install, saving you time and money.
What is a VIN and why do you need it?
The VIN (Vehicle Identification Number) is a unique 17-digit code for your specific vehicle. We use it to load the correct GM-certified software and settings, ensuring perfect compatibility with your engine, transmission, and options.
Will this fix my transmission shifting problems?
In many cases, yes. The PCM controls the transmission’s shift points and line pressure. If the module is faulty, it can cause harsh, late, or erratic shifts. A new, correctly programmed PCM often resolves these issues.
Is the security relearn procedure difficult?
Not at all. The 10-minute key-on/key-off procedure is simple and requires no special tools. It’s a standard process for many GM vehicles to sync a new module with the anti-theft system.
My original part number is 12571178. Will this part work?
Yes. This PCM is a direct replacement for all part numbers listed in the description, including 12571178, 19210066, and 16255240. We ensure the software loaded matches your vehicle’s requirements.
