Restore Your Truck’s Brain and Get Back on the Road
Is your 2002 GMC Envoy, Trailblazer, or Bravada giving you headaches? If you’re dealing with frustrating issues like sudden stalling, a persistent check engine light, erratic transmission shifting, or a complete no-start condition, the problem often points directly to a failing Powertrain Control Module (PCM). As the central computer for your engine and transmission, when the PCM falters, the entire vehicle’s performance suffers. This isn’t just an inconvenience; it’s a reliability issue that can leave you stranded.

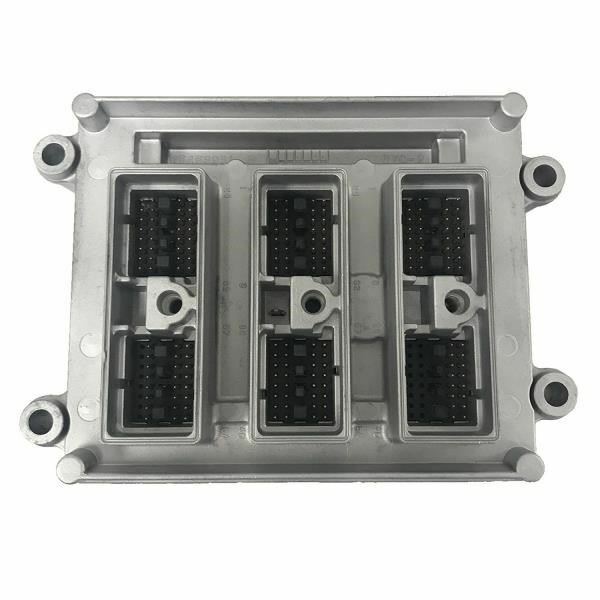

Forget the expensive trip to the dealership and the hassle of finding a shop with the right equipment. We provide a straightforward, reliable solution. This replacement 2002 Envoy PCM arrives at your door fully programmed with the latest official GM software updates, specifically matched to your vehicle’s VIN. You simply provide us with your VIN after purchase, and we handle all the complex programming. This ensures perfect communication between the module and your vehicle’s systems right out of the box.
From the Diagnostic Bay: The Phantom Fuel Pump Failure
I remember a 2002 Trailblazer that was towed into my shop. The owner had already replaced the fuel pump himself after the truck refused to start, but it didn’t solve the problem. He was frustrated and out a few hundred dollars. When I connected my scan tool, I wasn’t getting any communication with the engine computer. No data, no codes—just silence. This is a classic red flag. After checking the PCM’s power and ground circuits (which were good), it was clear the module itself was dead. A failing 2002 Envoy PCM can often mimic other issues, like a bad fuel pump or ignition system, by failing to send the necessary activation signals. We installed a VIN-programmed module, performed the security relearn, and the truck fired up on the first try. It’s a powerful reminder to always check the basics and suspect the computer when communication is lost.
Is Your Truck Showing These Symptoms?
A faulty PCM can manifest in numerous ways. If you’re experiencing any of the following, this module is the likely solution:
- ✔ No-start or hard-starting conditions
- ✔ Engine stalling unexpectedly while driving or at idle
- ✔ Poor or declining fuel economy
- ✔ Harsh or erratic automatic transmission shifting
- ✔ Check Engine Light illuminated with communication error codes (e.g., U0100)
- ✔ Internal module failure codes stored, such as P0601, P0602, or P0606
- ✔ Inaccurate or non-functioning dashboard gauges
A Straightforward Guide to Installation
Installing your new 2002 Envoy PCM is a manageable job for a DIYer with basic tools. Following these steps will ensure a smooth process. Note: After installation, you will need to perform a security relearn procedure (often called a CASE relearn) to sync the new PCM with your vehicle’s anti-theft system. This can typically be done without special tools.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent accidental reconnection.
- Locate the PCM: On these GMT360 platform trucks, the PCM is located in the engine bay, typically on the driver’s side near the firewall or fuse box.
- Disconnect the Connectors: Carefully unclip and remove the electrical wiring harnesses from the old PCM. There are usually three large connectors. Inspect them for any corrosion or damage.
- Remove the Old Module: Unbolt the mounting bracket holding the PCM in place and remove the old unit from the vehicle.
- Install the New PCM: Mount your new, pre-programmed PCM into the bracket and secure it. Reconnect the wiring harnesses, ensuring they click firmly into place.
- Reconnect the Battery: Reattach the negative battery terminal.
- Perform Security Relearn: Follow the vehicle-specific procedure to sync the new computer. A common method involves turning the key to the ‘ON’ position for 10-15 minutes, then ‘OFF’, and repeating this cycle three times before attempting to start the engine.
Verified Vehicle Compatibility
This module is a direct-fit replacement for the original electronic control module located on the LH side of the engine compartment for the following vehicles:
- ✔ 2002 Oldsmobile Bravada
- ✔ 2002 Chevrolet Trailblazer
- ✔ 2002 Chevrolet Trailblazer EXT
- ✔ 2002 GMC Envoy
- ✔ 2002 GMC Envoy XL
It directly replaces part numbers: 19210066, 12571178, 12576463, 16255240, DLDA, YBLR, YBRY, and YBZP.
Do I need to do anything after I buy it?
Do I need to do anything after I buy it?
Yes. After you complete your purchase, you must send us your vehicle’s 17-digit VIN (Vehicle Identification Number). We cannot program and ship the module without it. This ensures the PCM is loaded with the correct software for your truck’s specific options.
Is this a simple plug-and-play installation?
Mostly, yes. The module is pre-programmed, so you won’t need a dealer scan tool for flashing. However, you will need to perform a security relearn procedure after installation. This procedure syncs the new PCM to your vehicle’s anti-theft system and can usually be done in your driveway without special tools.
Why is a VIN-programmed module better than one from a salvage yard?
A salvage yard PCM is locked to the donor vehicle’s VIN and security system, so it will not start your truck. It would still require costly programming. Our module is not only programmed to your specific VIN but is also updated with the latest GM software, which corrects factory bugs and improves performance and reliability.
Will this fix my transmission shifting problems?
In many cases, yes. The PCM controls both engine functions and transmission shift points. If the module is failing, it can cause harsh shifting, delayed engagement, or hunting for gears. A new, correctly programmed PCM often resolves these communication-based transmission issues.
What if I have a different part number?
This module is a direct replacement for several part numbers, including 19210066, 12571178, 12576463, 16255240, DLDA, YBLR, YBRY, and YBZP. As long as your vehicle is a 2002 Envoy, Trailblazer, or Bravada, this unit is the correct fit.
