Restore Peak Performance to Your GM Truck or Van
Is your 2002 Chevrolet Avalanche 2500 suffering from frustrating issues like a persistent check engine light, poor fuel mileage, erratic shifting, or even a no-start condition? As a technician with over two decades of experience under the hood, I’ve seen these symptoms countless times. More often than not, the root cause is a failing Powertrain Control Module (PCM), the vehicle’s central computer. A faulty PCM can disrupt everything from fuel injection to transmission control, making your reliable truck feel unpredictable. This isn’t just an inconvenience; it can affect safety and lead to more expensive repairs down the line if ignored.

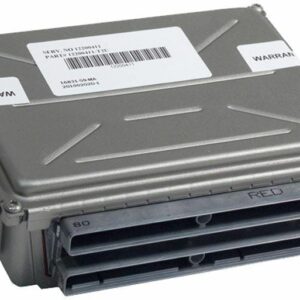

This replacement PCM is the definitive solution. It’s not just a part; it’s a complete service designed to get you back on the road with confidence. We take the biggest headache out of the repair process: programming. Simply provide us with your vehicle’s VIN (Vehicle Identification Number) during checkout, and our experts will flash this module with the latest, most stable GM software updates specific to your truck. This ensures perfect communication between the engine, transmission, and other onboard systems, restoring the smooth operation you expect from your vehicle. By installing this pre-programmed 2002 Avalanche 2500 PCM, you are bypassing expensive dealership programming fees and the need for specialized tools.
A Technician’s Notebook: The Intermittent Stall
I remember a 2002 Sierra 2500 (which uses this exact same PCM) that came into my bay with an intermittent stalling problem that was driving the owner crazy. It would die at stoplights with no warning and no specific trouble codes at first. We checked fuel pressure, and ignition systems—all were fine. The problem was heat-related. After letting the truck run for 30 minutes in the shop, the PCM case was hot to the touch, and that’s when it would finally throw a P0601 Internal Control Module Memory Check Sum Error. The internal processors were failing under thermal stress. We swapped in a VIN-programmed PCM just like this one, performed the quick security relearn, and the truck ran perfectly. It’s a classic failure mode for these modules, and this part is the direct, reliable fix.
Is Your GM Vehicle Showing These Signs of PCM Failure?
A failing computer can cause a wide range of problems. If you’re experiencing any of the following, a faulty PCM could be the culprit. Look out for:
- ✔ Persistent Check Engine Light (CEL) with codes like P0601, P0602, P0606, or other communication errors.
- ✔ The engine cranks but refuses to start.
- ✔ Noticeable drop in fuel economy.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Engine stalling, stumbling, or misfiring for no apparent reason.
- ✔ Failure to pass state emissions testing.
- ✔ Inaccurate or non-functioning dashboard gauges.
A Straightforward Guide to Installation
Replacing the PCM in most of these GM trucks and vans is a job a confident DIYer can handle. Our pre-programming service handles the most complex part for you. Follow these general steps for a successful installation:
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 15 minutes for the system capacitors to discharge.
- Locate the PCM: On most trucks like the Avalanche, Silverado, and Sierra, the PCM is located under the hood on the driver’s side, often near or under the battery tray. On Express/Savana vans, it’s typically in the LH rear of the engine compartment.
- Disconnect Connectors: Carefully unclip and remove the wiring harness connectors from the old PCM. These connectors have locking tabs; be gentle to avoid breaking them.
- Remove the Old Module: Unbolt the PCM from its mounting bracket and remove it from the vehicle.
- Install the New PCM: Mount your new, pre-programmed PCM into the bracket and securely reconnect the wiring harnesses. Ensure they click into place.
- Reconnect Battery: Reattach the negative battery terminal.
- Perform Security Relearn: Your vehicle’s anti-theft system (Passlock/VATS) will likely need to be relearned to the new PCM. This is a simple procedure that typically involves turning the key to the ‘ON’ position for 10-15 minutes, then off, and repeating two more times. Your vehicle will not start until this is completed. Instructions are readily available online for your specific model.
- CASE Relearn (Recommended): For optimal performance and to prevent a misfire code (P0315), a Crankshaft Variation (CASE) relearn is recommended. Most mid-range scan tools can perform this function, or a local repair shop can do it quickly.
Will This Fit My Vehicle? Verified Compatibility
This Electronic Control Module is a direct replacement for a wide array of General Motors vehicles. It is compatible with part numbers 12200411, 12201281, 12576160, and 52369718. Please verify your vehicle is on the list below. If you have any questions, don’t hesitate to contact us with your VIN.
- Avalanche 1500/2500: 2002
- Blazer S10 / Jimmy S15: 2001-2002
- Bravada: 2001
- Camaro / Firebird: 2001-2002 (5.7L)
- Corvette: 2001-2003
- Escalade / Escalade EXT: 2002
- Express / Savana Vans (1500, 2500, 3500): 2001-2002 (Gasoline)
- S10 / S15 / Sonoma: 2001-2002 (4.3L)
- Sierra / Silverado Pickups (1500, 2500, 3500): 2001-2002 (Gasoline)
- Sierra Denali: 2002
- Suburban 1500 / 2500: 2001-2002
- Tahoe / Yukon / Yukon XL: 2001-2002
- Astro / Safari Vans: 2000-2002
Frequently Asked Questions About This PCM
Frequently Asked Questions
Why do you need my VIN?
Your VIN (Vehicle Identification Number) allows us to program the PCM with the exact software and calibrations your specific vehicle requires. This includes engine size, transmission type, and axle ratio, ensuring a perfect match and seamless operation right out of the box.
Is this installation truly plug-and-play?
It’s very close. The programming is done for you, which is the most difficult part. However, you will need to perform a simple security relearn procedure after installation, which takes about 30 minutes and requires no special tools. This syncs the new PCM with your vehicle’s anti-theft system.
Will this fix my check engine light?
If the check engine light is caused by an internal failure of the old PCM (common codes P0601-P0606), then yes, this will resolve the issue. However, if the light is on for another reason (e.g., a bad oxygen sensor), you will still need to fix that separate problem.
What if my original part number is not on your list?
The listed part numbers (12200411, 12201281, 12576160, 52369718) are the most common for this module, but GM often has many superseded numbers. As long as your vehicle model and year are on our compatibility list, this PCM will work when programmed to your VIN.
Is this a new or used part?
This is a high-quality, inspected, and tested recycled OEM part. Each unit is verified to be fully functional before being programmed with the latest GM software for your specific vehicle, providing OEM reliability at a great value.
