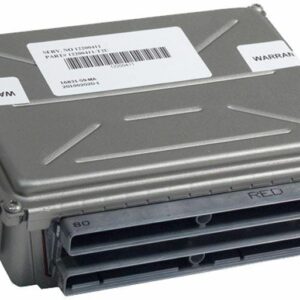

Restore Peak Performance to Your GM Truck with a VIN-Programmed PCM
Is your 2002 Chevrolet Avalanche 1500 running rough, stalling unexpectedly, or showing a persistent Check Engine Light? As a technician with over two decades of experience under the hood, I’ve seen these symptoms countless times. More often than not, the culprit is a failing Powertrain Control Module (PCM), the electronic brain of your vehicle. This isn’t just a part; it’s the central command center for your engine’s performance, fuel efficiency, and emissions. When it falters, your entire driving experience suffers.
We offer a dependable, direct-fit solution. This PCM, compatible with part number 52369718 and others, is meticulously tested and programmed with the latest GM software updates specifically for your vehicle’s VIN. This critical step ensures seamless communication with your truck’s other modules, eliminating the need for an expensive trip to the dealership for programming. You get a reliable part that’s ready to install right out of the box, getting you back on the road with confidence.
Case Study: The Phantom Stall
I once had a 2002 Silverado in my bay—same platform as the Avalanche—with a frustrating problem. The owner said it would run fine for 20 minutes, then stall at a stoplight and refuse to restart for half an hour. No consistent codes, just pure frustration. After checking fuel pressure and spark, I suspected the PCM. On these trucks, it’s located under the battery, where it’s exposed to heat and vibration. I used a heat gun to gently warm the original PCM, and sure enough, the engine sputtered and died. The heat was causing an internal solder joint to fail. A new, properly programmed PCM like this one solved the problem instantly. It’s a classic failure mode for this generation of GM electronics.
Is Your Truck Exhibiting These PCM Failure Signs?
A failing engine computer can cause a wide range of issues. If you’re experiencing any of the following, a faulty 2002 Avalanche 1500 PCM could be the reason:
- âś” Check Engine Light is on with codes like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (PCM Processor Fault)
- âś” Engine stalls, stumbles, or misfires intermittently
- âś” Harsh or erratic automatic transmission shifting
- âś” Noticeable decrease in fuel economy
- âś” Vehicle won’t start, even with a good battery and starter
- âś” Failure to communicate with a diagnostic scan tool
Your Straightforward PCM Installation Guide
Replacing the PCM on your Avalanche is a manageable job for a DIYer with basic tools. Follow these steps carefully for a successful installation.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent any accidental reconnection.
- Locate the PCM: On most GM trucks of this era, including the Avalanche, the PCM is located on the driver’s side of the engine bay, under the battery tray. You will need to remove the battery to access it.
- Remove the Battery and Tray: Disconnect both battery terminals (negative first). Lift the battery out. Then, unbolt and remove the battery tray to fully expose the PCM and its mounting bracket.
- Disconnect the PCM Connectors: The PCM has large multi-pin connectors (often color-coded blue and red). They have locking levers or tabs. Carefully lift the levers to release the connectors and pull them straight out from the module. Never force them.
- Remove the Old PCM: Unbolt the PCM from its mounting bracket and remove it from the vehicle.
- Install the New PCM: Mount your new, pre-programmed PCM onto the bracket. Reconnect the wiring harnesses, ensuring they click securely into place and the locking levers are fully engaged.
- Reassemble: Reinstall the battery tray and the battery. Reconnect the positive battery terminal first, followed by the negative terminal.
- Final Step (Important): While the module is programmed to your VIN, some vehicles may require a security or CASE (Crankshaft Angle Sensor Error) relearn procedure. This often requires a capable scan tool. Many vehicles will start and run without this, but for optimal performance and to clear certain codes, this final step may be necessary.
Verified to Fit These GM Trucks, Vans, and Cars
This module is a direct replacement for a wide range of GM vehicles. Please verify your model and part number. This unit is compatible with service numbers 12200411, 12201281, 12576160, and 52369718.
Fitment includes, but is not limited to:
- Chevrolet Avalanche 1500/2500: 2002
- Chevrolet Silverado & GMC Sierra 1500/2500/3500 (Gas): 2001-2002
- Chevrolet Tahoe & GMC Yukon / Yukon XL: 2001-2002
- Cadillac Escalade / EXT: 2002
- Chevrolet Suburban 1500/2500: 2001-2002
- Chevrolet Express & GMC Savana Vans (Gas): 2001-2002
- Chevrolet S10, Blazer & GMC Sonoma, Jimmy (4.3L): 2001-2002
- Chevrolet Camaro & Pontiac Firebird (5.7L): 2001-2002
- Chevrolet Astro & GMC Safari: 2000-2002
- Chevrolet Corvette: 2001-2003
- And more. Please check the detailed list to confirm your specific application.
Frequently Asked Questions About Your 2002 Avalanche 1500 PCM
How do I provide my VIN for programming?
How do I provide my VIN for programming?
After you complete your purchase, you will need to send us your 17-digit Vehicle Identification Number (VIN). We will provide clear instructions on how to do this. We cannot ship the module until we have programmed it with your specific VIN.
Is any additional programming needed after installation?
Our programming covers all the essential data from your VIN. However, in some cases, a Security Relearn or a CASE (Crankshaft Position System Variation) Relearn may be required. This is a simple procedure that can be done with a bi-directional scan tool and ensures perfect synchronization with your engine.
What’s the difference between a PCM and an ECM?
The terms are often used interchangeably. ECM (Engine Control Module) typically just controls engine functions. A PCM (Powertrain Control Module) is more integrated and controls both the engine and the transmission. For your 2002 Avalanche, this module functions as the PCM.
Will this fix my specific problem?
This module will correct issues directly caused by a faulty PCM. It is crucial to properly diagnose your vehicle’s problem first. If you have symptoms like a no-start condition, stalling, or specific internal processor codes (like P0601), the PCM is a very likely cause.
