Restore Control and End Electrical Frustration in Your GM SUV

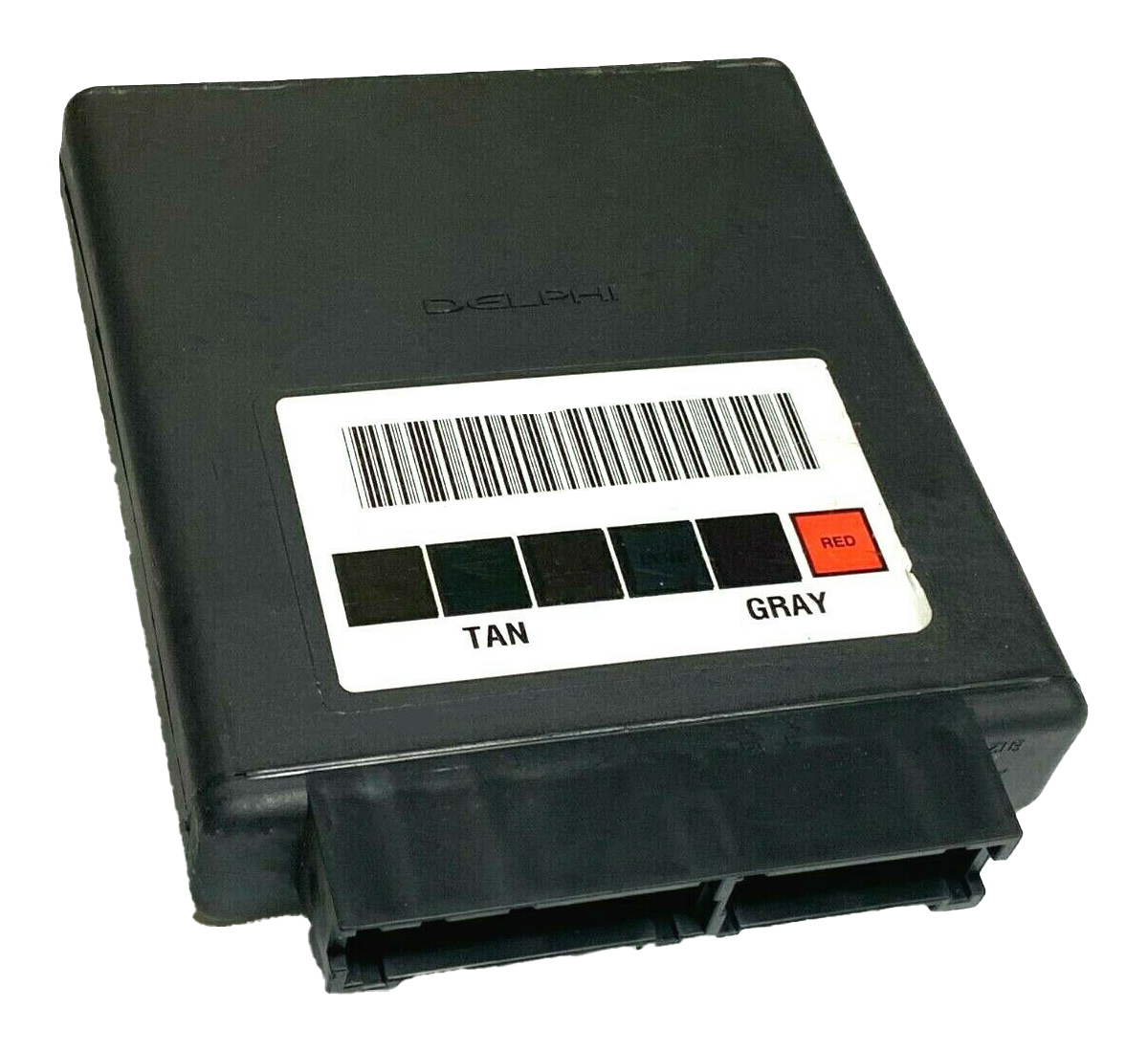

Is your 2002-2005 GMC Envoy XL, Trailblazer, or other GMT360 platform SUV acting possessed? One day the power windows work, the next they don’t. The battery is dead again, even though you just replaced it. These aren’t random quirks; they’re classic signs of a failing Body Control Module (BCM). As the central computer for your vehicle’s comfort and convenience features, a faulty BCM can create a cascade of baffling electrical issues. This replacement BCM is your reliable, straightforward solution. It arrives at your door pre-programmed with the latest GM software, specifically matched to your vehicle’s VIN. This eliminates the need for expensive dealership programming, getting you back on the road with confidence.
Case Study: The Phantom Battery Drain
I once had a 2004 Trailblazer in my bay that was on its third new battery in six months. The owner was convinced he had a faulty alternator, but charging system tests came back perfect. The real culprit? A parasitic draw. After hooking up my multimeter, I traced the drain back to the BCM, which was failing to let the interior lighting relay go to sleep after the truck was turned off. It was a slow, silent battery killer. Swapping in a properly programmed BCM didn’t just fix the lights; it solved the core problem and saved the customer from buying a fourth battery. This is a common failure I’ve seen dozens of times on these vehicles.
Is Your GM SUV Showing These Symptoms?
A failing BCM can manifest in many ways. If you’re experiencing any of the following, this module is likely the component you need to fix the problem for good. Look out for:
- ✔ Unexplained and recurring dead battery (parasitic draw)
- ✔ Power windows, door locks, or mirrors working intermittently or not at all
- ✔ Interior or exterior lights staying on or not turning on
- ✔ Erratic instrument cluster behavior, with gauges dropping out or warning lights flashing
- ✔ The security system preventing the vehicle from starting
- ✔ Communication error codes, such as U0140, stored in other modules
A Straightforward Guide to BCM Installation
Replacing the BCM is a manageable job for a DIY enthusiast. The key is taking your time and being gentle with the plastic connectors. While this guide provides the basic steps, always reference a service manual for your specific model’s details.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait a few minutes before beginning work.
- Locate the BCM: On most Envoy, Trailblazer, and related models, the BCM is part of the rear fuse block assembly, typically located under the driver’s side of the rear seat. You will need to lift the seat cushion to access it.
- Disconnect and Remove: Carefully unplug the multiple electrical connectors from the module. They have locking tabs that must be depressed to be released. Once all connectors are free, unbolt or unclip the fuse block assembly to access and remove the BCM.
- Install the New Module: Seat the new, pre-programmed BCM in place and securely re-attach all electrical connectors. You should hear a click as they lock. Re-install the fuse block assembly.
- Reconnect and Test: Reconnect the negative battery terminal. Turn the key to the ‘On’ position and test all body functions—windows, locks, lights, wipers, and gauges—to ensure proper operation.
Post-Installation Procedures: What to Expect
Because this 2002-2005 Envoy XL BCM comes programmed, many functions will work immediately. However, depending on your vehicle’s specific systems, a couple of final sync procedures may be needed. Please be aware of these possibilities:
- Airbag System Sync: If the airbag warning light is illuminated after installation, it means the new BCM needs to be electronically introduced to the vehicle’s airbag computer (SDM). A professional scan tool is required to perform the ‘Setup SDM Primary Key in BCM’ procedure to clear the light.
- Brake Pedal Position Relearn: In some cases, the brake pedal position sensor may need to be recalibrated. This is essential for the proper function of the brake lights and the traction control system. This also requires a compatible diagnostic tool.
- No Core Charge: You are not required to return your old, faulty module. You can keep it or dispose of it at your convenience.
Disclaimer: Vehicle systems vary. We always recommend consulting a factory service manual or a certified technician if you are unsure about any step of the process.
Verified Vehicle Compatibility
This module is a direct replacement for part numbers 15114669, 15122670, 15065293, 15191621, and 9352135. It is guaranteed to fit the following vehicles:
- 2002-2005 GMC Envoy, Envoy XL, Envoy XUV
- 2002-2005 Chevrolet Trailblazer & Trailblazer EXT
- 2002-2004 Oldsmobile Bravada
- 2004-2005 Buick Rainier
- 2003-2005 Isuzu Ascender
- 2005 Saab 9-7X
Note: Please verify your vehicle’s options (e.g., with or without security system) match the fitment details provided in the compatibility chart.
Frequently Asked Questions
What does ‘VIN Programmed’ actually mean?
It means we load the module with the specific software and settings for your exact vehicle using the VIN you provide. This makes the installation process much simpler and avoids a mandatory trip to the dealership for programming, saving you time and money.
Do I need to send my old BCM back?
No. There is no core charge for this part. You can keep your original module.
Is this something I can install myself at home?
Yes, the physical installation is straightforward for many DIYers with basic tools. However, be aware that post-installation procedures like an airbag system sync or brake pedal relearn may be required, which necessitate a professional-grade scan tool.
Will this fix my intermittent starting problem?
It can. The BCM is often tied into the vehicle’s security or anti-theft system. If the BCM is failing, it can prevent the engine from starting. If your starting issue is combined with other electrical symptoms, a faulty BCM is a very likely cause.
How do I provide my VIN?
After you complete your purchase, you will need to send us a message with your vehicle’s 17-digit VIN. We cannot program and ship your BCM without it.
