Restore Your Monte Carlo’s Brainpower and Performance
Is your 2001-2003 Monte Carlo giving you headaches? Unexplained stalling, a persistent Check Engine Light, or erratic engine behavior can often be traced back to a failing Powertrain Control Module (PCM). As the central computer of your vehicle, when the PCM starts to fail, it can create a cascade of frustrating and hard-to-diagnose issues. This isn’t just an inconvenience; it affects your car’s reliability, fuel economy, and safety. You need a solution that is both effective and straightforward.

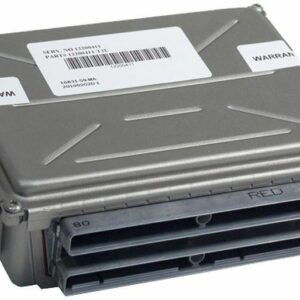

This replacement PCM, part number 09360210, is the definitive fix for these problems. We take the guesswork and hassle out of the repair. Simply provide us with your vehicle’s VIN (Vehicle Identification Number) after purchase, and our experts will program the module with the very latest GM factory software updates. This means it arrives at your door ready for a simple, plug-and-play installation, saving you a costly trip to the dealership for programming.
From the Diagnostic Bay: The Phantom Misfire
I remember a 2002 Impala with the 3.4L V6—same platform as your Monte Carlo—that came into my shop. The owner had already replaced spark plugs, wires, and even an ignition coil trying to chase down an intermittent misfire and a P0300 (Random/Multiple Misfire) code. The engine would run fine for days, then suddenly start stumbling. After checking fuel pressure and finding no vacuum leaks, my diagnostic instincts pointed to the PCM. We connected a scope and saw the injector driver signal for cylinder 3 was dropping out intermittently. A new, properly programmed PCM fixed it instantly. The customer had spent hundreds on parts he didn’t need, when the root cause was the engine’s computer all along.
Common Signs of a Failing GM PCM
If you’re experiencing any of the following, a faulty PCM is a likely culprit. In my 20+ years of experience, these are the symptoms I see most often with this specific module family.
- ✔ Check Engine Light is on with codes like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (PCM Processor Fault).
- ✔ The engine cranks but refuses to start.
- ✔ Unexplained drops in fuel efficiency.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ The vehicle stalls for no apparent reason, either while driving or at idle.
- ✔ Communication errors with diagnostic scan tools.
A Straightforward Guide to Installation
Replacing the 2001-2003 Monte Carlo PCM is a job most DIYers can handle in their own driveway. Since we program it for you, no special computer tools are required for the installation itself.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the PCM: On your Monte Carlo, the PCM is typically located in the engine compartment on the driver’s side, often inside the air filter housing assembly.
- Disconnect the Harnesses: Carefully release the locking tabs on the electrical connectors and pull them straight out from the module. Never force them. Inspect the pins for any corrosion.
- Remove the Old Module: Unbolt the PCM from its mounting bracket. It’s usually held in by a few small bolts.
- Install the New Module: Seat your new, pre-programmed PCM into the mounting bracket and secure it.
- Reconnect Everything: Firmly plug the electrical harnesses back into the new module until they click into place. Reconnect your negative battery terminal.
- Final Step: In some cases, a security relearn procedure may be necessary, which typically involves turning the key to the ‘On’ position for 10-15 minutes. Your vehicle’s service manual can provide specific instructions.
Verified Vehicle Compatibility
This module is a direct replacement for part numbers 09360210, 12209614, and 12202600. It is guaranteed to fit the following vehicles. Please verify the part number or ID on your original module to ensure a perfect match.
Frequently Asked Questions
Do I need to do anything after installing this PCM?
Because we program the module to your VIN, it is a plug-and-play installation. However, some GM vehicles may require a simple security relearn procedure (also known as a CASE relearn) which can often be done without a scan tool. We recommend checking your service manual for the specific steps for your vehicle.
What is a VIN and why do you need it?
The VIN is your car’s 17-digit Vehicle Identification Number, like a fingerprint. It tells us the exact specifications of your vehicle—engine, transmission, and factory options. We use this to load the correct GM software onto your module, ensuring perfect compatibility.
Will this fix my car’s specific problem?
This PCM will correct any issues directly caused by a faulty module, such as internal processor errors (P0601, P0606), driver circuit faults, or software corruption. While it solves many common problems, it’s always best to ensure your vehicle has been properly diagnosed by a qualified mechanic or experienced DIYer.
Is this a used part?
This is a high-quality, tested, and verified original equipment (OE) component. Each module undergoes a rigorous inspection and is programmed with the latest software to ensure it meets or exceeds factory performance standards.
How is this different from buying one at a junkyard?
A junkyard module will not be programmed for your specific vehicle and will not have the latest software updates. It would require a trip to a dealer for expensive programming. Our module is delivered ready to install, saving you significant time, money, and hassle.
