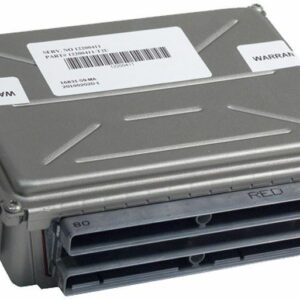

Restore Your Grand Am’s Performance and Reliability
If you’re dealing with a frustrating no-start condition, a persistent Check Engine Light, or erratic engine behavior in your 2001-2003 Pontiac Grand Am, a failing Powertrain Control Module (PCM) is often the culprit. As the central computer for your engine and transmission, its health is critical. This isn’t just a replacement part; it’s a complete, ready-to-install solution. We take the guesswork and extra cost out of the repair by pre-programming this module to your vehicle’s specific Vehicle Identification Number (VIN) before it ships. This ensures seamless communication with your car’s other systems and incorporates the latest GM software updates for optimal performance and efficiency.
A Technician’s Notebook: The Intermittent Gremlin
I remember a 2002 Grand Am that came into the shop with a ghost of a problem. The owner said it would randomly refuse to start, but only after it had been driven and sat for about an hour. No codes, no warning lights when it was running. We checked the fuel pump, ignition system, and starter—all tested fine. After a few days of head-scratching, I hooked up a scope to the PCM’s main power and ground circuits while monitoring sensor data. On the third test cycle, I caught it: a momentary, complete loss of the 5-volt reference signal from the PCM, just as the no-start happened. The internal voltage regulator was failing under heat soak. A new, properly programmed PCM fixed it for good. These intermittent issues are classic signs of a failing 2001-2003 Grand Am PCM, and a direct replacement is the only reliable fix.
Is Your Grand Am Showing These Symptoms?
- ✔ Unexplained Check Engine Light illumination.
- ✔ Vehicle refuses to start or starts and immediately stalls.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ A noticeable drop in fuel economy.
- ✔ The engine hesitates, stumbles, or misfires during acceleration.
- ✔ Failed emissions test due to communication errors.
- ✔ Stored Diagnostic Trouble Codes (DTCs) such as P0601, P0602, P0605, or P0606.
A Straightforward Guide to Installation
Replacing the PCM in your Grand Am is a manageable job for a DIYer. In this model, it’s typically located inside the car, behind the left-hand (driver’s side) center dash console. This protects it from engine heat and makes access fairly simple.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent any accidental reconnection.
- Access the Module: You will likely need to remove the lower dash panel on the driver’s side to access the PCM. It’s usually mounted to a bracket.
- Disconnect Connectors: Carefully unclip the wiring harness connectors from the old PCM. These connectors have locking tabs that must be released before they can be unplugged. Do not force them.
- Remove the Old PCM: Unbolt the old module from its mounting bracket.
- Install the New PCM: Mount your new, pre-programmed PCM onto the bracket and securely reconnect the wiring harnesses. You should hear a ‘click’ as they lock into place.
- Perform Security Relearn: Reconnect the battery. You will now need to perform the GM Pass-Key/Passlock security relearn procedure. This typically involves turning the key to the ‘ON’ position for 10-15 minutes, then ‘OFF’ for 10 seconds, and repeating this cycle three times. This allows your car’s anti-theft system to recognize the new PCM.
- Final Check: Once the relearn is complete, start the engine. It should now run smoothly. Let it idle for a few minutes to allow the computer to complete its internal checks.
Will This Fit My Vehicle?
This module is a direct-fit replacement for part number 12202600 and is also compatible with service numbers 12209614 and 09360210. It is guaranteed to fit the following GM vehicles. Please verify your specific model and engine for a perfect match.
Frequently Asked Questions
How does the VIN programming work?
After you place your order, simply provide us with your 17-digit VIN. Our technicians will use this number to flash the module with the correct, factory-certified software for your exact vehicle configuration. This ensures it works perfectly right out of the box.
Is this a plug-and-play part?
Almost. Because it comes pre-programmed to your VIN, you will not need a scan tool for software installation. However, like any PCM replacement on these GM vehicles, you must perform the security relearn procedure (detailed in the installation guide) to sync the module with your car’s anti-theft system.
Will this fix my transmission shifting problems?
In many cases, yes. The PCM controls both the engine and the transmission. If the module is failing, it can send incorrect signals to the transmission solenoids, causing hard shifts, slipping, or delayed engagement. Replacing a faulty 2001-2003 Grand Am PCM often resolves these electronic-based transmission issues.
Do I need to return my old PCM?
No core charge or return is required for this part. You can keep your old module or dispose of it responsibly.
What if I have other part numbers on my module?
This module is a direct replacement for part numbers 12202600, 12209614, and 09360210. If your module has one of these numbers, this part will work for your vehicle, provided it is on the compatibility list.
