Restore Peak Performance to Your GM Vehicle
As a technician with over two decades of experience under the hood, I’ve seen countless drivers frustrated by persistent, hard-to-diagnose issues. A flickering check engine light, unexplained stalling, poor fuel economy, or harsh transmission shifts can turn a reliable car into a source of constant worry. More often than not, the culprit is a failing Powertrain Control Module (PCM)—the central computer of your vehicle. This isn’t just a part; it’s the brain responsible for engine performance, emissions, and transmission function. When it starts to fail, the symptoms can be maddening.

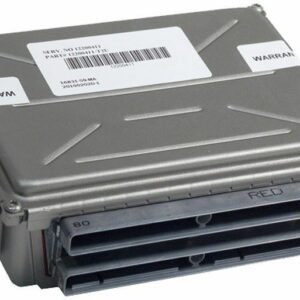

This Powertrain Control Module, compatible with part numbers 09360210, 12209614, and 12202600, is the definitive solution for your 2001-2003 Pontiac Grand Am and a wide range of other GM vehicles. The biggest hurdle in replacing a PCM has always been the expensive and time-consuming programming required at a dealership. We eliminate that step entirely. Simply provide us with your vehicle’s VIN during checkout, and we will flash this module with the latest official GM software specific to your car. It arrives at your door ready to install, saving you hundreds of dollars and significant downtime.
A Technician’s Notebook: The Ghost in the Machine
I remember a 2002 Chevy Monte Carlo with the 3.4L V6—a car that shares this exact PCM—that came into my bay with a truly baffling set of problems. The owner reported intermittent no-starts, especially on hot days, and the transmission would occasionally slam into gear. He’d already replaced the battery and starter to no avail. We couldn’t replicate the no-start, and no hard codes were stored, just a history of random communication errors (U-codes). Instead of throwing parts at it, we monitored the PCM’s live data stream. We noticed the 5-volt reference signal, which powers critical sensors, would drop out sporadically. This pointed directly to an internal failure in the PCM. We installed one of these pre-programmed modules, and the car ran perfectly. It’s a classic example of how a failing 2001-2003 Grand Am PCM can create ghost-like issues that are impossible to trace without pinpoint diagnostics.
Is Your GM Vehicle Showing These Signs of PCM Failure?
- ✔ Persistent Check Engine Light (CEL) that won’t clear.
- ✔ Stored diagnostic trouble codes (DTCs) like P0601, P0602, P0605, or various U-codes indicating module communication failure.
- ✔ The engine cranks but refuses to start.
- ✔ Unexplained drops in fuel efficiency.
- ✔ Rough or erratic engine idle.
- ✔ Harsh, delayed, or incorrect automatic transmission shifting.
- ✔ Failure to pass state emissions testing.
- ✔ The vehicle stalls unexpectedly while driving or at a stop.
Your Straightforward PCM Installation Guide
Installing your new PCM is a manageable job for a DIY enthusiast. While specific steps may vary slightly by model, here is a general guide. Always consult a repair manual for your specific vehicle.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the PCM: On most of these vehicles, the PCM (or ECM) is located either in the engine compartment (often inside the air filter box assembly on the driver’s side) or under the dash (common for the Grand Am and Alero, on the LH center dash).
- Disconnect the Wiring Harnesses: Carefully unclip and disconnect the large electrical connectors from the old module. These connectors have locking tabs that need to be released before pulling. Avoid forcing them.
- Remove the Old Module: Unbolt the old PCM from its mounting bracket. Keep the hardware as you will need it for the new module.
- Install the New Module: Mount your new, pre-programmed PCM onto the bracket and secure it with the original hardware.
- Reconnect Everything: Firmly plug the wiring harnesses back into the new module until they click into place. Reconnect the negative battery terminal.
- Perform Security Relearn (If Necessary): In some cases, a simple security relearn procedure is required. This typically involves turning the key to the ‘ON’ position for 10-15 minutes, then ‘OFF’, and repeating two more times. Your vehicle will then recognize the new PCM.
Verified Fitment for Your GM Vehicle
This module is a direct-fit replacement for the following vehicles, ensuring proper function and communication. Please verify your part number or contact us with your VIN if you have any questions.
- Alero: 2001-2003 (3.4L)
- Aurora: 2001-2002 (3.5L)
- Aztek: 2001-2003
- Century: 2001-2002
- Grand Am: 2001-2003 (3.4L)
- Grand Prix: 2001-2003 (3.1L)
- Impala: 2001-2003 (3.4L)
- Intrigue: 2001-2002
- Lumina Car: 2001
- Malibu: 2001-2003
- Montana: 2001-2002
- Monte Carlo: 2001-2003 (3.4L)
- Regal: 2000-2002
- Rendezvous: 2002-2003
- Silhouette: 2001-2002
- Venture: 2001-2003
Frequently Asked Questions
Do I need to get this module programmed by a dealer?
No. This is the primary benefit of our service. We program the module to your car’s specific VIN before we ship it. It arrives ready for installation, saving you the time and expense of a dealership visit.
What is a VIN and why do you need it?
The VIN (Vehicle Identification Number) is a unique 17-digit code for your car. It contains critical information about its make, model, engine, and factory-installed options. We use the VIN to load the exact, correct GM software onto your PCM for perfect compatibility.
Where is the PCM located on my 2002 Grand Am?
On the 2001-2003 Pontiac Grand Am, the PCM (often called ECM in service manuals for this car) is typically located inside the vehicle, behind the lower left-hand side of the dashboard, near the center console area.
Will this fix my check engine light?
If the check engine light is caused by an internal fault within the PCM (like codes P0601-P0606), then yes, this module will resolve the issue. However, you should always diagnose the stored codes first to ensure the problem isn’t a faulty sensor or other component.
What is the difference between a PCM, ECM, and ECU?
The terms are often used interchangeably. ECM (Engine Control Module) typically just controls the engine. PCM (Powertrain Control Module) controls both the engine and the automatic transmission. ECU (Electronic Control Unit) is a more generic term. For these GM vehicles, this part functions as the PCM.
