Restore Control and Reliability to Your GM Truck
Are you chasing electrical gremlins in your 2000 GMC Yukon, Tahoe, or Suburban? Flickering lights, malfunctioning power windows, a security system that acts on its own, or an intermittent no-start condition can all point to a single culprit: a failing Body Control Module (BCM). As the central command center for your truck’s body electronics, a faulty BCM can make your reliable vehicle feel unpredictable. This module is the definitive solution, arriving pre-programmed to your vehicle’s specific VIN for a straightforward installation.
Case Study: The Ghost in the Machine
I remember a 2000 Tahoe that came into my shop with a truly baffling set of symptoms. The owner had already replaced the battery and alternator, but the interior lights would still pulse randomly and the truck would occasionally refuse to crank. A standard code scan showed nothing conclusive. After checking the main power and ground connections, my experience pointed toward the BCM. These early GMT800 modules are notorious for internal solder joint failures. We installed a VIN-programmed BCM, and it was like flipping a switch—every issue vanished. It’s a classic case where the problem isn’t the power source, but the brain controlling it.
Is Your GM Truck Showing These Signs?
A failing BCM can manifest in numerous ways. If you’re experiencing any of the following, this module is likely the fix you need:
- âś” Erratic or non-functional power windows, door locks, or mirrors.
- âś” Interior dome lights or dashboard lights flickering or staying on.
- âś” The security light flashing, preventing the engine from starting (a common PassLock issue).
- âś” Horn honking randomly or not working at all.
- âś” Inconsistent gauge cluster operation.
- âś” Communication loss codes (U-codes) stored in other modules.
The Power of Pre-Programmed Convenience
The biggest hurdle in replacing a BCM has always been the expensive programming required at a dealership. We eliminate that step entirely. Simply provide us with your vehicle’s VIN during checkout, and our technicians will flash this 2000 Yukon BCM with the latest GM software updates specific to your truck. It arrives at your door ready for installation, saving you significant time, money, and hassle. Plus, with our no-core-charge policy, you can keep your old module without worrying about returns or extra fees.
A Straightforward Guide to Installation
- âś” Safety First: Always disconnect the negative terminal from your vehicle’s battery before beginning any electrical work.
- âś” Locate the BCM: On these models, the BCM is typically found under the driver’s side of the dashboard, to the left of the steering column.
- âś” Remove the Old Module: Carefully unplug the electrical connectors. They have locking tabs that need to be depressed. Once unplugged, unbolt the module from its mounting bracket.
- âś” Install the New BCM: Mount the new module in place and securely reconnect all electrical harnesses. Ensure they click into place.
- âś” Reconnect Power: Reattach the negative battery terminal.
- ✔ Perform Final Checks: Start the vehicle and test all body functions—windows, locks, lights, and radio—to confirm the repair. Note the post-installation procedures below.
Important Post-Installation Information
While this module is programmed for your VIN, some vehicle security and safety systems may require a ‘handshake’ procedure after installation. This is normal for modern vehicle electronics.
- Airbag System Sync: If the airbag warning light is illuminated after installation, a ‘Setup SDM Primary Key in BCM’ procedure is necessary. This requires a professional-grade diagnostic tool to sync the new BCM with the airbag system.
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor recalibration may be needed to ensure correct brake light operation and to satisfy the traction control system.
Disclaimer: Specific procedures can vary. Always consult a factory service manual or a qualified technician for guidance.
Will This Fit My Truck?

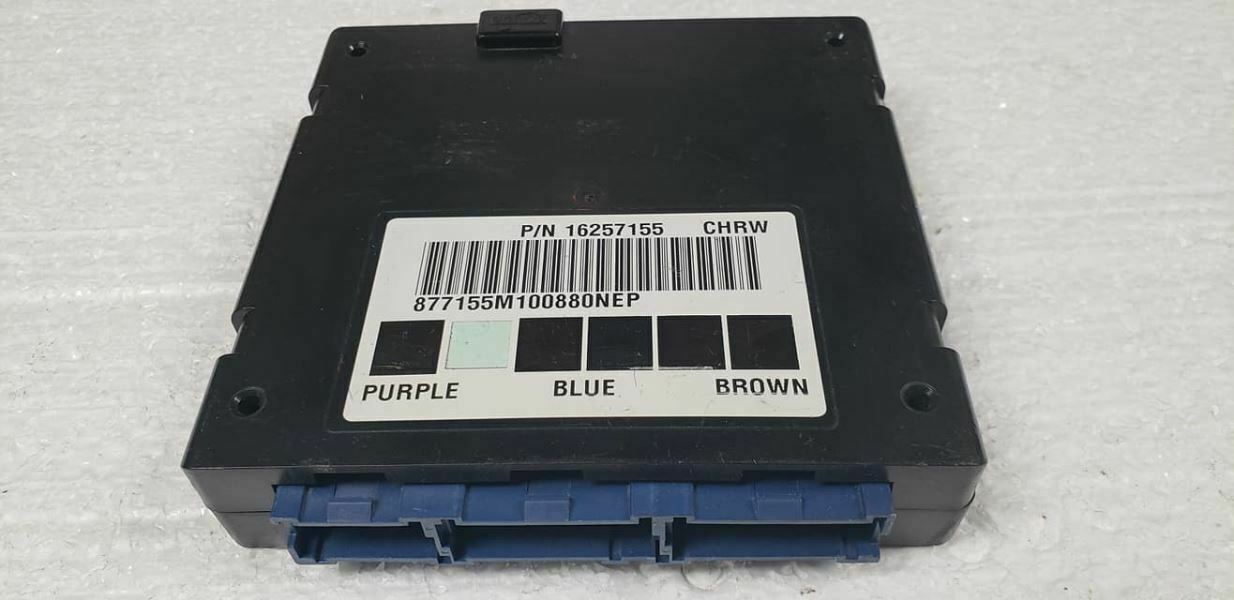

This Body Control Module is a direct-fit replacement for units with part number 09377486, 16257155, or 15136876. It is guaranteed to fit the following vehicles:
- 2000 Chevrolet Suburban 1500 (ID 9377486)
- 2000 Chevrolet Suburban 2500 (ID 9377486)
- 2000 Chevrolet Tahoe (ID 9377486)
- 2000 GMC Yukon (exc. Denali) (ID 9377486)
- 2000 GMC Yukon XL 1500 (ID 9377486)
- 2000 GMC Yukon XL 2500 (ID 9377486)
Frequently Asked Questions About the 2000 Yukon BCM
Frequently Asked Questions
What does a Body Control Module (BCM) do?
The BCM acts as the computer for your vehicle’s non-engine related functions. It controls features like power windows, locks, interior and exterior lighting, the security system, and the instrument cluster.
Why do you need my VIN?
Your Vehicle Identification Number (VIN) allows us to program the BCM with the exact software and settings your specific truck left the factory with, including any official GM updates. This ensures compatibility and proper function right out of the box.
Is this part difficult to install for a DIYer?
The physical replacement is straightforward for someone with basic mechanical skills. It involves removing a few dash panels and unplugging connectors. The key benefit of our module is that the complex software programming is already done for you.
Do I have to send my old BCM back?
No. This product comes with no core charge. You can keep your original module, which can be helpful for future reference if needed.
Will I need a special tool for the airbag light?
If the airbag light comes on after installation, yes. The ‘Setup SDM Primary Key’ procedure requires a bi-directional scan tool that can perform system relearns. Most professional repair shops and some advanced DIY mechanics will have this equipment.
