Restore Your Truck’s Electrical System with a Reliable BCM
If your 2000 Suburban 2500 is plagued by bizarre electrical issues—like power windows with a mind of their own, flickering interior lights, or a security system that won’t cooperate—you’re likely dealing with a failing Body Control Module (BCM). As the central hub for your vehicle’s body electronics, a faulty BCM can cause a cascade of frustrating and unpredictable problems. This isn’t just an annoyance; it can affect vehicle security and safety systems. I’ve seen firsthand how a failing BCM can mimic a dozen other issues, leading to wasted time and money on incorrect diagnoses.
This replacement Body Control Module is the definitive solution. We take the guesswork out of the repair by pre-programming the module to your vehicle’s specific VIN. This means it arrives at your door with the latest GM software updates already installed, ready for a straightforward installation. You get a reliable part that restores full functionality without the high cost and hassle of dealership programming.
Case Study: A Tricky Diagnosis
A customer brought in a 2000 Sierra 1500 with a complaint that was all over the map. The radio would turn on and off, the dome light would stay on, and occasionally the truck wouldn’t start, showing only a security light on the dash. They had already replaced the battery and alternator. After connecting my scan tool, I found a series of U-codes (communication errors) pointing to a network problem. By isolating modules, I traced the issue to the BCM. It was intermittently failing, corrupting the data bus and causing chaos. Installing a VIN-programmed 2000 Suburban 2500 BCM (the same family of part) resolved all symptoms instantly. This is a classic failure pattern for these modules.
Common Signs of a Failing GM BCM
- ✔ Erratic or non-functional power windows, door locks, and mirrors.
- ✔ Interior or exterior lights flickering, staying on, or not working at all.
- ✔ The security system light (PassLock/PassKey) stays illuminated, preventing the engine from starting.
- ✔ Horn honking unexpectedly or not working when pressed.
- ✔ Diagnostic trouble codes (DTCs) related to communication loss (U-codes) or specific body functions.
- ✔ Wipers activating on their own or not parking in the correct position.
A Straightforward Guide to Installation
- ✔ Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- ✔ Locate the BCM: On most of these GM trucks and SUVs, the BCM is located under the driver’s side of the dashboard, to the left of the steering column. You may need to remove a lower dash panel for access.
- ✔ Disconnect and Remove: Carefully unplug the electrical connectors from the old module. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the old BCM from its mounting bracket.
- ✔ Install the New Module: Mount your new, pre-programmed BCM in the same location. Reconnect all electrical connectors, ensuring they click securely into place.
- ✔ Reconnect Battery: Reattach the negative battery terminal.
- ✔ Perform Post-Install Checks: Start the vehicle and test all body functions—lights, locks, windows, wipers, etc. Note the information below regarding potential follow-up procedures.
Important Post-Installation Information
While this module is programmed for your VIN, certain vehicle security and safety systems may require a ‘handshake’ procedure after installation. This is standard for many modern vehicle repairs.
- Airbag System Sync: If your airbag warning light is on after installation, a professional scan tool is needed to perform the ‘Setup SDM Primary Key in BCM’ procedure. This syncs the new BCM with the airbag system.
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor relearn may be required to ensure correct brake light and traction control operation.
- No Core Charge: You can keep your old module! There is no core charge or need to return your original part, saving you time and shipping costs.
Disclaimer: Vehicle systems vary. For detailed procedures specific to your exact model, always consult a factory service manual or a qualified automotive technician.
Will This Fit My Truck or SUV?

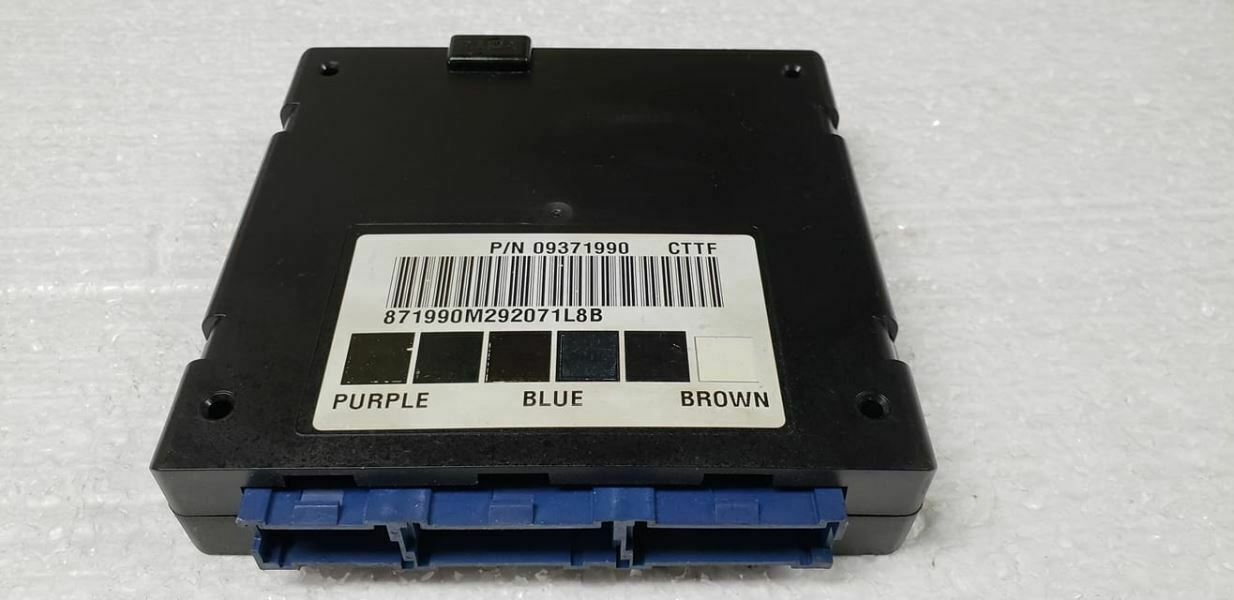

This module is a direct replacement for part number 9385236 and is also compatible with service numbers 19208539 and 9371990. It is confirmed to fit the following vehicles:
- 2000 Chevy Silverado & GMC Sierra 1500/2500
- 2000 Chevy Suburban & GMC Yukon XL 1500/2500
- 2000 Chevy Tahoe & GMC Yukon (exc. Denali)
- 2001 Chevy S10/Blazer & GMC S15 Sonoma/Jimmy
- 2001 Oldsmobile Bravada
- 2001 Chevy Astro & GMC Safari
Frequently Asked Questions
Do I have to get this programmed at the dealership?
No. We handle the programming for you before we ship. Simply provide your vehicle’s VIN during checkout, and the module will arrive ready to install with the latest GM software for your specific vehicle.
What is a BCM and what does it do?
The Body Control Module (BCM) is a computer that acts as the brain for your vehicle’s body electronics. It controls non-engine related functions like power windows, locks, interior/exterior lighting, the security system, wipers, and more.
Is this a difficult part to replace for a DIYer?
The physical replacement is generally straightforward for someone with basic mechanical skills. It’s typically located under the dash and involves unplugging connectors and removing a few bolts. The main consideration is the potential need for post-install relearn procedures, which may require a pro-level scan tool.
Do I need to send my old BCM back?
No, there is absolutely no core charge for this part. You can keep your original module, which saves you the hassle and expense of return shipping.
What happens if my airbag light comes on after I install it?
This can happen because the new BCM needs to be electronically synced with the vehicle’s airbag module (SDM). A qualified mechanic with a bidirectional scan tool will need to perform the ‘Setup SDM Primary Key in BCM’ procedure to complete the handshake and turn off the light.
