Restore Full Functionality to Your GM Truck or SUV
Are you battling frustrating electrical issues in your 2000 Chevrolet Suburban 1500? As a technician with over two decades of experience, I’ve seen firsthand how a failing Body Control Module (BCM) can turn a reliable truck into a source of constant headaches. From flickering lights and malfunctioning power windows to a security system that won’t cooperate, the BCM is the central command for your vehicle’s body electronics. When it fails, the symptoms can be unpredictable and maddening. This module is the definitive solution, arriving at your door programmed to your vehicle’s specific VIN with the latest GM software updates.
Common Signs of a Failing BCM
If you’re experiencing any of the following, a faulty BCM is the likely culprit. I’ve diagnosed these exact issues on hundreds of GM trucks and SUVs from this era.
- ✔ Erratic or non-functional interior and exterior lights (dome lights, headlights).
- ✔ Power windows, door locks, or mirrors working intermittently or not at all.
- ✔ The security or anti-theft system engaging randomly, causing a no-start condition.
- ✔ Gauges on the instrument cluster behaving erratically or dropping out.
- ✔ The radio or climate control system turning on or off by itself.
- ✔ Diagnostic Trouble Codes (DTCs) such as U0140, B1000, or other communication errors stored in the system.
Case Study: A Tricky Diagnosis
I remember a 2000 Silverado 1500 that came into the shop with the owner convinced he needed a new alternator. His dash lights would flicker, and sometimes the radio would cut out. We tested the charging system, and it was perfect. After digging into the schematics and running a network test, we found communication dropping between the instrument panel and the BCM. It turned out that internal corrosion on the BCM board was causing voltage drops, mimicking a charging system fault. A new, programmed BCM like this one solved every single issue instantly. It’s a classic example of how a faulty 2000 Suburban 1500 BCM can send you chasing the wrong problem.
A Straightforward Guide to Installation
Installing your new BCM is a manageable job for a DIYer with basic tools. The most critical part—the programming—is already done for you. Just follow these general steps:
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before working on any electrical components.
- Locate the BCM: On most of these GM trucks and SUVs, the BCM is located under the driver’s side of the dashboard, to the left of the steering column. You may need to remove a lower dash panel for access.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old module. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the old BCM from its mounting bracket.
- Install the New Module: Mount your new, pre-programmed BCM in the same location and securely plug in all the electrical connectors. You’ll hear a click as they lock into place.
- Power Up: Reconnect the negative battery terminal. Turn the key to the ‘On’ position and verify that your power accessories are working correctly.
- Post-Install Checks: In some cases, additional steps may be needed. If your airbag light is on, a professional scan tool is required to perform the ‘Setup SDM Primary Key’ procedure. A ‘Brake Pedal Position Relearn’ might also be necessary. Always consult a factory service manual for vehicle-specific details.
This replacement 2000 Suburban 1500 BCM is the most effective way to restore your vehicle’s electronics to factory-perfect condition without the high cost and hassle of a dealership visit. We handle the complex programming so you can handle the installation.
Verified Vehicle Compatibility

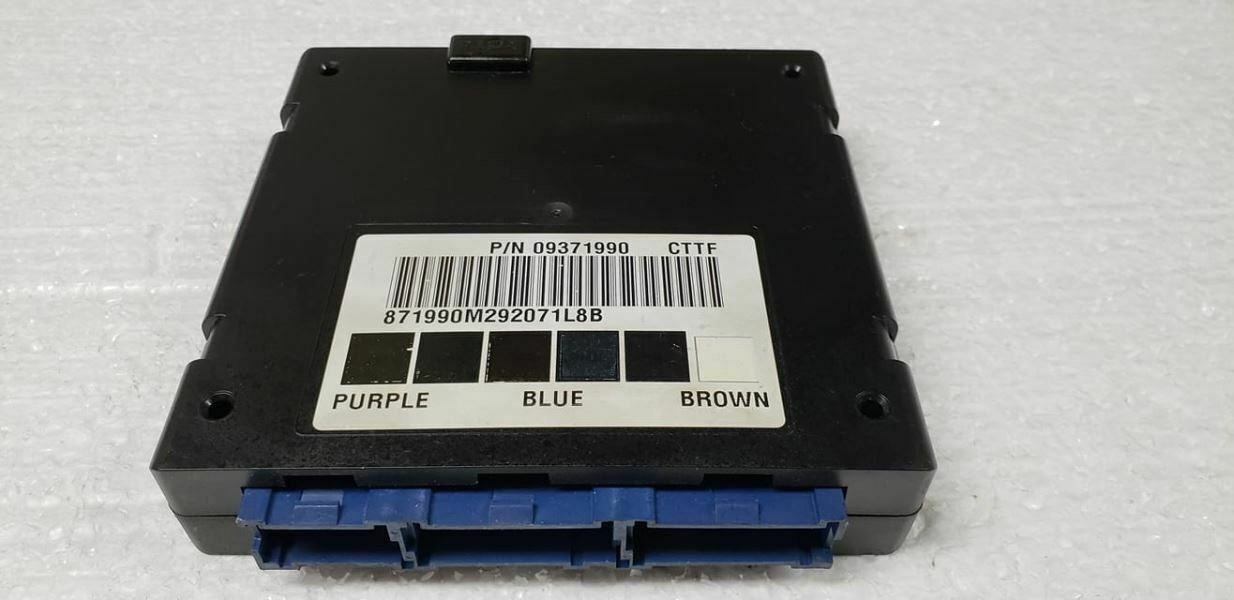

This module is a direct-fit replacement for vehicles matching the part numbers 19208539, 9371990, or 9385236. It is guaranteed to fit the following models and options:
- ✔ 2000 Chevrolet Silverado & GMC Sierra 1500/2500 Pickup (LH dash)
- ✔ 2000 Chevrolet Tahoe & GMC Yukon (exc. Denali) (LH dash)
- ✔ 2000 Chevrolet Suburban & GMC Yukon XL 1500/2500 (LH dash)
- ✔ 2001 Chevrolet Blazer S10 & GMC Jimmy S15 (center dash)
- ✔ 2001 Chevrolet S10 & GMC Sonoma Pickup (center dash)
- ✔ 2001 Oldsmobile Bravada (center dash)
- ✔ 2001 Chevrolet Astro & GMC Safari (LH dash)
Why is providing my VIN so important?
Your Vehicle Identification Number (VIN) allows us to program the BCM with the exact software and settings for your truck’s specific options, like keyless entry, power seats, and security system. This ensures a true plug-and-play installation.
Do I need to send my old BCM back?
No. This purchase comes with a no-hassle, no-core-charge policy. You can keep your original module.
What tools are needed for the installation?
You’ll typically only need basic hand tools like a socket set and a trim removal tool to access the BCM under the dashboard. No special programming tools are required on your end.
My airbag light came on after installation. What should I do?
This is a known possibility. The new BCM needs to be synced with the airbag’s Sensing and Diagnostic Module (SDM). This requires a professional-grade scan tool to perform the ‘Setup SDM Primary Key in BCM’ procedure to clear the light.
Will this fix my ‘Service 4WD’ light?
While a BCM can cause a wide range of issues, a ‘Service 4WD’ message is more commonly related to the Transfer Case Control Module (TCCM) or the encoder motor. It’s best to have the codes scanned to pinpoint the exact cause before ordering a BCM for that specific issue.
