Are you chasing electrical gremlins in your 2000-2004 Chevrolet Impala or Monte Carlo? From flickering lights and malfunctioning power windows to the dreaded “SECURITY” light that leaves you stranded, a failing Body Control Module (BCM) is often the culprit. As the central command center for your car’s body electronics, its failure can cause a host of frustrating and seemingly unrelated issues. This isn’t just an inconvenience; it can be a major safety concern when lights or security systems act unpredictably.

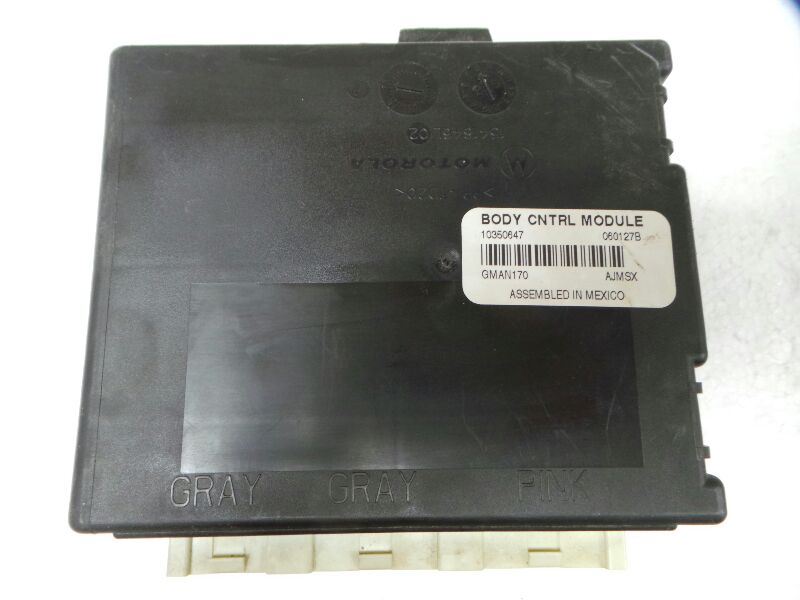

This is a direct-fit replacement Body Control Module, arriving at your door fully programmed to your vehicle’s specific VIN. We load the latest GM software updates, ensuring optimal performance and communication with your car’s other electronic systems. By providing your VIN at checkout, you eliminate the need for an expensive trip to the dealership for programming, saving you both time and money. This is the reliable, straightforward solution to restore your vehicle’s proper function.
From the Diagnostic Bay: The Ghost in the Impala
I remember a 2002 Impala that came into my shop with a laundry list of bizarre symptoms. The owner said the radio would switch stations on its own, the interior lights would pulse, and occasionally the car wouldn’t start, showing the security light. He’d already replaced the battery and checked the alternator. My initial scan showed a dozen communication codes (U-codes). After checking the main data bus network for shorts, I focused on the BCM. These early 2000s GM BCMs are notorious for internal solder joint failures. A new, properly programmed 2000-2004 Impala BCM resolved every single issue. It’s a classic failure I’ve diagnosed hundreds of times, and a pre-programmed module is the most efficient fix.
Signs Your Body Control Module is Failing
- ✔ Intermittent or non-working power windows, door locks, or mirrors.
- ✔ The “SECURITY” light is illuminated on the dashboard, often causing a no-start condition.
- ✔ Headlights, taillights, or interior dome lights behave erratically or won’t turn off.
- ✔ The horn honks randomly or the alarm system triggers for no reason.
- ✔ Your key fob stops working reliably.
- ✔ Communication-related Diagnostic Trouble Codes (DTCs), such as U0140, U0155, or other U-codes, are present.
Your Step-by-Step Installation Guide
- ✔ Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- ✔ Locate the BCM: On the 2000-2004 Impala and Monte Carlo, the BCM is located under the driver’s side of the dashboard, to the left of the steering column. You may need to remove the lower dash panel for access.
- ✔ Disconnect and Remove: Carefully unplug the electrical connectors from the old BCM. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the module from its mounting bracket.
- ✔ Install the New Module: Mount your new, pre-programmed BCM in the same location. Reconnect all the electrical connectors, ensuring they click securely into place.
- ✔ Reconnect Power: Reattach the negative battery terminal. Turn the key to the ‘ON’ position (without starting the engine) and test all body functions like windows, locks, and lights.
Important Post-Installation Steps
After installing your new 2000-2004 Impala BCM, a couple of additional procedures may be necessary:
- Airbag System Sync: If the airbag warning light is on after installation, the modules need to be re-synced. A professional scan tool is required to perform the ‘Setup SDM Primary Key in BCM’ procedure to clear the light.
- Brake Pedal Position (BPP) Relearn: In some cases, a BPP sensor relearn may be needed to ensure proper brake light and traction control operation. This can also be done with a capable diagnostic tool.
Disclaimer: Vehicle systems can vary. We always recommend consulting a factory service manual or a certified technician if you are unsure about any step.
Verified Vehicle Compatibility
This module is a guaranteed fit for the following vehicles and replaces multiple original part numbers, ensuring you get the correct component. It is compatible with service numbers: 10323612, 10340320, 10350647, 10432318, 10432571, 10438145, and 10445875.
- 2000-2004 Chevrolet Impala – Body Control (BCM); (LH steering column)
- 2000-2004 Chevrolet Monte Carlo – Body Control (BCM); (LH steering column)
Frequently Asked Questions
Why do you need my VIN?
We require your Vehicle Identification Number (VIN) to program the BCM with your car’s specific software and factory options. This ensures it works correctly right out of the box, just like a module from the dealership.
Do I need to return my old BCM?
No. There is no core charge for this part. You can keep your original module.
Is this a plug-and-play installation?
Yes, the module is plug-and-play because we pre-program it. However, as noted, some vehicles may require an additional relearn procedure for the airbag or brake pedal position sensor if a warning light appears after installation.
What tools are needed for the post-installation procedures?
The Airbag System Sync and Brake Pedal Position Relearn require a professional-grade bidirectional scan tool. Most basic code readers cannot perform these functions. Many local repair shops can perform these procedures for you if needed.
Will this fix my ‘SECURITY’ light issue?
A faulty BCM is the most common cause of a persistent ‘SECURITY’ light and no-start condition on these Impalas and Monte Carlos. While other issues can cause it, replacing a failed BCM very often resolves this problem.
