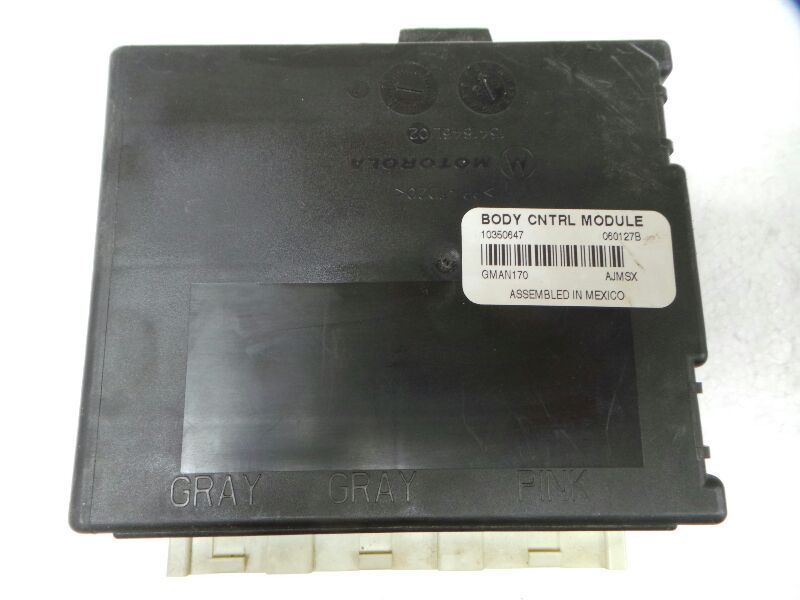

Restore Control and End Electrical Frustrations in Your GM Sedan
If you’re dealing with bizarre electrical issues in your 2000-2004 Chevrolet Impala or Monte Carlo, you’re not alone. Flickering lights, malfunctioning power windows and locks, a security light that won’t turn off, or even a car that refuses to start are all classic signs of a failing Body Control Module (BCM). As a technician with over two decades of experience, I’ve seen how a faulty BCM can turn a reliable car into a source of daily frustration. This module is the central command for your vehicle’s body electronics, and when it fails, it creates a cascade of problems. This replacement BCM is the definitive, hassle-free solution to get your car back to normal.
The biggest hurdle in replacing a BCM has always been the expensive and time-consuming programming required at a dealership. We eliminate that step entirely. Simply provide us with your vehicle’s VIN during checkout, and we will program the module with the latest GM software specifically for your car. It arrives at your door ready for installation, saving you time, money, and a trip to the service center. This is the most direct path to fixing those nagging electrical gremlins for good.
A Technician’s Notebook: The Ghost in the Impala
I remember a 2003 Impala that came into the shop with a list of symptoms that sounded like a poltergeist. The owner said the radio would turn on by itself, the security light would flash randomly while driving, and sometimes the car just wouldn’t crank. He’d already replaced the battery and checked the alternator. After hooking up my scan tool, I saw multiple communication loss codes (U-codes) pointing to the BCM. These modules, especially on this platform, are known for internal solder joint failures that cause intermittent connections. We swapped in a pre-programmed BCM, and every single issue vanished instantly. It’s a textbook case where replacing one component solves a dozen problems.
Common Signs of a Failing BCM
- ✔ Erratic or non-functional power windows, door locks, and mirrors.
- ✔ Interior dome lights or dashboard lights staying on or not working at all.
- ✔ The anti-theft or security light is illuminated, often causing a no-start condition.
- ✔ Horn honking unexpectedly or not working when pressed.
- ✔ False warnings on the driver information center (e.g., “Service Vehicle Soon”).
- ✔ Communication loss codes (U-codes) stored in other modules.
A Straightforward Guide to BCM Installation
- ✔ Safety First: Always disconnect the negative terminal from your car’s battery and wait a few minutes before beginning work.
- ✔ Locate the BCM: On the 2000-2004 Impala and Monte Carlo, the BCM is located under the driver’s side dashboard, to the left of the steering column. You may need to remove a lower dash panel for access.
- ✔ Disconnect and Remove: Carefully unplug the electrical connectors from the old BCM. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the module from its mounting bracket.
- ✔ Install the New Module: Mount your new, pre-programmed BCM in the same location. Securely plug in all the electrical connectors, ensuring they click into place.
- ✔ Reconnect and Test: Reconnect the negative battery terminal. Turn the key to the ‘On’ position and test all functions: windows, locks, lights, and horn. Start the vehicle to ensure it runs correctly.
- ✔ Perform Final Procedures: In some cases, post-installation steps may be needed. Please see the important notes below.
Important Post-Installation Information
While this module is programmed for a direct installation, some vehicle systems may require a final handshake to recognize the new BCM. Please be aware of the following potential procedures:
- Airbag System Sync: If your airbag warning light is on after installation, a professional scan tool is needed to perform the “Setup SDM Primary Key in BCM” procedure. This syncs the new BCM with the airbag system.
- Brake Pedal Position Relearn: To ensure correct brake light and traction control operation, a brake pedal position sensor relearn might be necessary.
Disclaimer: Specific procedures can vary. Always consult a factory service manual or a qualified technician if you are unsure.
Verified Vehicle Compatibility
This Body Control Module is a direct-fit replacement for the following vehicles and part numbers. It is programmed to function correctly for your specific VIN.
Makes and Models:
- 2000-2004 Chevrolet Impala
- 2000-2004 Chevrolet Monte Carlo
Compatible Service Numbers: 10323612, 10340320, 10350647, 10432318, 10432571, 10438145, 10445875
Frequently Asked Questions
Why do you need my VIN?
Your VIN (Vehicle Identification Number) is essential for us to program the BCM with the correct software and vehicle-specific options. This ensures it communicates properly with your car’s other modules right out of the box.
Do I need to return my old BCM?
No, there is no core charge for this part. You can keep your original module, which saves you the time and expense of shipping it back.
Is this a difficult part to install myself?
For someone with basic mechanical skills, the physical replacement is straightforward. The BCM is typically located under the driver’s side dash. The key benefit of our product is that the difficult programming step is already done for you.
What tools are needed for the post-install procedures?
If the airbag light comes on or brake sensor needs recalibration, these procedures require a professional-grade bidirectional scan tool. Many local repair shops can perform these syncs for a small fee if needed.
Will this fix my car’s security system issue?
Yes, the BCM is a critical part of the GM Passlock/Passkey anti-theft system. A failing BCM is a very common cause of security lights and no-start conditions on these vehicles. This programmed module is designed to resolve those issues.
