Tired of Chasing Electrical Gremlins in Your GM Truck?
If you’re dealing with bizarre electrical issues in your 1999-2000 GMC Sierra 2500, you’re not alone. As a technician with over two decades of experience, I’ve seen firsthand how a failing Body Control Module (BCM) can turn a reliable truck into a source of constant frustration. One day the power windows work, the next they don’t. The security light flashes for no reason, or the interior lights have a mind of their own. This isn’t just an annoyance; it’s a sign that the central nervous system for your truck’s body electronics is failing.
This replacement Body Control Module is the definitive solution. We take the hassle and high cost out of the repair by programming the module to your truck’s specific Vehicle Identification Number (VIN) before we ship it. This means no expensive trip to the dealership for programming. It arrives at your door ready for a straightforward installation, loaded with the latest GM software updates to ensure peak performance and reliability.
Case Study: A Tricky Diagnosis
I remember a 2000 Sierra 2500 that came into my shop with a classic “parasitic draw” problem—the battery would be dead every morning. The owner had already replaced the battery and alternator. We checked every fuse and circuit, but the draw was intermittent. After hours of diagnostics, we traced the issue back to the BCM. It wasn’t fully going to sleep, keeping several small relays active overnight and slowly draining the battery. Installing a VIN-programmed BCM didn’t just fix the battery drain; it also solved the owner’s other complaints of flickering dome lights and an occasionally unresponsive key fob. It’s often the one part that ties all those weird symptoms together.
Is Your Truck Showing These Symptoms?
A failing BCM can manifest in numerous ways. If you’re experiencing any of the following, this module is the likely solution:
- ✔ Erratic or non-functional power windows, door locks, or mirrors.
- ✔ Interior dome lights or dashboard lights staying on or not working at all.
- ✔ The security or anti-theft light flashing, potentially causing a no-start condition.
- ✔ Horn honking randomly or not working when pressed.
- ✔ Inconsistent operation of the radio or climate controls.
- ✔ Communication error codes (U-codes) when scanned with a diagnostic tool.
A Straightforward Guide to Installation
Replacing your 1999-2000 Sierra 2500 BCM is a job most DIYers can handle with basic tools. The module is typically located under the driver’s side of the dashboard.
- Safety First: Always disconnect the negative terminal from your truck’s battery to prevent any electrical shorts.
- Locate the BCM: On most of these trucks, you’ll find it under the driver’s side dash, to the left of the steering column. You may need to remove a lower dash panel for access.
- Disconnect and Remove: Carefully unplug the electrical connectors. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the old module from its mounting bracket.
- Install the New Module: Mount your new, pre-programmed BCM in the same location. Securely plug in all the electrical connectors, ensuring they click into place.
- Reconnect Power: Re-attach the negative battery terminal.
- Perform Key Cycle: Turn the ignition to the ‘ON’ position for 10-15 seconds, then turn it ‘OFF’. Repeat this process 2-3 times to allow the vehicle’s systems to recognize the new module.
- Check Functionality: Test your windows, locks, lights, and other accessories. Note that some post-install procedures may be necessary as outlined below.
Important Post-Installation Information
While this module is programmed for your VIN, some vehicle systems may require a ‘handshake’ with the new BCM. This is normal. Be aware of the following potential procedures:
- Airbag System Sync: If your airbag warning light is on after installation, a professional scan tool is needed to perform the “Setup SDM Primary Key in BCM” procedure. This syncs the airbag system with the new BCM.
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor recalibration might be required to ensure proper brake light and traction control operation.
Disclaimer: Specific procedures can vary. Always consult a factory service manual or a qualified technician for guidance.
Will This Fit My Vehicle?

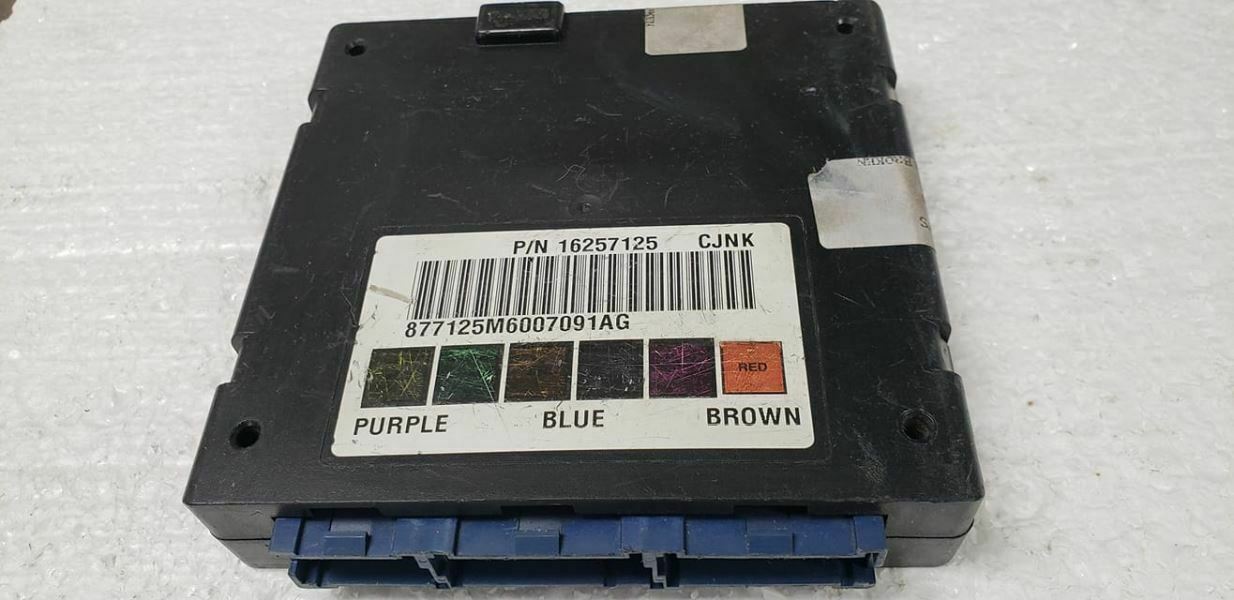

This BCM is a direct replacement for part numbers 19153625, 8191536250, 16257125, 191583625, 8093668010, 8162571250, 09366801 and is guaranteed to fit the following vehicles:
- 1999-2000 GMC Sierra 1500/2500 Pickup
- 1999-2000 Chevrolet Silverado 1500/2500 Pickup
- 1998-2000 Chevrolet S10 / GMC S15/Sonoma
- 1998-2000 Chevrolet Blazer / GMC Jimmy
- 2000 Chevrolet Astro / GMC Safari
- 1998 Oldsmobile Bravada (w/ extended build date opt ZN4)
- 1999-2000 Isuzu Hombre
Frequently Asked Questions
Why do you need my VIN?
We require your Vehicle Identification Number (VIN) to program the BCM with your truck’s exact software and factory options. This ensures it works correctly right out of the box, saving you a trip to the dealer for expensive programming.
Is this a simple plug-and-play installation?
Yes, for the most part. The physical installation is plug-and-play. Because it comes pre-programmed, you will not need a scan tool for initial setup. However, as noted, some models may require a simple relearn procedure for the airbag or brake systems if a warning light appears.
Do I need to send my old BCM back?
No. There is no core charge for this part. You can keep your original module, which can be helpful if you ever need to reference old part numbers.
What tools are required for the airbag or brake relearn procedures?
These procedures require a professional-grade bidirectional scan tool, such as a Tech 2, Snap-on, or Autel scanner. Most local repair shops have this equipment if you are not able to perform the procedure yourself.
Will this fix my check engine light?
A BCM typically controls body functions, not engine performance. If your primary issue is a check engine light related to engine or transmission codes (P-codes), you likely need an Engine Control Module (ECM) or Powertrain Control Module (PCM), not a BCM.
