Tired of Chasing Electrical Gremlins in Your Truck?
If you’re dealing with flickering lights, power windows with a mind of their own, or a security system that won’t cooperate, you’re not alone. As a technician with over two decades of experience, I’ve seen how a failing Body Control Module (BCM) can turn a reliable truck into a source of constant frustration. The BCM is the central command for your vehicle’s body electronics, and when it starts to fail, it can create a cascade of bizarre, hard-to-diagnose issues. This isn’t just an annoyance; it can be a safety concern if your exterior lights or security features are compromised.
This isn’t just a replacement part; it’s a complete solution. We take the guesswork and hassle out of the repair by programming this module specifically for your vehicle using your VIN. It arrives loaded with the latest GM software updates, ensuring optimal performance and communication with your truck’s other systems. You get a reliable fix without the expensive trip to the dealership for programming.
A Technician’s Notebook: The Silverado That Wouldn’t Behave
I remember a 1999 Silverado 1500 that came into the shop with a laundry list of complaints from the owner. The dome light would stay on, the radio presets would randomly reset, and the power door locks worked only when they felt like it. The owner had already replaced the battery and checked all the fuses. We hooked up the scanner and saw a handful of communication codes pointing to the BCM. Instead of a lengthy diagnostic process, we installed a VIN-programmed BCM like this one. In under an hour, every single one of the truck’s quirky electrical problems was gone. It’s a prime example of how the right part, correctly prepared, is the most efficient solution.
Is Your Truck Showing These Symptoms?
- ✔ Intermittent or non-working power windows, locks, or mirrors.
- ✔ The security or anti-theft light is flashing, preventing the engine from starting.
- ✔ Interior or exterior lights flicker, stay on, or don’t turn on at all.
- ✔ The horn honks unexpectedly or doesn’t work.
- ✔ Inaccurate or erratic gauge readings on the instrument cluster.
- ✔ Diagnostic Trouble Codes (DTCs) related to communication errors (U-codes) or BCM internal faults.
A Straightforward Guide to Your 1999-2000 Isuzu Hombre BCM Installation
Replacing the BCM is a manageable job for a confident DIYer. The key is taking your time and being gentle with the plastic dash components. This pre-programmed module makes the electronic side of the job simple.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait about 10 minutes to ensure all systems are powered down.
- Locate the BCM: On your 1999-2000 Isuzu Hombre (and similar GM trucks), the BCM is typically located on the left-hand (driver’s) side of the dashboard, often behind the lower dash panel near the steering column.
- Access the Module: You will likely need to remove the lower dash panel trim to get a clear view and access to the BCM. It’s usually held in by a few screws or clips.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old BCM. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the module from its mounting bracket and remove it from the vehicle.
- Install the New BCM: Mount your new, VIN-programmed BCM onto the bracket and securely plug in all the electrical connectors. You should hear a click as they lock into place.
- Reassemble and Reconnect: Reinstall the dash trim panel. Reconnect the negative battery terminal.
- Post-Installation Checks: Turn the key to the ‘On’ position and test all body functions: windows, locks, lights, wipers, etc. Note that some vehicles may require the additional procedures outlined below.
Important Post-Installation Notes
While this module is programmed for your VIN, your vehicle’s security and safety systems may need to re-sync. This is normal. If you encounter the following, a professional scan tool will be required:
- Airbag System Sync: If the airbag warning light is on after installation, a procedure called ‘Setup SDM Primary Key in BCM’ is needed to sync the systems.
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor recalibration may be necessary for proper brake light and traction control operation.
No Core Charge: You are not required to send your old BCM back to us. You can keep it, recycle it, or dispose of it as you see fit.
Verified Vehicle Compatibility

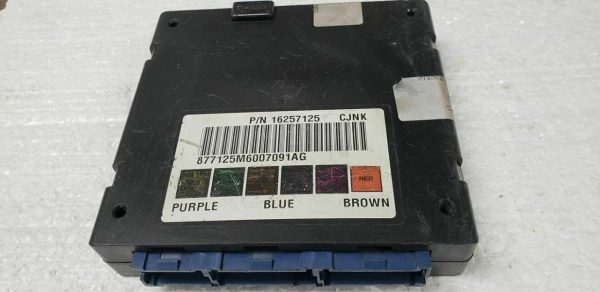

This module is a direct replacement for part numbers 19153625, 8191536250, 16257125, 191583625, 8093668010, 8162571250, and 09366801. It is guaranteed to fit the following vehicles:
- 1999-2000 Isuzu Hombre (LH dash)
- 1998-2000 Chevrolet S10 / GMC S15/Sonoma (center dash, ID 16257125)
- 1998-2000 Chevrolet Blazer S10 / GMC Jimmy S15 (center dash, ID 16257125)
- 1999-2000 Chevrolet Silverado 1500/2500 (LH dash)
- 1999-2000 GMC Sierra 1500/2500 (LH dash)
- 2000 Chevrolet Astro (LH dash)
- 2000 GMC Safari (LH dash)
- 1998 Oldsmobile Bravada (center dash, w/ extended build date opt ZN4)
Frequently Asked Questions
Why do you need my VIN?
Your Vehicle Identification Number (VIN) allows us to program the BCM with the exact software and settings for your truck’s specific options and features. This ensures it works correctly right out of the box, saving you a costly programming fee at a dealership.
Is this a difficult part to install myself?
For someone with basic mechanical skills, this is a very manageable job. The main challenge is accessing the module behind the dashboard trim. Since our module is pre-programmed, there is no complex computer work required on your end.
What tools are needed for the post-installation procedures?
The Airbag System Sync and Brake Pedal Position Relearn procedures require a professional-grade bidirectional scan tool, such as a Tech 2 or equivalent. Most DIY code readers cannot perform these specific functions. Many local repair shops can perform these relearns for a small fee if needed.
Do I need to send my old BCM back?
No. There is no core charge for this part. You can keep your original module.
What if I install it and still have problems?
While this BCM will fix issues caused by a faulty module, it won’t fix underlying problems like bad wiring or a faulty switch. If issues persist, we recommend double-checking all connections and considering a full vehicle diagnostic by a qualified technician.
