Restore Control and Reliability to Your GM Truck
If you’re dealing with baffling electrical issues in your 1998-2000 S10, Silverado, or other compatible GM truck, you know the frustration. Flickering lights, malfunctioning power accessories, or a security system that leaves you stranded—these are classic signs of a failing Body Control Module (BCM). As the central hub for your vehicle’s body electronics, a faulty BCM can create a cascade of problems that are often difficult to diagnose. This isn’t just an inconvenience; it affects your truck’s daily usability and security.
We offer a dependable and straightforward solution. This BCM is meticulously tested and comes programmed to your vehicle’s specific Vehicle Identification Number (VIN). We install the latest GM software updates, ensuring optimal performance and compatibility right out of the box. This eliminates the need for an expensive trip to the dealership for programming. Simply provide your VIN during checkout, and we handle the rest, shipping you a module that’s ready for installation.
From the Diagnostic Bay: The Ghost in the Machine
I remember a 1999 Silverado that rolled into my shop with a list of complaints that sounded like a poltergeist. The radio would cut out, the dome light would flicker, and the power windows would randomly stop working. The owner had spent a weekend chasing grounds and checking fuses with no luck. After connecting my scan tool, I saw intermittent communication loss codes across multiple systems. While it could have been a wiring issue, my experience with these GM platforms pointed me straight to the BCM. These modules, after 20+ years of heat cycles and vibrations, can develop internal failures that cause these exact “ghost” problems. We installed a VIN-programmed BCM, and instantly, every single issue was resolved. It’s a fix I’ve performed hundreds of times, turning a frustrating electrical nightmare into a simple, reliable repair.
Is Your Truck Showing These Symptoms?
- ✔ Erratic or non-functional power windows, door locks, and mirrors.
- ✔ Interior or exterior lights that flicker, stay on, or don’t work at all.
- ✔ The security or anti-theft system (Passlock) preventing the engine from starting.
- ✔ Inoperative radio or climate control displays.
- ✔ Gauges on the instrument cluster behaving erratically or not working.
- ✔ False warnings on the driver information center.
- ✔ Communication error codes (U-codes) when scanned with a diagnostic tool.
A Straightforward Guide to BCM Installation
Replacing your 1998-2000 S10 BCM is a manageable job for a confident DIYer. While the exact location varies slightly by model (see fitment list), the process is generally similar.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait a few minutes before beginning.
- Locate the BCM: On S10/Blazer models, it’s typically found behind the center dash area, accessible by removing the lower dash panels. On Silverado/Sierra models, it’s usually on the driver’s side, to the left of the steering column.
- Remove Connectors: Carefully unplug all electrical connectors from the old BCM. They have locking tabs that need to be depressed. Do not force them.
- Unbolt the Module: Remove the bolts or nuts securing the BCM to its mounting bracket and carefully take it out.
- Install the New BCM: Mount your new, pre-programmed BCM in place and secure it. Reconnect all electrical harnesses, ensuring they click securely into place.
- Final Steps: Reassemble your dash panels and reconnect the negative battery terminal. Start the vehicle to confirm function.
Post-Installation Note: In some cases, further steps may be needed. If your airbag light is on, a professional scan tool is required to perform the ‘Setup SDM Primary Key in BCM’ procedure. A ‘Brake Pedal Position Relearn’ might also be necessary on certain models. Always consult a factory service manual for vehicle-specific details.
Verified Fitment For These GM & Isuzu Models

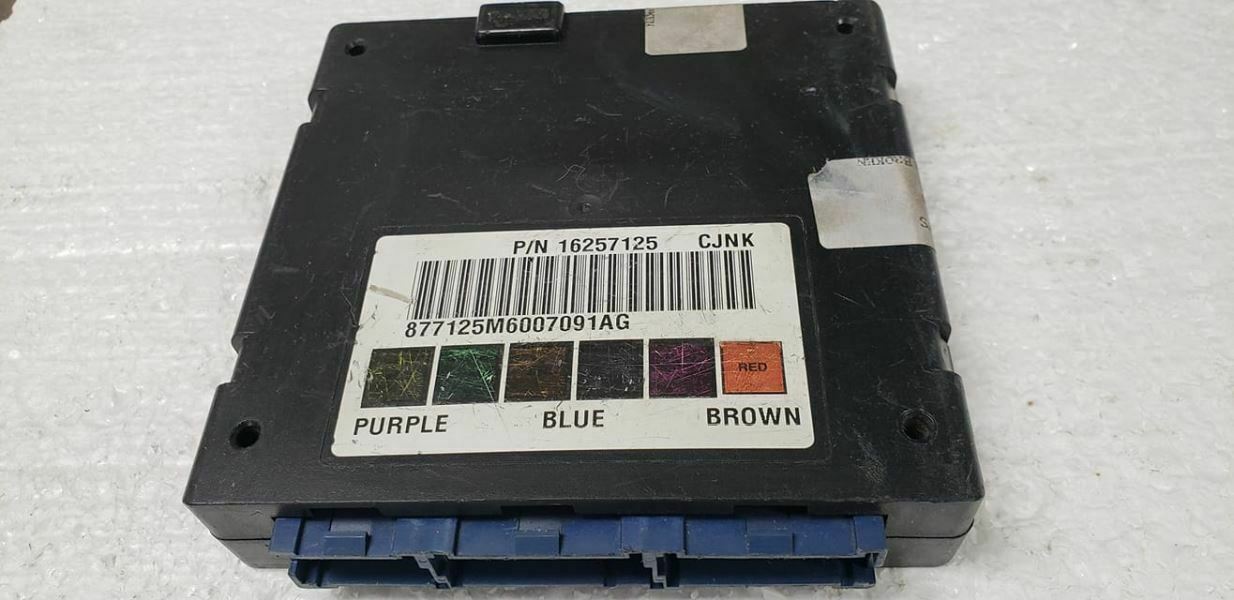

This module is a direct replacement for part numbers 16257125, 19153625, 8191536250, 191583625, 8093668010, 8162571250, and 09366801. It is guaranteed to fit the following vehicles:
- S10/S15/SONOMA 1998-2000: Body Control (BCM); (center dash), ID 16257125
- BLAZER S10/JIMMY S15 1998-2000: Body Control (BCM); (center dash), ID 16257125
- BRAVADA 1998: Body Control (BCM); (center dash), w/extended build date (opt ZN4)
- SILVERADO 1500/2500 PICKUP 1999-2000: Body Control (BCM); (LH dash)
- SIERRA 1500/2500 PICKUP 1999-2000: Body Control (BCM); (LH dash)
- ASTRO 2000: Body Control (BCM); (LH dash)
- SAFARI (GMC) 2000: Body Control (BCM); (LH dash)
- ISUZU HOMBRE 1999-2000: Body Control (BCM); (LH dash)
Frequently Asked Questions
Is this module really ready to install out of the box?
Yes. We program the module to the VIN you provide, loading the latest GM software. This means you can skip the dealership programming fees and hassle. For most vehicles, it’s a direct installation.
Do I need to return my old BCM?
No, there is no core charge for this part. You can keep your original module.
What if the airbag light comes on after installation?
This can happen occasionally. It means the new BCM needs to be electronically synced with the airbag system’s SDM module. This requires a professional-grade scan tool to perform the ‘Setup SDM Primary Key in BCM’ procedure to clear the light.
My part number is slightly different but my truck is on the fitment list. Will this work?
Yes. This BCM is a compatible replacement for a wide range of original part numbers, including 19153625, 8191536250, 16257125, and more as listed above. As long as your vehicle model and year match our fitment list, this module will work correctly once programmed to your VIN.
What does the Body Control Module (BCM) do?
The BCM acts as the brain for your vehicle’s body electronics. It controls functions like the power windows, power locks, interior and exterior lighting, security system, instrument cluster information, and radio functions. When it fails, these systems can become unreliable.
