Restore Control and End Electrical Frustrations in Your GM Truck
If you’re dealing with flickering dash lights, power windows with a mind of their own, or a security system that randomly prevents your truck from starting, you’re not alone. These are classic signs of a failing Body Control Module (BCM), the electronic nerve center of your vehicle. In my 20+ years as a technician, I’ve seen how a faulty BCM can turn a reliable truck into a source of daily headaches. This isn’t just an inconvenience; it’s a matter of reliability. This replacement BCM is the definitive solution, arriving pre-programmed with the latest GM software specifically for your vehicle’s VIN.
A customer brought in his ’99 Chevy S10 with a list of bizarre symptoms: the dome light wouldn’t turn off, the horn would chirp randomly, and sometimes the truck just wouldn’t crank. He’d already replaced the battery and checked the alternator. After hooking up the scan tool, I noticed communication errors with multiple systems, all pointing back to one component. By isolating the BCM, we confirmed it was failing internally, causing data corruption on the network. Installing a pre-programmed 1998-2000 Blazer S10 BCM like this one resolved every single issue instantly. It’s a common failure point, but thankfully, it’s a straightforward fix.
Is Your Truck Showing These Symptoms?
- ✔ Power locks or windows operating erratically or not at all.
- ✔ The security or anti-theft light stays on, causing a no-start condition.
- ✔ Interior lights flickering, staying on, or not turning on.
- ✔ Gauges on the instrument cluster behaving erratically or dropping out.
- ✔ The radio or other accessories not functioning correctly.
- ✔ Communication error codes (U-codes) stored in other modules.
- ✔ False warnings for doors being ajar or other system alerts.
A Straightforward Guide to Installation
- ✔ Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- ✔ Locate the BCM: On most 1998-2000 Blazer, Jimmy, and S10 models, the BCM is located behind the center of the dashboard, often near the glove box area. On some trucks like the Silverado/Sierra, it’s on the driver’s side (LH dash). Always verify the location for your specific model.
- ✔ Remove Trim Panels: Carefully remove any plastic trim or panels necessary to access the module. Keep track of all screws and clips.
- ✔ Disconnect and Remove: Unplug the electrical connectors from the old BCM. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the old module from its mounting bracket.
- ✔ Install the New BCM: Mount your new, pre-programmed BCM in the same location and reconnect all electrical harnesses. Ensure they click securely into place.
- ✔ Reconnect and Test: Reconnect the negative battery terminal. Turn the key to the ‘On’ position and test all body functions—windows, locks, lights, and radio—to confirm proper operation before reassembling the dash panels.
Important Post-Installation Information
While this 1998-2000 Blazer S10 BCM is designed for a simple installation, some vehicles may require additional steps. If your airbag light illuminates after installation, a professional scan tool is needed to perform the “Setup SDM Primary Key in BCM” procedure. Additionally, some models may require a Brake Pedal Position Relearn to ensure correct brake light and traction control operation. Always consult a factory service manual for vehicle-specific details.
Verified Vehicle Compatibility

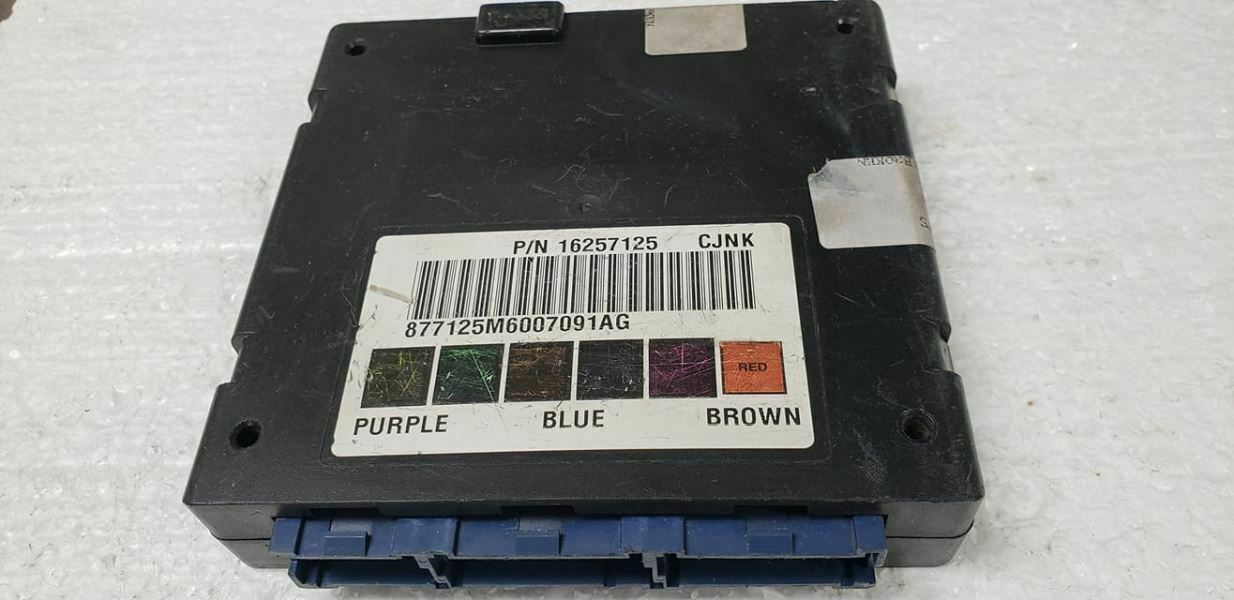

This module is a direct-fit replacement for units with part numbers 09366801, 19153625, 16257125, 8191536250 and more. It is guaranteed to fit the following vehicles:
- 1998-2000 BLAZER S10/JIMMY S15 (Body Control, center dash, ID 16257125)
- 1998-2000 S10/S15/SONOMA (Body Control, center dash, ID 16257125)
- 1999-2000 SILVERADO & SIERRA 1500/2500 (Body Control, LH dash)
- 2000 ASTRO / SAFARI (GMC) (Body Control, LH dash)
- 1999-2000 ISUZU HOMBRE (Body Control, LH dash)
- 1998 BRAVADA (Body Control, center dash, w/ extended build date opt ZN4)
Frequently Asked Questions
Do I need to send you my old BCM?
No. There is no core charge for this part. You can keep your original module.
How do I provide my VIN for programming?
After completing your purchase, you will receive instructions on how to send us your vehicle’s 17-digit VIN. We cannot ship the module until we receive this information to program it correctly.
Is this part difficult to install for a DIYer?
The physical replacement is straightforward for someone with basic mechanical skills. Accessing the module behind the dash is typically the most time-consuming part. Because it comes pre-programmed, you avoid the need for expensive dealer-only tools.
What happens if my airbag light comes on after installation?
This can happen occasionally. It means the new BCM needs to be electronically synced with the airbag system’s SDM. This requires a professional scan tool to perform the ‘Setup SDM Primary Key in BCM’ procedure, which a local repair shop can typically handle.
Will this fix my truck’s no-start problem?
If your no-start issue is caused by the factory anti-theft system (Passlock) being controlled by a faulty BCM, then yes, this part is designed to resolve that. It’s one of the most common reasons for replacing the BCM.
