If you’re dealing with baffling electrical issues in your 1998-2000 GM truck or SUV, you’ve come to the right place. As a technician with over two decades of experience, I’ve seen firsthand how a failing Body Control Module (BCM) can turn a reliable vehicle into a source of constant frustration. This isn’t just a replacement part; it’s a complete, reliable solution. We program this BCM with the latest GM software updates specifically to your vehicle’s VIN before it ships. This means you can bypass the expensive and time-consuming trip to the dealership for programming.
Is Your Truck Showing These Symptoms?
A faulty BCM is the central nervous system for your vehicle’s body electronics. When it fails, it can cause a wide range of strange, seemingly unrelated problems. Here are the most common signs I’ve diagnosed in my shop:
- ✔ Erratic or non-functional power windows, door locks, and interior lights.
- ✔ The security or anti-theft light stays on, preventing the engine from starting (a common Passlock issue).
- ✔ Gauges on the instrument cluster behaving erratically or not working at all.
- ✔ The radio or climate controls function intermittently.
- ✔ A persistent battery drain that leaves you with a dead battery overnight.
- ✔ Diagnostic Trouble Codes (DTCs) related to communication loss, such as U-series codes, stored in the system.
Case Study: A Tricky Diagnosis
I remember a 1999 GMC Jimmy that came into the bay with a classic ‘gremlin’. The owner complained that sometimes the dome light wouldn’t turn off, the power locks would cycle randomly while driving, and occasionally, it wouldn’t start. He had already replaced the battery and checked the fuses. After connecting my scanner, I found no communication with the BCM. These modules are often located under the dash, and on this particular Jimmy, a leaky windshield cowl seal had allowed water to drip directly onto the BCM’s casing over the years. The corrosion on the main connector was the culprit. Replacing the BCM with a pre-programmed unit like this one and fixing the leak had the truck’s electronics working perfectly in under an hour.
The Dealer-Free Solution: Programmed and Ready
The biggest headache with replacing a BCM has always been the mandatory post-installation programming. Our service eliminates that step. Simply provide us with your vehicle’s 17-digit VIN during checkout, and our technicians will flash the module for you. It will arrive at your door ready to be installed, communicating seamlessly with your truck’s existing components like the engine computer and instrument cluster. This is the most efficient way to get your 1998-2000 Blazer Jimmy BCM replaced.
A Straightforward Guide to Installation
Replacing the BCM is a manageable job for a DIY enthusiast with basic tools. While the exact location can vary slightly, it’s typically found behind the dashboard, often near the center or on the driver’s side.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before working on any electronic components.
- Locate the BCM: On most S10/Blazer/Jimmy models, it’s located behind the passenger side of the dashboard, accessible by removing the glove box or a lower dash panel.
- Disconnect and Remove: Carefully unplug the electrical connectors. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the old module from its mounting bracket.
- Install the New Module: Mount your new, pre-programmed BCM in place of the old one. Securely plug in all the electrical connectors, ensuring they click into place.
- Reconnect and Test: Reconnect the negative battery terminal. Turn the key to the ‘On’ position and test your power windows, locks, lights, and other functions to confirm the repair.
Important Post-Installation Notes
In some cases, your vehicle may require additional synchronization procedures after the BCM is installed. These are standard GM protocols and may require a high-end diagnostic scan tool.
- Airbag System Sync: If your airbag warning light is on after installation, a procedure called ‘Setup SDM Primary Key in BCM’ is needed. This syncs the new BCM with the airbag module.
- Brake Pedal Position Relearn: Some models may require a brake pedal position sensor recalibration to ensure brake lights and traction control work correctly.
Disclaimer: We are not responsible for any labor costs. Always consult a factory service manual or a qualified professional if you are unsure about any step.
Will This Fit My Truck?

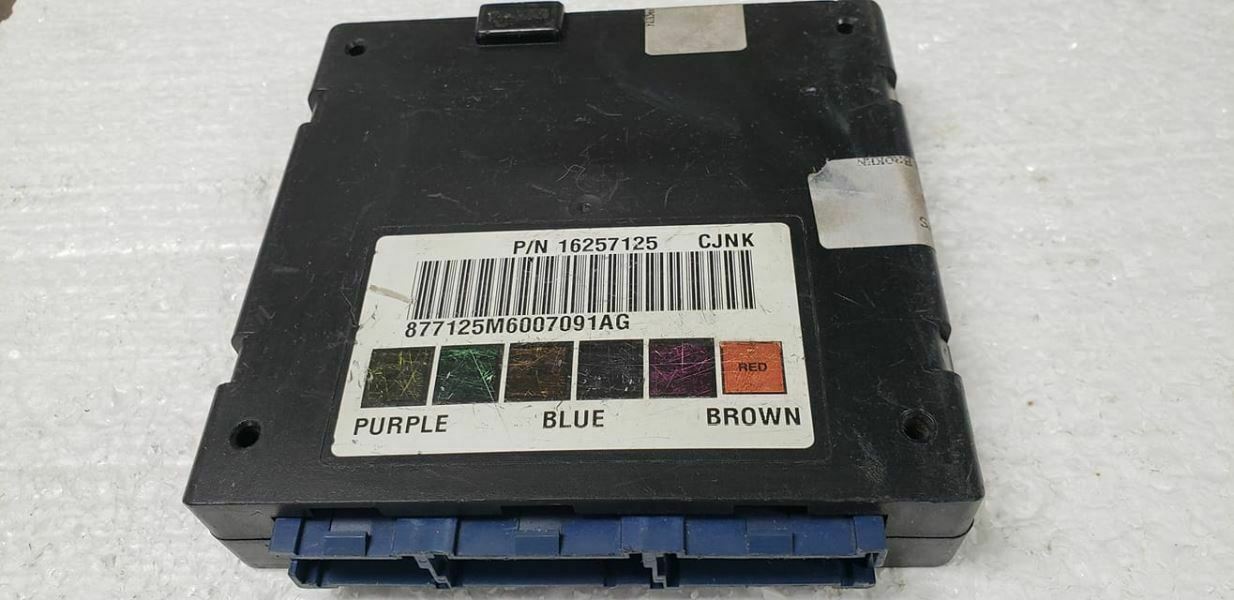

This BCM is a direct-fit replacement for several GM models and part numbers. Please verify that your vehicle and part number are listed below. This module is identified by ID 16257125 on the original unit.
- Part Numbers: 19153625, 8191536250, 16257125, 191583625, 8093668010, 8162571250, 8191536250, 09366801
- Makes/Models:
- 1998-2000 Blazer S10 / Jimmy S15 (center dash)
- 1998-2000 S10 / S15 / Sonoma (center dash)
- 1999-2000 Silverado / Sierra 1500 & 2500 (LH dash)
- 2000 Astro / Safari (LH dash)
- 1999-2000 Isuzu Hombre (LH dash)
- 1998 Oldsmobile Bravada (w/ extended build date opt ZN4)
Frequently Asked Questions
Do I need to send my old BCM back?
No, there is no core charge for this part. You can keep your original module.
What is a BCM and what does it do?
The Body Control Module (BCM) is a computer that manages your vehicle’s non-engine related electronics, such as power windows, locks, interior/exterior lighting, security system, and wipers.
Is this a difficult part to install myself?
For most DIYers with basic tools, this is a straightforward installation. The main challenge is accessing the module, which is typically located behind the dashboard. Our pre-programming saves you the most complex step.
What does ‘VIN Programmed’ mean?
It means we load the correct software and vehicle-specific settings onto the BCM using your Vehicle Identification Number (VIN) before we ship it. This ensures it works correctly with your truck’s options and security system right out of the box.
What if my airbag light comes on after I install it?
This is a normal possibility. It means the new BCM needs to be electronically ‘introduced’ to the airbag module (SDM). A mechanic with a professional scan tool can perform the ‘Setup SDM Primary Key in BCM’ procedure to sync them and turn off the light.
Will this 1998-2000 Blazer Jimmy BCM fix my no-start problem?
If your no-start condition is caused by the factory anti-theft (Passlock) system being triggered by a faulty BCM, then yes, this part is very likely the solution.
