Restore Your Truck’s Electrical System with a Reliable BCM
Are you tired of chasing electrical gremlins in your 1998-2000 GM truck or SUV? Intermittent power windows, flickering dash lights, or a security system that has a mind of its own are classic signs of a failing Body Control Module (BCM). As the central command center for your vehicle’s body electronics, a faulty BCM can cause a cascade of frustrating and unpredictable problems. This isn’t just an inconvenience; it can affect vehicle security and safety. This replacement BCM is the definitive solution, arriving pre-programmed to your vehicle’s specific VIN for a straightforward installation.
Case Study: A Tricky Diagnosis
I remember a 1999 GMC Jimmy S15 that came into my shop with a complaint the owner called “the ghost.” The interior lights would stay on, draining the battery overnight, and the power locks would cycle randomly while driving. The owner had already replaced the battery and checked all the fuses. After connecting my scan tool, I noticed communication errors with several accessory modules. Instead of a complex wiring issue, my experience pointed directly to the BCM. A failing BCM often acts like a bad switchboard operator, sending the wrong signals. After installing a VIN-programmed module like this one, all the phantom issues vanished. It’s a common failure point I’ve seen fix hundreds of these trucks.
Is Your Truck or SUV Showing These Symptoms?
A failing BCM is often the root cause of many electrical headaches. If you’re experiencing any of the following, this module is the likely solution for your 1998-2000 Blazer BCM issues:
- ✔ Erratic or non-functional power windows and door locks.
- ✔ Interior dome lights or dashboard lights flickering, staying on, or not working at all.
- ✔ The security or anti-theft light staying illuminated, preventing the engine from starting.
- ✔ Horn honking unexpectedly or not working with the remote.
- ✔ Inconsistent operation of windshield wipers.
- ✔ Communication-related Diagnostic Trouble Codes (DTCs), such as U-codes, stored in the system.
- ✔ Remote Keyless Entry (RKE) failing to respond.
The Power of VIN Programming
The biggest hurdle in replacing a BCM has always been the expensive and time-consuming programming required at a dealership. We eliminate that step entirely. When you purchase this module, you simply provide us with your vehicle’s 17-digit VIN. Our technicians will then flash the BCM with the latest GM software updates specific to your truck’s configuration. This ensures that all the factory-installed options and security protocols work correctly right out of the box, saving you hundreds of dollars and a trip to the dealer.
A Straightforward Guide to Installation
For the confident DIYer or professional mechanic, installing this 1998-2000 Blazer BCM is a manageable job. The module is typically located behind the dash for easy access.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before beginning any electrical work.
- Locate the BCM: On most Blazer, Jimmy, and S10 models, the BCM is found in the center dash area, often near the radio or glove box. On some trucks like the Silverado/Sierra, it may be on the driver’s side (LH dash).
- Disconnect and Remove: Carefully unplug the electrical connectors from the old BCM. They have locking tabs that must be depressed. Once disconnected, unbolt or unclip the old module and remove it.
- Install the New Module: Seat the new, pre-programmed BCM in the same location and securely plug in all the electrical connectors. Ensure they click into place.
- Reconnect Power: Re-attach the negative battery terminal. Turn the key to the ‘ON’ position and test all functions like lights, locks, and windows.
Important Post-Installation Notes
While this module is programmed for your VIN, some vehicle systems may require a ‘handshake’ procedure after installation. This is normal. Specifically:
- Airbag System Sync: If the airbag warning light is on after installation, a professional scan tool is needed to perform the ‘Setup SDM Primary Key in BCM’ procedure. This syncs the new BCM with the airbag module.
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor recalibration might be necessary to ensure correct brake light and traction control operation.
Verified Vehicle Compatibility

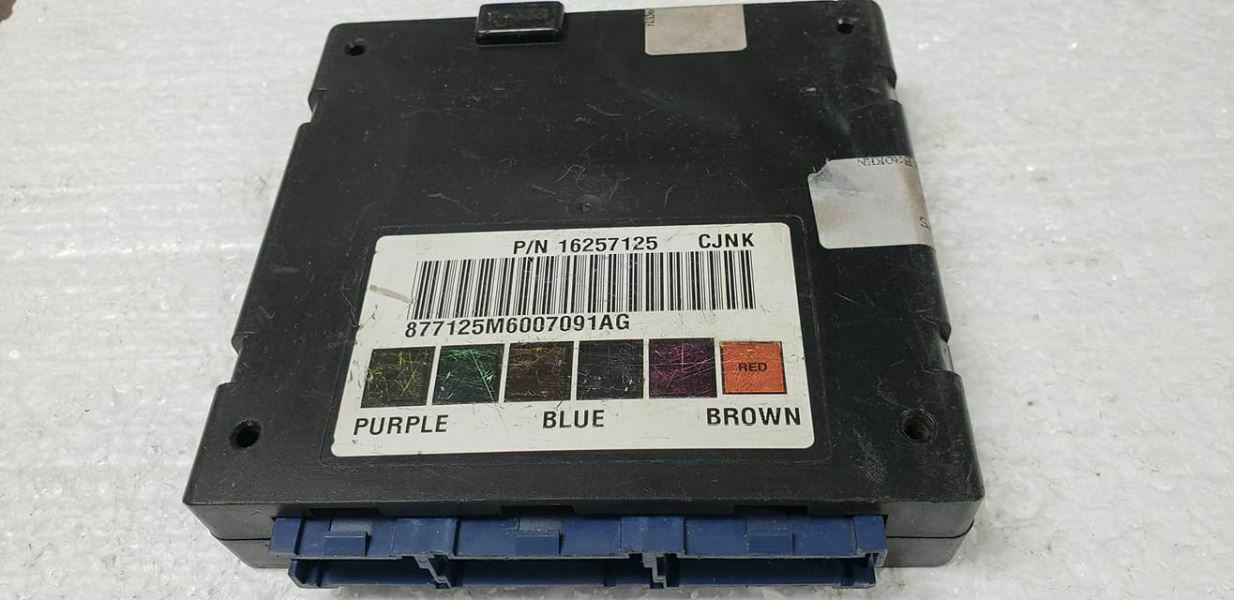

This Body Control Module is a direct replacement for part numbers 16257125, 19153625, 8191536250, 191583625, 8093668010, 8162571250, and 09366801. It is guaranteed to fit the following vehicles:
- 1998-2000 Blazer S10 / Jimmy S15 (center dash)
- 1998-2000 S10 / S15 / Sonoma (center dash)
- 1999-2000 Silverado & Sierra 1500 / 2500 (LH dash, ID 16257125)
- 2000 Astro / Safari (GMC) (LH dash)
- 1999-2000 Isuzu Hombre (LH dash)
- 1998 Oldsmobile Bravada (center dash, w/ opt ZN4)
Frequently Asked Questions
What is a BCM and what does it do?
The Body Control Module (BCM) is a computer that controls many of your vehicle’s non-engine related functions, such as power windows, lights, door locks, the security system, and wipers. It’s the brain for your truck’s body electronics.
Do I need to get this BCM programmed by a dealer?
No. This is the main benefit of our service. We program the BCM to your vehicle’s VIN before we ship it to you. This makes the installation process much simpler and saves you from a costly trip to the dealership.
Where is the BCM located on my 1999 Chevy Blazer?
On the 1998-2000 Blazer, Jimmy, and S10/Sonoma models, the BCM is typically located behind the passenger side of the dashboard, often accessible by removing the glove box or a lower dash panel.
What happens if the airbag light comes on after I install it?
This can happen occasionally. It means the new BCM needs to be electronically synced with the vehicle’s airbag module (SDM). A mechanic with a professional-grade scan tool can perform the ‘Setup SDM Primary Key in BCM’ procedure to resolve this.
Is there a core charge for this part?
No, there is no core charge. You can keep your old, original module without needing to send it back to us, which saves you time and hassle.
Will this fix my truck not starting due to the security light?
Yes, a faulty BCM is a very common cause of an active security light and a no-start condition on these GM vehicles. Because this module is programmed to your VIN, it will restore the proper security handshake and allow your vehicle to start.
