Restore Peak Performance to Your GMT400 Truck
Is your trusty 1998-1999 Chevrolet 2500 Pickup suddenly giving you headaches? Problems like a persistent Check Engine Light, erratic engine behavior, stalling, or harsh shifting can often be traced back to a failing Powertrain Control Module (PCM). As the central computer of your truck, the PCM manages everything from fuel injection and ignition timing to transmission shift points. When it falters, the entire vehicle suffers. This isn’t just an inconvenience; it affects your truck’s reliability, fuel economy, and ability to pass emissions tests.

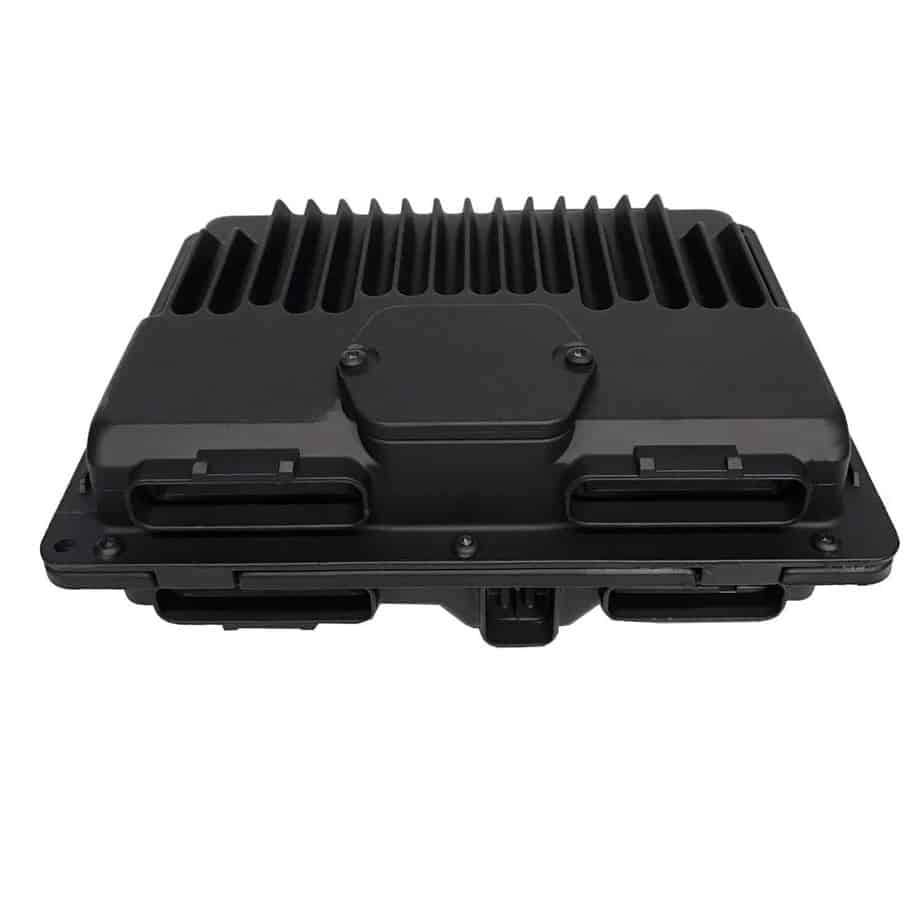

This replacement Powertrain Control Module is the definitive solution to get your workhorse back on the road, running as the factory intended. We take the guesswork and hassle out of the process. Before we ship your part, our technicians will program it with the latest official GM software updates, specifically matched to your truck’s Vehicle Identification Number (VIN). This ensures seamless communication with your vehicle’s other systems and optimal performance right out of the box, eliminating the need for an expensive trip to the dealership for programming.
A Technician’s Notebook
I remember a ’99 Silverado 2500 that came into the bay with a complaint of intermittent stalling, but only after it had been running for 30+ minutes. The owner had already replaced the fuel filter and was convinced it was the fuel pump. We hooked up the scanner and saw no fuel pressure drop, but we did notice the PCM would stop communicating right before the stall. On these GMT400 trucks, the PCM is mounted in the engine bay where it’s exposed to intense heat cycles. Over 20+ years, this can cause internal solder joints to crack, leading to heat-related failures. We swapped in a correctly programmed PCM, and the truck ran perfectly for hours. It’s a classic failure mode I’ve seen dozens of times.
Common Signs of a Failing PCM
- ✔ Check Engine Light is on with PCM-specific codes like P0601, P0605, or U-series communication codes.
- ✔ The engine cranks but refuses to start (no-start condition).
- ✔ Noticeable decrease in fuel economy.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Engine misfires, stumbles, or stalls unexpectedly.
- ✔ Failure to pass state emissions testing.
- ✔ Your diagnostic scan tool cannot communicate with the PCM.
A Straightforward Guide to Installation
Replacing the PCM on these trucks is a job most DIYers can handle in under an hour with basic hand tools. This 1998-1999 Chevrolet 2500 PCM is designed for a direct fit.
- Safety First: Always disconnect the negative terminal from your truck’s battery to prevent any electrical shorts.
- Locate the Module: On most of these trucks and SUVs, the PCM is located in the engine compartment on the driver’s side (LH side), near the fender or firewall, housed in a black plastic bracket.
- Disconnect the Connectors: Carefully unclip and remove the large electrical harness connectors from the old PCM. These connectors have locking tabs that need to be released. Avoid forcing them.
- Remove the Old PCM: Unbolt the PCM and its bracket from the vehicle body. Slide the old module out of the bracket.
- Install the New PCM: Slide your new, pre-programmed PCM into the bracket and secure it back in its original location.
- Reconnect Everything: Firmly plug the electrical connectors into the new PCM until they click into place. Reconnect the negative battery terminal.
- Perform Security Relearn (If Necessary): In some cases, you may need to perform a simple security relearn procedure. This typically involves turning the key to the ‘ON’ position for 10-15 minutes, then off, and repeating two more times before starting the engine. Your vehicle’s service manual will have the exact steps.
Will This Fit My GM Truck or SUV?
This module is a direct replacement for part numbers 16250279, 09366810, and 09355699. It is guaranteed to fit the following vehicles with the specified options:
GMC 1500/2500/3500 PICKUP (98-99), YUKON (98-99), SAFARI (98-99), JIMMY S15 (98), SAVANA 1500/2500/3500 VAN (98), SONOMA (98), ENVOY (98)
CADILLAC ESCALADE (99)
OLDSMOBILE BRAVADA (98)
ISUZU HOMBRE (98)
Note: Please match your original part number or consult the detailed fitment list provided in the product images to ensure compatibility.
Frequently Asked Questions
Why do you need my VIN?
Your Vehicle Identification Number (VIN) allows us to program the module with the exact software calibration your vehicle requires. This includes specifications for the engine, transmission, emissions equipment, and other options, ensuring a perfect match and plug-and-play installation.
Is any additional programming required after installation?
No. This module arrives pre-programmed and ready for installation. In some cases, a simple security or CASE (Crankshaft Angle Sensor Error) relearn procedure may be needed, which can be done without special tools. Instructions are widely available online or in service manuals.
Is this a new or a used part?
This is a high-quality, tested, and verified replacement part that meets or exceeds original equipment specifications. It is programmed with fresh, updated software for reliable, long-term performance.
Will this fix my transmission shifting problems?
If the hard or erratic shifting is caused by faulty signals from the PCM, then yes, this part is very likely to solve the issue. The PCM directly controls transmission line pressure and shift solenoids based on data from various sensors.
How can I be sure my old PCM is the problem?
Confirming a bad PCM involves ruling out other potential causes first (sensors, wiring, fuel delivery). Key indicators of a bad PCM include specific diagnostic trouble codes (like P0601), a no-start condition with spark and fuel present, or a complete loss of communication with a scan tool.
