Restore Peak Performance to Your 1997 GM Truck or Van

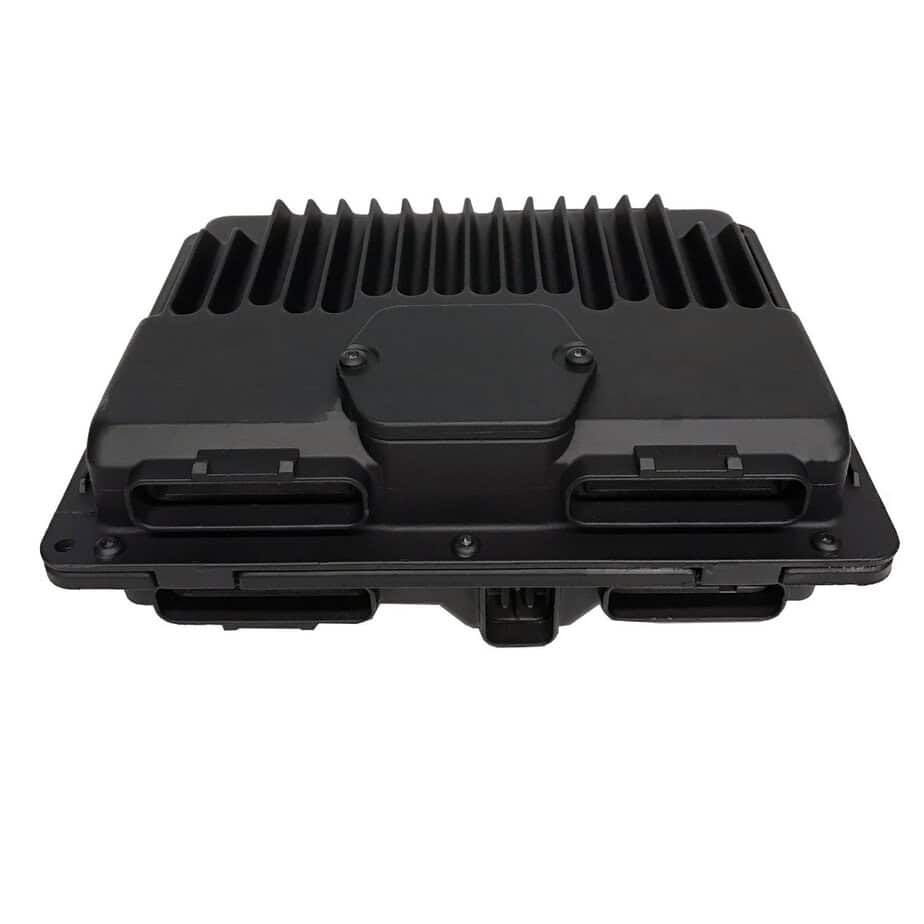

Is your trusty 1997 GM vehicle suddenly unreliable? If you’re dealing with frustrating issues like a persistent check engine light, rough idling, stalling, or a complete no-start condition, the problem often points directly to a failing Powertrain Control Module (PCM). As the electronic brain of your vehicle, the PCM governs everything from fuel mixture and ignition timing to transmission shifting. When it fails, the symptoms can be widespread and confusing. This replacement PCM, part number 16229684, is the definitive solution to get your truck or van running smoothly again.
We take the guesswork and hassle out of the repair. Unlike a generic module from a parts store, each unit we ship is professionally programmed with the latest official GM software updates. We use your vehicle’s unique VIN to ensure the programming is a perfect match for its specific options and calibration requirements. This means no expensive trips to the dealership for programming—it arrives at your door ready for a straightforward installation.
Case Study: The Ghost in the Machine
I remember a 1997 Chevy K1500 that came into my bay a few years back. The owner had spent a small fortune replacing the fuel pump, ignition coil, and even the distributor, chasing an intermittent stalling problem that left him stranded twice. His scanner showed no consistent codes, just a random misfire now and then. After confirming fuel pressure and spark were good during my own tests, I hooked up a lab scope to the PCM’s main connectors. I noticed a slight voltage drop on a key sensor circuit whenever the engine warmed up. It wasn’t enough to trip a hard code, but it was enough to confuse the processor. We installed a VIN-programmed PCM, and the truck ran perfectly. It’s a classic example of how a failing 1997 GMC 1500 PCM can mimic other component failures, making a direct-fit, correctly programmed module the most efficient repair.
Is Your Truck or Van Showing These Signs?
A failing PCM can cause a variety of symptoms. If you’re experiencing any of the following, this module is likely the solution you need:
- ✔ Persistent Check Engine Light (CEL)
- ✔ Engine cranks but will not start
- ✔ Random stalling or hesitation while driving
- ✔ Poor fuel economy
- ✔ Harsh or erratic automatic transmission shifting
- ✔ Failed emissions test
- ✔ Diagnostic Trouble Codes (DTCs) stored, especially P0601, P0605, or P0606
DIY-Friendly Installation: A Step-by-Step Guide
Installing your new 1997 GMC 1500 PCM is a job most DIYers can handle in under an hour with basic hand tools. Because it comes pre-programmed, you skip the most complicated step.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the PCM: On most of these 1997 GM trucks and vans, the PCM is located in the engine compartment on the driver’s side (LH), often near the battery or on the inner fender.
- Disconnect the Harnesses: Carefully unclip and remove the electrical wiring harnesses connected to the old module. There are typically multiple color-coded connectors.
- Remove the Old Module: Unbolt the PCM from its mounting bracket and remove it from the vehicle.
- Install the New Module: Mount your new, pre-programmed PCM onto the bracket and securely bolt it in place.
- Reconnect Everything: Plug the wiring harnesses back into the correct ports on the new module. Reconnect the negative battery terminal.
- Final Step: Start the engine. The vehicle may need to run for a few minutes to complete its internal relearn procedures. Your check engine light should be off and the vehicle should run smoothly.
Verified Fitment for Your 1997 GM Vehicle
This module is a direct replacement for part numbers 16229684 and 8162296840. It is guaranteed to fit the following 1997 models:
- ✔ Astro / Safari (GMC)
- ✔ Blazer S10 / Jimmy S15 (4.3L V6)
- ✔ Bravada (4.3L V6)
- ✔ Chevrolet / GMC 1500, 2500, & 3500 Pickups (Gasoline)
- ✔ Express / Savana 1500, 2500, & 3500 Vans (Gasoline)
- ✔ Isuzu Hombre (4.3L V6)
- ✔ S10 / S15 / Sonoma (4.3L V6)
- ✔ Suburban 1500 & 2500 (Gasoline)
- ✔ Tahoe / Yukon (Gasoline)
Frequently Asked Questions
Why do you need my VIN?
Your Vehicle Identification Number (VIN) allows us to program the PCM with the exact software and calibrations your specific vehicle requires. This ensures perfect compatibility with your engine, transmission, and factory options, making the installation plug-and-play.
Is any additional programming needed after I install it?
No. The module arrives fully programmed and ready to install. You will not need to take your vehicle to a dealer or mechanic for further programming.
Will this fix my check engine light?
If the check engine light is on due to an internal failure of the original PCM (like codes P0601 or P0606), then yes, this replacement module will resolve the issue. If the light is on for another reason (e.g., a bad oxygen sensor), that separate issue will still need to be addressed.
How do I know if my PCM is actually the problem?
Common signs include a no-start condition where the engine still cranks, erratic behavior across multiple systems (fuel, spark, transmission), and specific diagnostic codes pointing to an internal module fault. If other potential causes have been ruled out, the PCM is the most likely culprit.
Where is the PCM located on my truck?
For most 1997 GM trucks and full-size vans, the PCM is located in the engine bay on the driver’s side, mounted to the inner fender wall near the battery. On Astro/Safari vans, it’s also on the driver’s side near the battery.
