If you’re dealing with frustrating and unpredictable issues on your 1997 GM truck or van, the Powertrain Control Module (PCM) is often the culprit. As a technician with over two decades of experience under the hood, I’ve seen firsthand how a failing PCM can mimic a dozen other problems, leading to wasted time and money on unnecessary parts. This isn’t just a component; it’s the central computer for your engine and transmission, and when it falters, your vehicle’s performance, reliability, and drivability suffer.

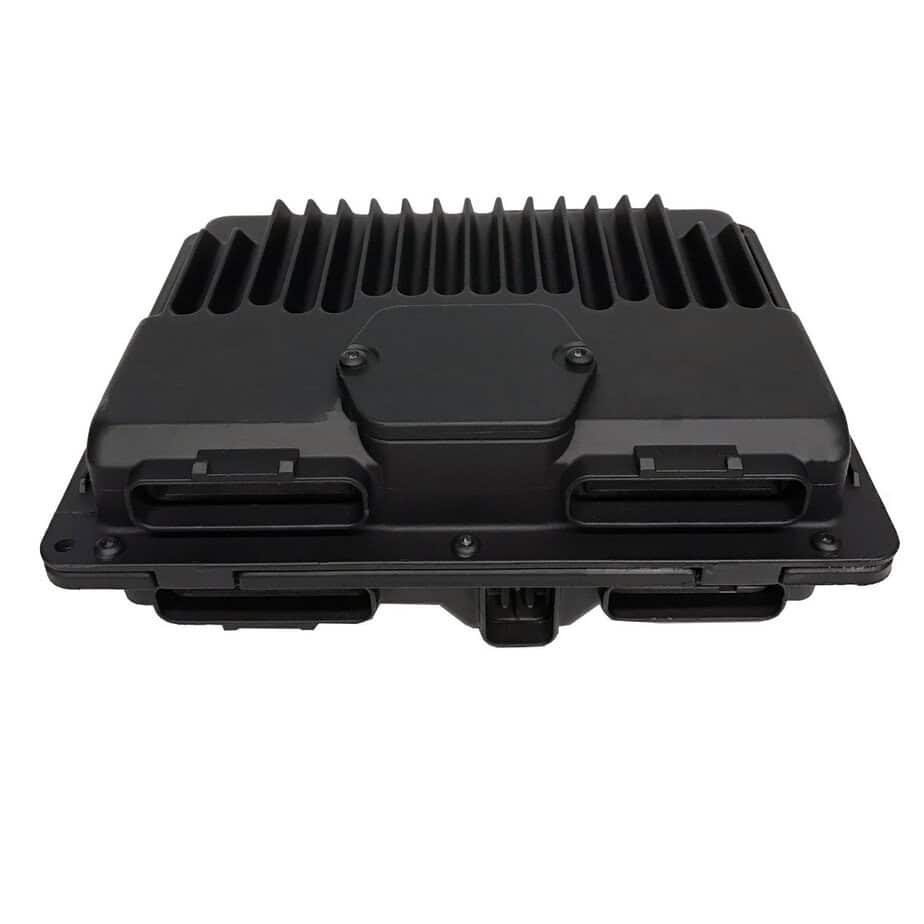

We take the guesswork and hassle out of the repair. This replacement PCM, compatible with part numbers 16229684 and 8162296840, arrives at your door fully programmed to your vehicle’s specific VIN. We load the latest GM software updates, ensuring optimal fuel economy, emissions performance, and transmission shift patterns. This means no expensive trips to the dealership for programming—it’s a true plug-and-play solution designed to get your trusted truck back to work.
Case Study: A Tricky Diagnosis
I remember a 1997 Suburban that came into the shop with a classic heat-soak issue. It would run fine for 20 minutes, then stall at a stoplight and refuse to restart for half an hour. The owner had already replaced the fuel pump and ignition control module. We scanned it and found no hard codes, just a history of random communication errors. On a hunch, we monitored the PCM’s internal temperature data. Sure enough, as the engine bay warmed up, the data stream would go haywire right before it stalled. A failing processor on the circuit board couldn’t handle the heat. We installed a VIN-programmed PCM, and the truck ran perfectly, even after an hour-long test drive. It’s a textbook example of how a faulty 1997 Chevrolet 3500 PCM can create phantom problems.
Is Your Truck Exhibiting These Failure Signs?
A failing PCM can cause a wide range of symptoms. If you’re experiencing any of the following, your engine computer may be at the end of its service life:
- ✔ Check Engine Light is on with codes like P0601 (Internal Memory Error) or P0606 (PCM Processor Fault).
- ✔ The engine cranks but refuses to start.
- ✔ Unexplained stalling, especially after the vehicle has warmed up.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ A noticeable drop in fuel economy.
- ✔ Failure to pass an emissions test.
- ✔ Communication errors with your scan tool.
A Straightforward Guide to Installation
Replacing your PCM is a simple job that most DIYers can handle in their own driveway. Our VIN programming service makes this a direct-swap repair.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the PCM: On most 1997 GM trucks and vans, the PCM is located in the engine compartment on the driver’s side, often near the battery or on the fender well.
- Disconnect the Old Module: Carefully unplug the electrical wiring harnesses. There are typically release tabs you’ll need to press or slide.
- Swap the Modules: Unbolt the old PCM from its bracket and secure the new one in its place.
- Reconnect Everything: Firmly plug the wiring harnesses into your new, pre-programmed PCM. Reconnect the negative battery terminal.
- Final Step: In some cases, a Crankshaft Position System Variation (CASE) relearn procedure may be needed with a capable scan tool to clear a P1336 code. This is a simple procedure for any professional mechanic.
Will This Fit My Vehicle?
This module is a guaranteed fit for the following 1997 gasoline-engine models. We program it specifically for your vehicle’s VIN to ensure perfect compatibility.
1997 GMC Models: 1500/2500/3500 Pickup, Sonoma, Jimmy, Safari, Savana 1500/2500/3500 Van, Suburban 1500/2500, Yukon
1997 Oldsmobile Models: Bravada (4.3L V6)
1997 Isuzu Models: Hombre (4.3L V6)
Frequently Asked Questions
How does the VIN programming work?
After you place your order, you will need to provide us with your vehicle’s 17-digit VIN. Our technicians use this to access the official GM database and flash the module with the exact software and calibrations your vehicle requires.
Is this a plug-and-play part?
Yes, for most vehicles. Because we program it to your VIN, it eliminates the need for dealer programming. You simply install it. Some vehicles may require a CASE relearn procedure to calibrate the crankshaft position sensor, which can be done with a standard bidirectional scan tool.
What is the difference between an ECM and a PCM?
The terms are often used interchangeably. ECM (Engine Control Module) traditionally controlled only the engine. A PCM (Powertrain Control Module) is more integrated and controls both the engine and the transmission functions. This part is a PCM.
Will this fix my vehicle’s specific problem?
This module corrects issues directly caused by a faulty PCM. While it solves many common problems like stalling and no-start conditions, it’s essential to ensure your vehicle has been properly diagnosed. This part will not fix issues caused by bad sensors or wiring.
Where do I find my VIN?
Your 17-digit Vehicle Identification Number (VIN) can be found on your vehicle’s registration, insurance card, or on a metal plate on the driver’s side of the dashboard, visible through the windshield.
