Restore Peak Performance to Your 1996 GM Vehicle
Is your trusty 1996 Buick Century, Chevy Cavalier, or S10 pickup truck suddenly giving you headaches? If you’re dealing with frustrating issues like intermittent stalling, a car that won’t start, a persistent check engine light, or erratic engine behavior, the root cause is often a failing Powertrain Control Module (PCM). As a technician with over two decades of experience, I’ve seen how a faulty PCM can turn a reliable vehicle into a source of constant worry. This isn’t just an inconvenience; it affects your vehicle’s fuel economy, emissions, and overall drivability.

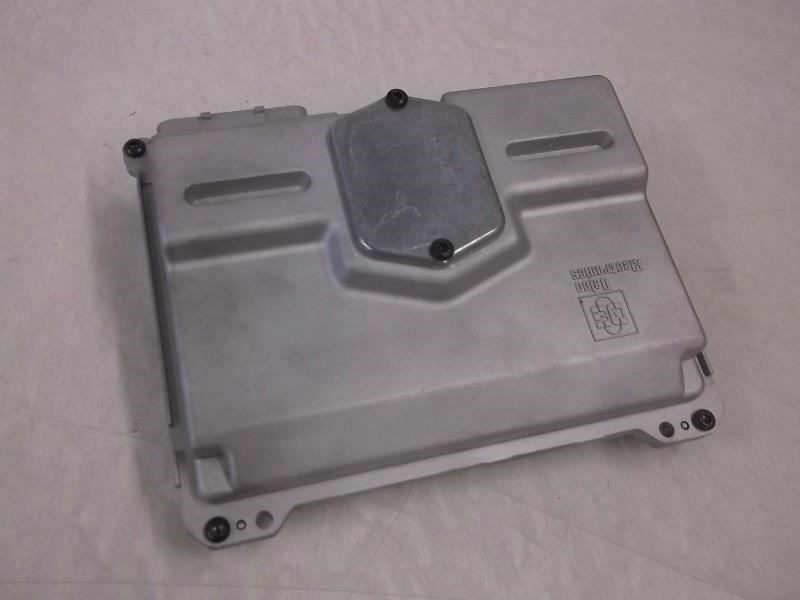

This is the definitive solution. We are offering a professionally prepared 1996 Century PCM, which also serves as the direct replacement for a wide range of GM models from that year. The most critical part of this service is that we flash the module with the latest official GM software updates, precisely programmed to your vehicle’s unique Vehicle Identification Number (VIN). This eliminates the need for expensive dealership programming or specialized scan tools, making it a direct-fit, ready-to-install part right out of the box.
From the Diagnostic Bay: The Case of the Stubborn S10
I remember a 1996 Chevy S10 with the 2.2L engine that came into my shop a few years back. The owner was at his wit’s end. It had an intermittent no-start condition that no one could pin down. It would run fine for days, then refuse to start for no apparent reason. There were no consistent trouble codes, just a general sense of unreliability. After checking the fuel pressure, spark, and wiring, my gut told me to look at the PCM. On these mid-90s GMs, the internal processors can degrade over time, causing these phantom problems. We swapped in a VIN-programmed PCM like this one, and the truck fired up on the first try and never had the issue again. It’s a classic fix that saves hours of diagnostic guesswork.
Is Your Vehicle Showing These Telltale Signs?
A failing PCM can manifest in numerous ways. If you’re experiencing any of the following, this module is the likely solution your vehicle needs. Look out for:
- ✔ Complete no-start or no-spark condition
- ✔ Engine stalls unexpectedly while driving or at idle
- ✔ Noticeable decrease in fuel mileage
- ✔ Harsh or erratic automatic transmission shifting
- ✔ Check Engine Light is on with internal module codes like P0601 (Internal Control Module Memory Check Sum Error) or other communication faults
- ✔ Poor engine performance, hesitation, or misfiring
A Straightforward Guide to Installation
Installing your pre-programmed 1996 Century PCM is a manageable job for a DIY enthusiast. Following these steps will ensure a smooth process. Always consult a vehicle-specific repair manual if you are unsure about any step.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent accidental reconnection.
- Locate the PCM: On most of these GM vehicles, the PCM is located in the engine bay, often near the firewall or inside the air filter housing.
- Disconnect Connectors: Carefully unclip and remove the electrical wiring harnesses connected to the old module. These connectors have locking tabs that must be released before pulling.
- Remove the Old Module: Unbolt the old PCM from its mounting bracket. Keep the hardware as you may need to reuse it.
- Install the New Module: Mount your new, pre-programmed PCM onto the bracket and secure it.
- Reconnect Everything: Firmly plug the wiring harnesses back into the new module until they click into place. Reconnect the negative battery terminal.
- Final Step: In some cases, a security or crank relearn procedure may be required, which can often be done without special tools. Instructions are widely available online for these models. Start the vehicle and check for proper operation.
Verified Vehicle Compatibility
This module is a direct replacement for part numbers 16215830 and 16231851. It is guaranteed to fit the following 1996 models:
- ✔ 1996 Buick Skylark (2.4L Engine)
- ✔ 1996 Pontiac Sunfire
- ✔ 1996 Oldsmobile Achieva (2.4L Engine)
- ✔ 1996 Chevrolet Beretta (2.2L Engine)
- ✔ 1996 Chevrolet Cavalier
- ✔ 1996 Oldsmobile Cutlass Ciera (2.2L Engine)
- ✔ 1996 Pontiac Grand Am (2.4L Engine)
- ✔ 1996 Chevrolet Corsica (2.2L Engine)
- ✔ 1996 Buick Century (2.2L Engine)
- ✔ 1996 Chevrolet S10 / GMC Sonoma (2.2L Engine)
How does the VIN programming work?
How does the VIN programming work?
After you complete your purchase, you will need to provide us with your vehicle’s 17-digit VIN. Our technicians use this number to access the latest GM-certified software for your specific vehicle and flash it directly onto the module before shipping. This ensures it works correctly with your engine, transmission, and options.
Do I need to do anything special after installing this PCM?
While the module is plug-and-play for most functions, some vehicles may require a simple security relearn or crankshaft position sensor variation relearn procedure. These can typically be performed without special tools and instructions are readily available online or in service manuals.
Is this a direct replacement for part number 16231851?
Yes, this module is a fully compatible, direct replacement for original GM part numbers 16215830 and 16231851. It will fit and function exactly as the original part did.
Will this 1996 Century PCM fix my check engine light?
If the check engine light is caused by an internal failure of the original PCM (such as code P0601), then this replacement module will solve the problem. However, if the light is on due to other issues like a faulty sensor or emissions component, those parts will still need to be addressed separately.
