Restore Peak Performance to Your Cadillac XTS

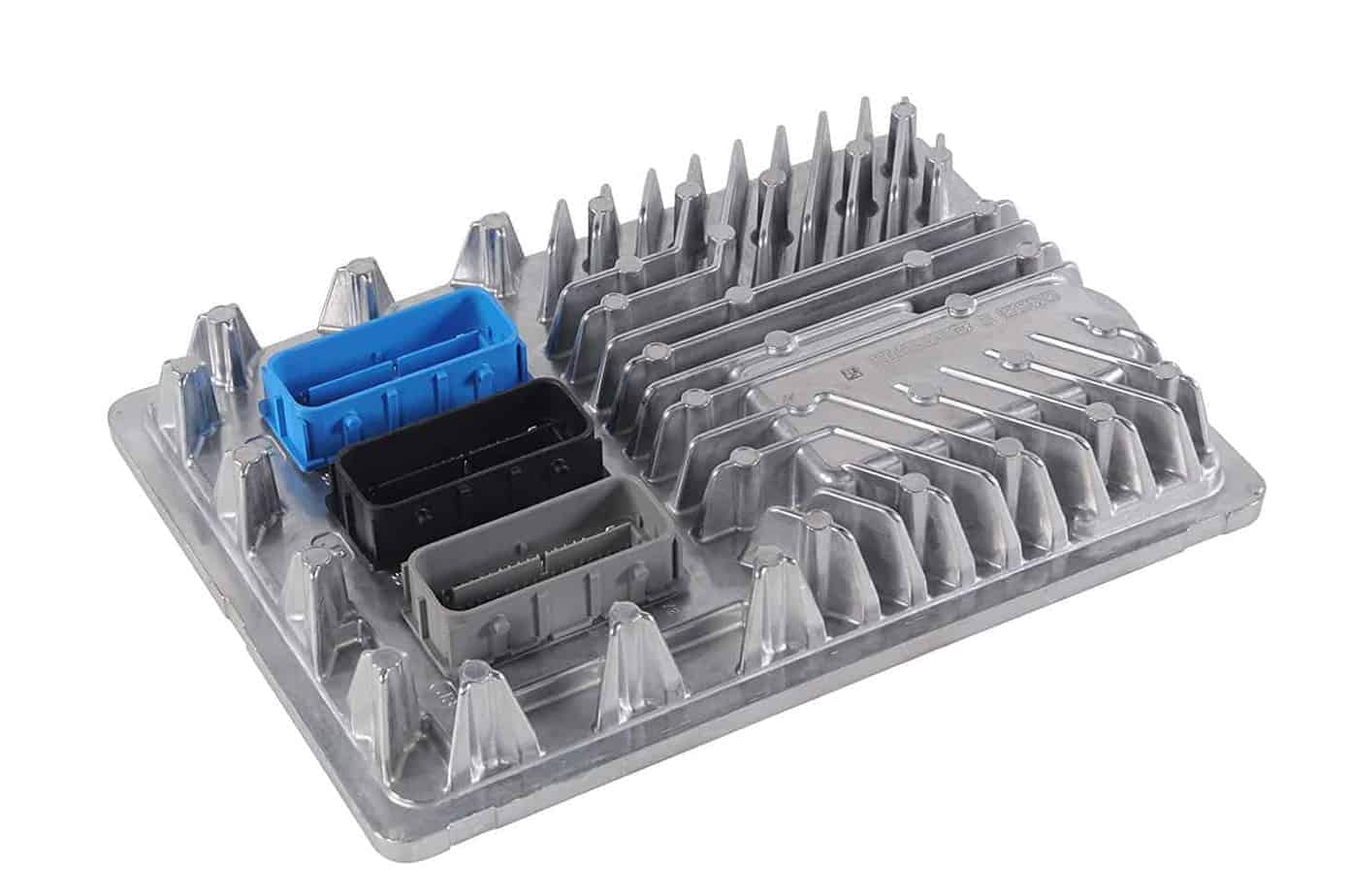

Is your 2017 Cadillac XTS or other GM vehicle suffering from frustrating, hard-to-diagnose problems? A faulty Engine Control Module (ECM) is often the hidden culprit behind issues like random stalling, a persistent Check Engine Light, poor fuel economy, or even a complete no-start condition. As the ‘brain’ of your engine, the ECM governs everything from fuel injection and ignition timing to transmission shifting. When it fails, the entire system suffers. This direct-fit ECM, part number 12686382, is the definitive solution to restore your vehicle’s reliability and performance.
We take the guesswork and hassle out of the replacement process. Unlike buying a blank module that requires expensive dealership tools and programming, this unit arrives at your door pre-programmed with the latest GM software updates, specifically calibrated to your vehicle’s unique Vehicle Identification Number (VIN). This critical step ensures seamless communication with your car’s other modules and guarantees proper engine function right out of the box, saving you hundreds in potential dealership fees.
Case Study: A Tricky Diagnosis
I recently had a 2017 Silverado 1500 in my bay that was a real head-scratcher. The customer complained of intermittent stalling and a flurry of random communication error codes (U-codes) on the scanner, along with a P0606 for internal processor failure. We checked all the wiring harnesses and grounds, which were perfect. After hours of diagnostics, we traced the fault to the ECM itself. The internal processor was failing intermittently, corrupting the data on the CAN bus network and causing other modules to report errors. Swapping in a pre-programmed ECM like this one resolved all the codes instantly and the truck ran perfectly. It’s a classic example of how a single failing module can mimic a dozen other problems.
Common Signs of a Failing ECM
- ✔ Check Engine Light is on with codes like P0601, P0602, or P0606.
- ✔ Vehicle will not start or is very difficult to start.
- ✔ Poor engine performance, hesitation, or misfires.
- ✔ Unexplained drop in fuel efficiency.
- ✔ Automatic transmission shifting issues.
- ✔ Loss of communication with the scan tool or other modules.
A Straightforward Guide to Installation
- ✔ Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- ✔ Locate the ECM: On most compatible vehicles like the Tahoe, Sierra, or Silverado, the ECM is found in the engine compartment on the driver’s side. On the XTS, it’s also in the engine bay. Consult a service manual for your specific model if unsure.
- ✔ Disconnect and Remove: Carefully unplug the electrical connectors. They have locking tabs that must be released. Then, unbolt the module from its mounting bracket.
- ✔ Install the New Module: Bolt the new, pre-programmed ECM into place. Securely reconnect the electrical harnesses, ensuring the locking tabs click into place.
- ✔ Reconnect Battery: Re-attach the negative battery terminal.
- ✔ Perform Security Relearn: This is the most critical step. If the vehicle does not start, you or your mechanic MUST perform the Vehicle Theft Deterrent (VTD) relearn procedure using a GM-compatible scan tool with access to Tis2web or Techline Connect.
- ✔ Additional Relearns: Depending on your vehicle, other procedures like a Crankshaft Variation Relearn may be necessary to clear all codes and ensure optimal performance. This is the responsibility of the installer.
Verified Vehicle Compatibility
This module is a direct replacement for part numbers 12692068, 12704476, 12686382, 12674052, 12674472, and 12678815. It fits a wide range of GM vehicles, including but not limited to:
- ✔ 2017 Cadillac XTS (3.6L Twin Turbo, VIN 8, opt LF3)
- ✔ 2017 Cadillac CTS (6.2L Supercharged & 3.6L Twin Turbo)
- ✔ 2017 Cadillac ATS (3.6L, VIN Y, opt LF4)
- ✔ 2017 Cadillac Escalade / ESV
- ✔ 2017 Chevrolet Corvette
- ✔ 2017 Chevrolet Tahoe / Suburban 1500
- ✔ 2016-2018 Chevrolet Silverado 1500 Pickup (check ID)
- ✔ 2017 GMC Yukon / Yukon XL 1500
- ✔ 2016-2018 GMC Sierra 1500 / Denali 1500 (check ID)
How do I provide my VIN for programming?
After completing your purchase, simply send us a message with your vehicle’s 17-digit VIN. We cannot ship your order until we receive this information, as we program each module specifically for your car or truck.
What is a VTD or ‘theft’ relearn?
The Vehicle Theft Deterrent (VTD) system links your ECM to your keys and ignition. When you install a new ECM, the system sees it as a potential theft and prevents the engine from starting. The relearn procedure uses a professional scan tool to sync the new module with your vehicle, re-authorizing it to start the engine.
Can I do the theft relearn myself?
While some older GM models had a simple key-on/key-off procedure, most 2016+ vehicles require a professional scan tool with a subscription to GM’s Techline Connect (formerly Tis2web). We strongly recommend having a qualified mechanic lined up for this final installation step.
Is this a plug-and-play part?
It is ‘plug-and-program.’ The physical installation is simple, and our VIN programming handles the complex software setup. However, the final security relearn is a mandatory step that must be performed on the vehicle after installation.
Will this fix my specific problem?
This ECM is a guaranteed fix for a faulty module. It’s crucial to ensure your vehicle has been properly diagnosed. If your issue is caused by bad wiring, a faulty sensor, or a mechanical problem, replacing the ECM will not resolve it.
