Is Your GM Vehicle Running Rough? The ECM Might Be the Culprit.
The Engine Control Module (ECM), often called the engine computer, is the central command center for your vehicle’s engine. It meticulously calculates and controls fuel injection, ignition timing, emissions systems, and transmission shift points. When it begins to fail, it can cause a cascade of confusing and frustrating problems, from a simple check engine light to a vehicle that won’t start at all. If you’re experiencing erratic engine behavior in your Silverado, Sierra, Sonic, or other compatible GM model, a faulty ECM is a likely cause.

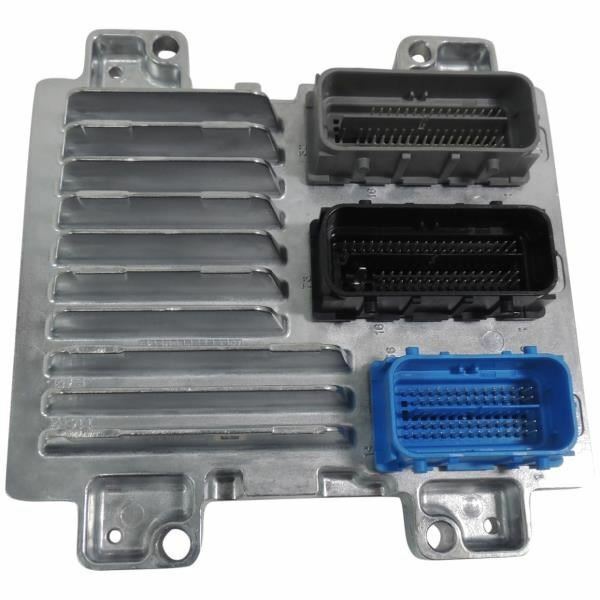

This isn’t just a replacement part; it’s a complete, ready-to-install solution. We take the guesswork and high dealership costs out of the equation. By providing your Vehicle Identification Number (VIN) during checkout, you receive a genuine GM Engine Control Module, part number 12692201, that is professionally programmed with the latest factory software specific to your vehicle. This ensures optimal performance, fuel efficiency, and emissions compliance right out of the box.
From the Diagnostic Bay
We had a 2017 Silverado 2500 with the 6.0L V8 come in on a tow truck. The customer’s complaint was intermittent stalling at stoplights and a complete no-start that morning. There were no check engine lights or stored trouble codes, which made diagnosis tricky. After checking all the basics—fuel pressure, spark, and battery—we hooked up our advanced scanner to monitor live data. We noticed the 5-volt reference signal, which powers many critical engine sensors, was dropping out intermittently. Tracing the wiring diagram pointed us directly to the ECM as the source of the unstable voltage. Instead of a lengthy and expensive diagnostic and programming session at the dealer, the customer ordered a pre-programmed GM 12692201 Engine Module from us. After a 15-minute physical swap and a simple security relearn procedure, the truck fired right up and ran perfectly, with a stable 5-volt reference across the board. It’s a classic case where the right part, pre-programmed, saved the customer hundreds of dollars and days of downtime.
Symptoms of a Failing GM 12692201 Engine Module
- ✔ Persistent Check Engine Light (CEL) that won’t clear.
- ✔ Engine stalling, stumbling, or misfiring for no apparent reason.
- ✔ A complete no-start condition where the engine cranks but won’t turn over.
- ✔ Noticeable decrease in fuel economy.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Communication errors with diagnostic scan tools (U-codes).
- ✔ Trouble codes related to module performance, such as P0601, P0606, or other P06xx codes.
The Plug-and-Play Advantage
Replacing an ECM traditionally requires a trip to a dealership or a specialized shop with expensive programming equipment. They charge for the module, the labor to install it, and a separate, often costly, fee for programming. Our solution streamlines this entire process. We handle the critical programming step before the part ever leaves our facility. This means the GM 12692201 Engine Module arrives at your door ready for physical installation. In most cases, the only additional step is a simple, tool-free security relearn procedure that you can perform yourself in your driveway.
Installation and Security Relearn
Physically swapping the ECM is straightforward. It’s typically located in the engine bay (on the LH front side for the trucks listed) and is held in place by a few bolts with electrical connectors. After installing the new module and reconnecting the battery, you will likely need to perform a security relearn to sync the new ECM with your vehicle’s anti-theft system. A common procedure for these GM vehicles is as follows:
- Turn the key to the “ON” position (without starting the engine).
- Attempt to start the engine. It will likely crank and then stall. The security light may be flashing.
- Leave the key in the “ON” position for 10-12 minutes, until the security light stops flashing or turns off.
- Turn the key to the “OFF” position for 10 seconds.
- Repeat steps 1-4 two more times for a total of three 10-minute cycles.
- After the third cycle, the vehicle should start and run normally.
Note: This procedure can vary slightly by model. Always consult a service manual for your specific vehicle if you are unsure.
Frequently Asked Questions
Do I need to have this module programmed?
No. This is the primary benefit of our service. We program the module with the latest GM software using the VIN you provide before we ship it. It arrives ready to install.
What is a VIN and why do you need it?
The VIN (Vehicle Identification Number) is a unique 17-digit code for your specific vehicle. It allows us to access the exact factory software, calibration files, and options your vehicle was built with, ensuring a perfect match and proper function.
Is this part difficult to install?
The physical installation is typically simple, requiring only basic hand tools to unbolt the old module and install the new one. The most important step after installation is the security relearn procedure, which does not require special tools.
Will this fix my check engine light?
If the check engine light is caused by a faulty ECM, then yes, this part will resolve the issue. It’s crucial to have your vehicle properly diagnosed to confirm the ECM is the point of failure before ordering.
Is this a new or used part?
This is a high-quality, tested, and verified genuine GM component. Each unit is inspected and programmed to ensure it meets or exceeds original factory performance standards.
What if I have questions after I receive the part?
Our team of automotive experts is here to help. If you have questions about installation or the security relearn process, don’t hesitate to contact our customer support for assistance.
