Restore Full Electrical Function to Your Vehicle
Are you battling frustrating and unpredictable electrical problems in your Buick Verano, Chevy Cruze, or GMC Terrain? Flickering lights, malfunctioning power windows, a dead instrument cluster, or a car that won’t start are all classic signs of a failing Body Control Module (BCM). The BCM is the central nervous system for your vehicle’s body electronics, and when it fails, it can cause a cascade of confusing issues. This listing offers a straightforward, reliable solution: a replacement BCM, part number 13589324, that is professionally programmed with the data from your original module, ensuring a seamless, plug-and-play installation.
From the Diagnostic Bay
We had a 2014 Chevy Equinox come into the shop with a laundry list of bizarre symptoms. The customer reported that the radio would turn on and off by itself, the turn signals worked intermittently, and sometimes the power door locks wouldn’t respond to the key fob. They had already replaced the battery and checked all the fuses. After connecting our diagnostic scanner, we found multiple communication error codes pointing towards the BCM. Instead of a costly trip to the dealer for a new module and programming, we used our cloning service. By transferring the data from the original, failing BCM to a quality replacement, we had the Equinox back on the road the next day with all electrical systems operating perfectly. It’s a common scenario that highlights how a failing BCM can mimic a dozen other problems.
Common Symptoms of a Failing BCM
- ✔ Intermittent or non-functional power windows, door locks, or mirrors.
- ✔ Headlights, taillights, or interior lights behaving erratically.
- ✔ The security system acting up, preventing the car from starting (anti-theft light on).
- ✔ Instrument cluster gauges dropping to zero or not working at all.
- ✔ Warning lights (like ABS, Airbag, or Check Engine) appearing without a clear cause.
- ✔ Complete loss of communication with the BCM, resulting in a no-start condition.
- ✔ Key fobs no longer working to lock or unlock the doors.
Why Our Cloning Service is Your Best Solution
Modern vehicles like your 2013-2017 Verano have BCMs that are specifically coded to your car’s Vehicle Identification Number (VIN) and its unique set of options. You cannot simply swap a BCM from another vehicle; it will not work and will likely cause even more issues. The dealership solution involves purchasing a brand new module and paying for several hours of labor for installation and programming. Our service bypasses this expensive and time-consuming process. We extract the critical data from your original BCM and flash it directly onto the replacement unit. This makes the new module an exact electronic duplicate of your old one.
The process is simple:
- Place your order for this service.
- We will contact you with clear instructions for shipping your original BCM to our facility.
- Once we receive your module, our technicians will perform the data transfer to the replacement BCM, typically within 1-2 business days.
- We ship your newly programmed BCM back to you, ready for installation.
Installation and Post-Install Procedures for Your 2013-2017 Verano BCM
Once you receive the programmed module, installation is straightforward. Simply disconnect the battery, locate and remove your old BCM, and install the replacement. Because we’ve cloned your data, there is no need for additional programming from a dealer. However, in some cases, minor relearn procedures may be necessary.
- Airbag System Sync: If the airbag warning light is illuminated after installation, it means the new BCM needs to be synchronized with the vehicle’s SDM (Sensing and Diagnostic Module). A professional scan tool is required to perform the ‘Setup SDM Primary Key in BCM’ procedure. This is only necessary if the light is on.
- Brake Pedal Position Relearn: Some models may require a brake pedal position sensor recalibration to ensure the brake lights and traction control systems function correctly. This is a simple procedure that can be done with a capable diagnostic tool.
Please consult a factory service manual or a qualified technician if you are unsure about these procedures.

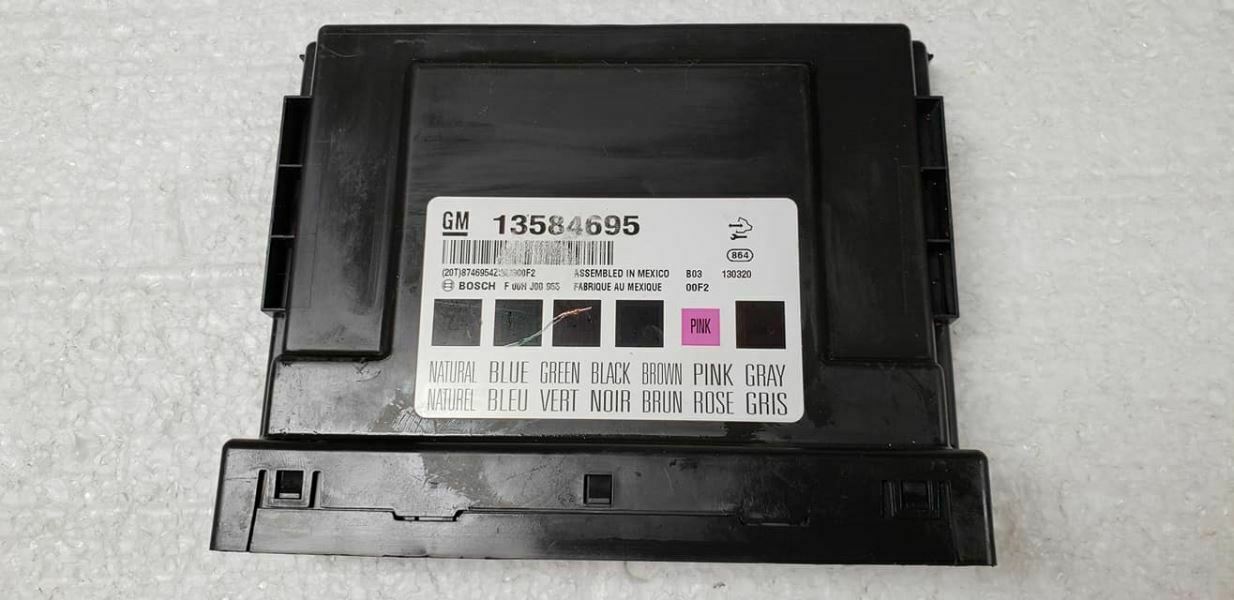

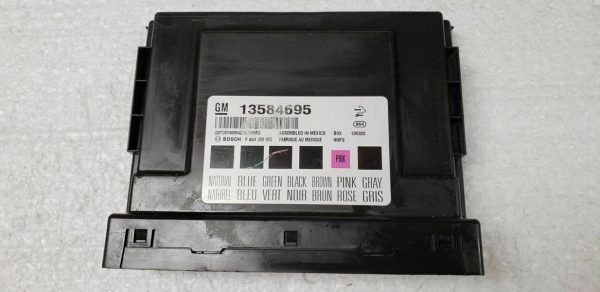

Guaranteed Fitment for Multiple GM Models
This BCM is a direct replacement for part number 13589324 and is also compatible with the following part numbers: 13584695, 13586273, 13580697, 13588447, 13589197, and 13589325. It fits a wide range of vehicles, including:
- Buick Verano: 2013-2017 (below center of dash)
- Buick Encore: 2013-2014 (LH side of dash)
- Buick Regal: 2013 (LH dash)
- Cadillac SRX: 2013 (LH dash)
- Chevrolet Cruze: 2013-2015, 2016 (Limited) (LH kick panel)
- Chevrolet Equinox: 2013-2017 (LH side dash)
- Chevrolet Malibu: 2013 (LH kick panel)
- Chevrolet Orlando: 2013-2014 (below center console)
- Chevrolet Spark: 2014-2015 (gasoline model, left lower a-pillar)
- Chevrolet Trax: 2013-2014 (LH side of dash)
- Chevrolet Volt: 2013 (RH engine compartment)
- GMC Terrain: 2013-2017 (LH side dash)
Frequently Asked Questions
Why do I have to send my original BCM to you?
Your original BCM contains vital data specific to your vehicle, including the VIN, security information, and settings for options like power seats or sunroof. We transfer this data to the replacement module, making it a true plug-and-play part and saving you from a costly trip to the dealership for programming.
Is this BCM ready to install when I get it back?
Yes, 99% of the time. Once we program the replacement BCM with your vehicle’s data, it is ready to be installed without any further programming. In rare cases, a minor relearn procedure for the airbag or brake pedal sensor may be needed, as detailed in the description.
How long does the programming service take?
We typically complete the data transfer and programming within 24-48 hours of receiving your original module. We then ship the programmed replacement BCM back to you promptly.
What happens if my original BCM is completely dead or not communicating?
Even if your BCM is not communicating with the vehicle, we can often still extract the necessary data directly from the board. Please contact us with the specifics of your situation before ordering if you believe your module is completely non-responsive.
Will this fix my car’s no-start problem?
If your no-start issue is caused by the BCM’s failure to recognize your key or by a malfunctioning anti-theft system, then this service is very likely to solve the problem. A faulty BCM is a common cause of security-related starting issues.
Do I need to return my old BCM after I receive the replacement?
No, there is no core charge for this service. You only need to send us your original BCM for the data transfer. You can keep your original module after the service is complete.
