Restore Full Functionality to Your GM Vehicle with a Perfectly Cloned BCM
If you’re dealing with bizarre electrical issues in your 2012-2014 Camaro or another compatible GM vehicle—like power windows with a mind of their own, intermittent starting problems, or dashboard lights flickering randomly—a failing Body Control Module (BCM) is the likely culprit. For years in my shop, I’ve seen customers spend hundreds, even thousands, chasing these electrical ghosts. The BCM is the central nervous system for your car’s comfort and security features, and when it fails, it can be incredibly frustrating. This isn’t just an inconvenience; it can affect security systems, lighting, and more.
We offer a straightforward, reliable solution. This listing is for a replacement BCM that is professionally programmed using the data from your vehicle’s original module. This cloning process is the key to a hassle-free repair. Instead of buying a blank module and paying a dealership for expensive programming, you get a unit that is truly plug-and-play. We transfer your vehicle’s specific VIN, mileage, and option configuration directly to the replacement unit, ensuring all systems communicate perfectly upon installation.
Is Your Camaro Showing These BCM Failure Signs?
A faulty BCM can manifest in numerous ways. If you’re experiencing any of the following, it’s a strong indicator that your module needs attention. Look out for Diagnostic Trouble Codes (DTCs) like U0140, U0155, or B1001.
- ✔ Power windows, door locks, or mirrors operating erratically or not at all.
- ✔ Interior or exterior lights staying on, flickering, or failing to turn on.
- ✔ The security system acting up, causing no-start conditions or false alarms.
- ✔ Horn honking unexpectedly or not working when pressed.
- ✔ Remote keyless entry (RKE) failing to respond.
- ✔ Wipers activating on their own or not working correctly.
- ✔ Communication errors with other modules on the vehicle’s network.
A Technician’s Notebook: The Case of the Confused Camaro
A customer brought in a 2013 Camaro with a classic BCM failure story. The horn would blare randomly, the driver’s side window wouldn’t go down, and the key fob was useless. He had already replaced the battery and checked all the fuses. Another shop quoted him over $1,200 for a new BCM and programming. We had him send us his original module. Within a day of receiving it, we cloned the data to one of our tested replacement units and shipped it back. He installed it himself in under an hour. All the strange electrical problems vanished. This is a perfect example of how our cloning service for the 2012-2014 Camaro BCM saves customers significant time, money, and diagnostic headaches.
Your Straightforward BCM Installation Guide
Our cloning service makes the physical installation simple. Since all the programming is done, you won’t need a high-end scan tool for the initial setup. Just follow these general steps:
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before working on any electronic components.
- Locate the BCM: On the 2012-2014 Camaro, the BCM is typically located behind the right-hand side of the dashboard. For other models, its location varies (see fitment list).
- Remove the Old Module: Carefully unplug the electrical connectors. They have locking tabs that need to be released. Once disconnected, unbolt the module from its mounting bracket.
- Install the New Module: Mount your newly programmed BCM and securely reconnect all electrical connectors. Ensure they click into place.
- Reconnect the Battery: Reattach the negative battery terminal.
- Perform Post-Install Checks: Start the vehicle and test all body functions—windows, locks, lights, wipers, etc. Note that some vehicles may require additional relearn procedures as outlined below.
Important Post-Installation Information
While our goal is a plug-and-play experience, some vehicle systems may require a final handshake with the new BCM. This is normal. Please be aware of the following potential procedures:
- Airbag System Sync: If the airbag warning light is illuminated after installation, a ‘Setup SDM Primary Key in BCM’ procedure is necessary. This requires a professional-grade scan tool to sync the BCM with the airbag system.
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor recalibration may be needed to ensure your brake lights and traction control system function correctly.
Disclaimer: Vehicle systems vary. We always recommend consulting a factory service manual or a certified technician if you are unsure about any step.
Verified Vehicle Compatibility List

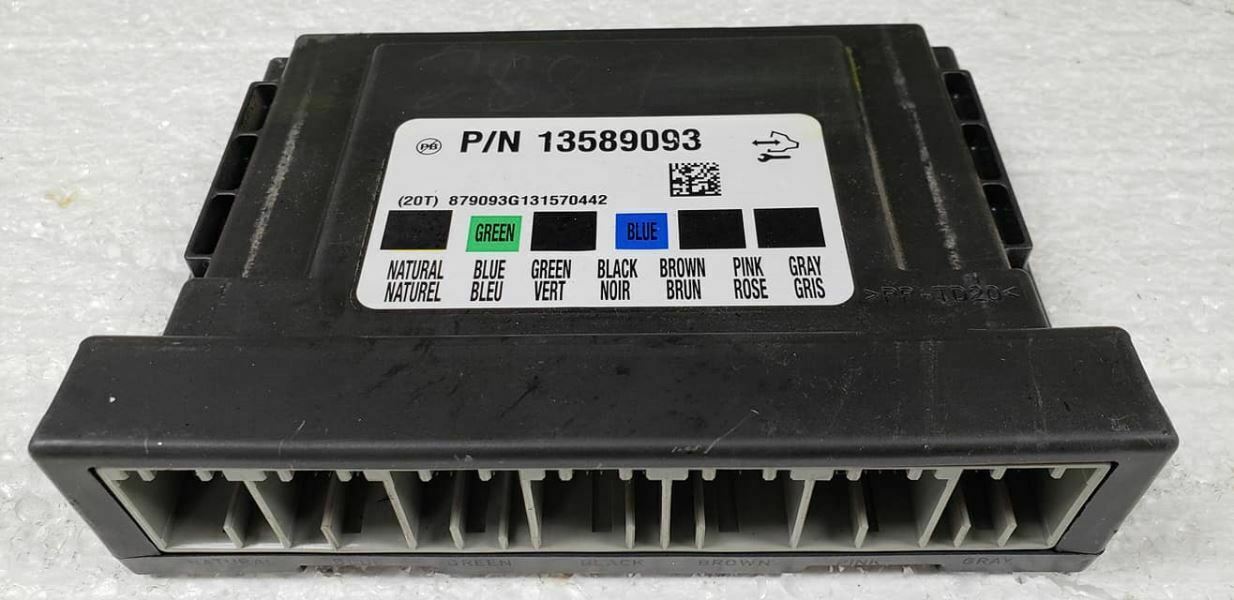

This BCM is a direct fit for multiple GM vehicles and is interchangeable with part numbers 13580696, 123589093, 13588446, 13584692, and 13583542. Please verify your part number and application below:
- Buick LaCrosse: 2012-2013 (LH kick panel)
- Buick Regal: 2012 (LH dash)
- Buick Verano: 2012 (below center of dash)
- Cadillac SRX: 2012 (LH dash, ID 13580696)
- Chevrolet Camaro: 2012-2014 (RH dash)
- Chevrolet Equinox: 2012 (LH side dash)
- Chevrolet Spark: 2013 (left lower a-pillar)
- Chevrolet Volt: 2012 (RH engine compartment)
- GMC Terrain: 2012 (LH side dash)
Frequently Asked Questions
How does the cloning service work?
After you place your order, we will contact you with instructions to ship your original BCM to us. Once we receive it, our technicians will extract the unique vehicle data and program it onto the replacement module. We then ship the ready-to-install BCM back to you.
Will I need to program keys after installation?
No. Because we clone your original data, the replacement BCM will recognize your existing keys. This avoids the need for a complicated and costly key relearn procedure.
Is this a plug-and-play solution?
Yes, in over 95% of cases. The module arrives ready to be installed without any initial programming. However, as noted, some vehicles may require a simple post-install procedure like an airbag sync or brake pedal relearn if specific warning lights appear.
Do I need to send my old BCM back? Is there a core charge?
You must send your original BCM to us for the data cloning service. However, there is no core charge, and we will ship your original module back to you along with the newly programmed one.
What part number should I match?
This module, part number 13584692, is a direct replacement for several part numbers, including 13580696, 123589093, 13588446, and 13583542. As long as your vehicle is on the compatibility list, this service will work for you.
