Restore Full Electrical Function to Your GM Truck or SUV

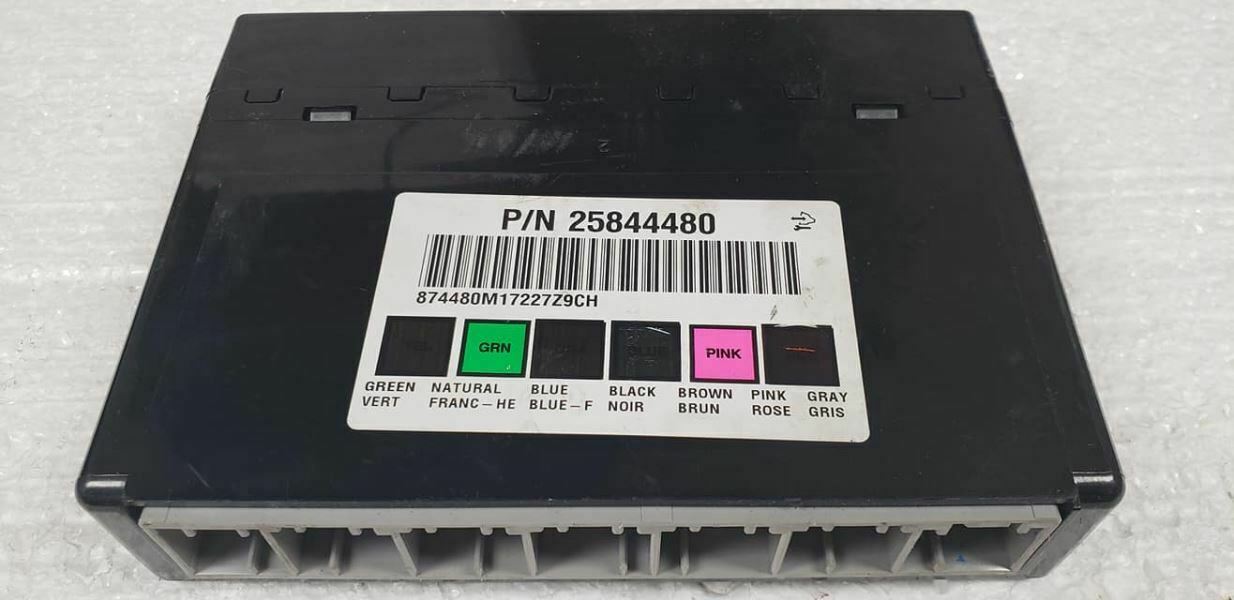

Are you tired of chasing down bizarre electrical gremlins in your truck? One minute the radio works, the next it doesn’t. The power windows have a mind of their own, and a persistent airbag light is staring you down. As a technician with over two decades of experience, I’ve seen these exact issues countless times, and they almost always point to a failing Body Control Module (BCM). This module is the central nervous system for your vehicle’s body electronics. When it fails, it can cause a cascade of frustrating and unpredictable problems. This OEM-quality replacement, part number 20939138 (interchangeable with 25844480), is the definitive solution for your 2011 Sierra Denali BCM and other compatible GM vehicles.
Case Study: The Ghost in the Machine
A 2011 Sierra Denali rolled into my bay with a laundry list of complaints: intermittent HVAC blower, door locks acting up, and a security light that would randomly prevent the truck from starting. The owner had already replaced the battery and checked fuses, but the problems persisted. After hooking up my scanner, I saw a network of communication codes. While the BCM was the prime suspect, experience has taught me to always check the basics first. We inspected the main BCM ground connection under the dash and found it was slightly loose and corroded. After cleaning and tightening it, some issues cleared up, but the HVAC problem and a stubborn BCM internal fault code remained. Installing a pre-programmed BCM like this one was the final step that restored 100% functionality. It’s a powerful reminder: always confirm your grounds during the repair, but know when the module itself is the root cause.
Is Your Truck Showing These Symptoms?
- ✔ The HVAC system is unresponsive, or the blower motor works intermittently.
- ✔ An airbag warning light is illuminated on the dash, often with DTC B1001.
- ✔ Power accessories like windows, door locks, or interior/exterior lights are failing or behaving erratically.
- ✔ The security system is malfunctioning, leading to no-start conditions, stalling, or misfires.
- ✔ Your scanner is pulling multiple communication or body-related Diagnostic Trouble Codes (DTCs).
- ✔ You’re experiencing strange electrical behavior that seems to have no logical cause.
A Straightforward Guide to Installation
Getting your truck back to normal is easier than you think. This module is designed for a direct, plug-and-play replacement. The entire process typically takes less than 15 minutes.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- Locate the BCM: On most compatible models, you’ll find the Body Control Module located under the driver’s side dashboard, near the steering column. It’s a black box with multiple large electrical connectors.
- Remove the Old Module: Carefully unplug all wiring harnesses from the old BCM. They have locking tabs that need to be depressed. Once unplugged, unclip or unbolt the module from its mounting bracket.
- Install the New Module: Seat the new, pre-programmed BCM into the mounting bracket and securely plug in all the wiring harnesses. You’ll hear a click as they lock into place.
- Reconnect and Test: Reconnect the negative battery terminal. Start the vehicle and test all functions: lights, wipers, windows, door locks, and HVAC to confirm the repair.
- Post-Installation Checks: In some cases, an airbag light may persist. This requires a professional scan tool to perform the ‘Setup SDM Primary Key in BCM’ function. Similarly, a ‘Brake Pedal Position Relearn’ may be needed. These are simple procedures for any well-equipped shop or advanced DIYer.
Verified Vehicle Compatibility
This BCM is a direct-fit replacement for a wide range of General Motors trucks and SUVs. It is interchangeable with part numbers 25835966, 15943678, 20939138, and many more. Please verify your vehicle from the list below.
CADILLAC ESCALADE, ESV, EXT 07-11
CHEVROLET SILVERADO 1500/2500/3500 PICKUP 07-13 (07 New Body Style)
CHEVROLET SUBURBAN 1500/2500 07-11
CHEVROLET TAHOE 07-11
GMC SIERRA 1500/2500/3500 PICKUP 07-13 (07 New Body Style)
GMC SIERRA DENALI 1500/2500/3500 07-13 (07 New Body Style)
GMC YUKON & YUKON XL 1500/2500 07-11
Note: For 2010 and 2013 models, please confirm your original part ID is 25835966.
Frequently Asked Questions
Frequently Asked Questions
What does a Body Control Module do on my Sierra?
The BCM acts as the main computer for your truck’s non-engine related electronics. It controls functions like your interior and exterior lights, power windows and locks, security system, wipers, and the climate control system.
Is this module difficult to install myself?
For anyone comfortable with basic hand tools, this is a very straightforward job. It’s located under the dashboard and simply unplugs. Since our module comes pre-programmed to your VIN, no dealership visit is required for programming, saving you time and money.
Why is VIN programming so important?
VIN programming loads your vehicle’s specific software and configurations onto the module before it ships. This ensures all the features your truck came with from the factory work correctly right out of the box. An unprogrammed module from a dealer or junkyard will not work without expensive programming.
What happens if my airbag light is on after installation?
This is a common security handshake procedure. A professional scan tool is needed to perform the ‘Setup SDM Primary Key in BCM’ function. This syncs the new BCM with the airbag system (SDM) and resolves the light. It’s a quick procedure for any qualified technician.
Do I need to send my old BCM back?
No. We do not require you to return your original part. There is no core charge, which simplifies the process for you.
