Restore Safe Towing and Clear That Annoying Dash Light for Good

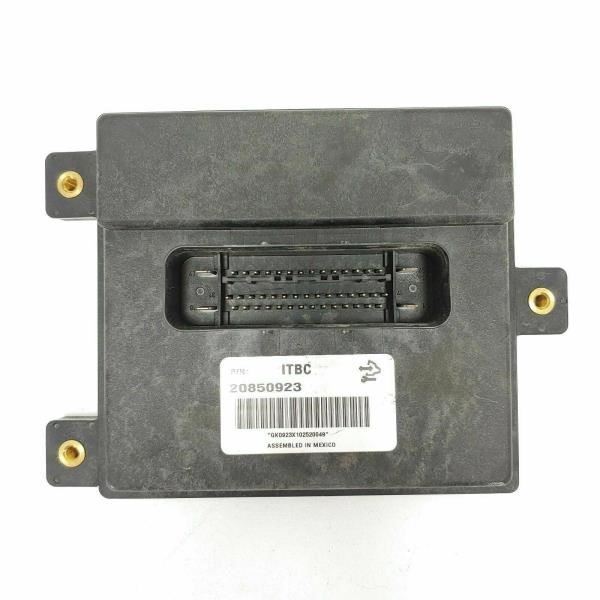

As a technician with over two decades of experience, one of the most common complaints I hear from owners of 2011-2012 GM HD trucks is the dreaded “Service Trailer Brake System” message. It’s more than an annoyance; it’s a critical safety warning. When you’re hauling thousands of pounds, you need absolute confidence that your trailer brakes will respond instantly. This Trailer Brake Control Module (TBCM), part number 20791897, is the definitive solution to restore that confidence and get you back on the road safely.
The original modules on these trucks are notorious for failure. Located on the frame rail, they are constantly exposed to water, salt, and road debris, leading to internal corrosion and communication failures. In my shop, I’ve seen countless cases where a simple diagnostic scan points directly to a faulty TBCM, often with communication loss codes (U-codes). This isn’t a part you can ignore. A malfunctioning TBCM can lead to no trailer brake activation, or worse, erratic braking that can cause a dangerous sway condition.
Case Study: A Tricky Diagnosis
A customer brought in his 2012 Silverado 3500 dually, frustrated because his trailer brakes would work intermittently. He’d already replaced the 7-pin connector and checked all the wiring. The dash message would come and go. When we hooked up the scanner, we found a U0100 (Lost Communication with ECM/PCM) and a C0299 (Brake Booster Performance) that seemed unrelated at first. Experience told me to look at shared data lines. The TBCM on these trucks can short internally and disrupt the entire CAN bus network, causing ghost codes in other modules. We swapped in a known-good TBCM, and all the codes vanished. This pre-programmed module would have saved him hours of diagnostic headaches and provided an immediate, reliable fix.
Is Your Truck Showing These Symptoms?
If you’re experiencing any of the following issues, a failing TBCM is the most likely culprit. Replacing it with our VIN-programmed module is the direct path to a permanent fix.
- ✔ “Service Trailer Brake System” message displayed on the Driver Information Center (DIC).
- ✔ Trailer brakes do not engage when the manual slide or brake pedal is applied.
- ✔ The gain adjustment on your dash has no effect on trailer braking effort.
- ✔ Intermittent or complete loss of connection to your trailer’s electrical system.
- ✔ Diagnostic Trouble Codes (DTCs) such as C1512, C1522, or various U-codes indicating loss of communication with the TBCM.
The Advantage of a VIN-Programmed 2011-2012 Sierra 2500 TBCM
The biggest hurdle in replacing modern vehicle electronics is programming. Typically, you’d have to install the part and then tow your truck to a dealership for an expensive programming session. We eliminate that step entirely. By providing us with your Vehicle Identification Number (VIN) at checkout, we flash the module with the latest, most stable GM-approved software specifically for your truck’s configuration. This ensures it communicates perfectly with your truck’s other computers (like the ECM and BCM) right out of the box. It’s a true plug-and-play solution that saves you time, money, and hassle.
A Straightforward Guide to Installation
This is a job most DIYers with basic tools can handle in under an hour. The module is typically located on the driver’s side frame rail, near the rear axle.
- Safety First: Disconnect the negative terminal from your truck’s battery to prevent any electrical shorts.
- Locate the Module: On pickups, find the TBCM mounted to the inside of the driver-side frame rail, usually ahead of the rear axle. For Suburbans and Yukons, it’s on the driver-side frame rail, closer to the middle of the vehicle.
- Disconnect and Remove: Unplug the electrical connectors. Be gentle with the locking tabs, as they can become brittle. Then, unbolt the module from the frame. These bolts may be rusty, so a little penetrating oil can be a big help.
- Install the New Module: Bolt the new, pre-programmed module into the same location. Ensure it’s secure.
- Reconnect: Plug the electrical connectors firmly into the new TBCM. You should hear a click as they lock into place.
- Final Step: Reconnect the negative battery terminal. Start the truck and verify that the “Service Trailer Brake System” message is gone.
Verified Vehicle Compatibility
This module is a direct-fit, guaranteed replacement for the following vehicles equipped with the factory towing package. Please verify your vehicle is on this list before ordering.
- 2011-2012 Chevrolet Silverado 2500 / 3500 PICKUP (Towing Control; LH rear frame)
- 2011-2012 Chevrolet Suburban 2500 (Towing Control; LH middle of frame)
- 2011-2012 GMC Sierra 2500 / 3500 PICKUP (Towing Control; LH rear frame)
- 2011-2012 GMC Sierra Denali 2500 / 3500 (Towing Control; LH rear frame)
- 2011-2012 GMC Yukon XL 2500 (Towing Control; LH middle of frame)
Frequently Asked Questions
Why do I need to provide my VIN?
Your VIN is essential for us to program the module with the correct GM software for your truck’s specific options and calibration. This ensures seamless plug-and-play installation without needing a trip to the dealer.
Is this part difficult to install myself?
Not at all. For anyone with basic mechanical skills, this is a straightforward replacement. It involves unplugging the old module and bolting the new one in its place. Since we program it beforehand, no special electronic tools are required.
What happens if I don’t replace a faulty TBCM?
Ignoring a faulty TBCM is a significant safety risk. You will have no control over your trailer’s brakes, which can dramatically increase stopping distances and may lead to loss of control, especially when hauling heavy loads or descending grades.
Will this fix the ‘Service Trailer Brake System’ warning?
Yes, in the vast majority of cases, this warning is caused by a failed TBCM. Replacing it with our correctly programmed module is the specific factory-intended repair for this common issue.
Does this part number 20791897 replace any other part numbers?
Yes, part number 20791897 is the most current replacement for several older part numbers. This module contains the latest hardware and software revisions from GM for improved reliability.
