Restore Peak Performance to Your Vehicle with a VIN-Programmed ECM

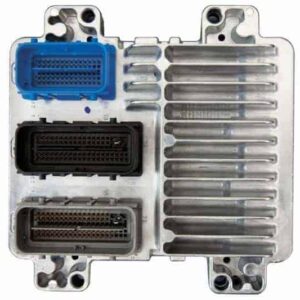

If you’re dealing with frustrating and unpredictable issues like stalling, a persistent check engine light, or a no-start condition in your 2008 Cadillac STS, a failing Engine Control Module (ECM) is a very likely culprit. As the central computer for your vehicle’s engine, its proper function is critical. This isn’t just a replacement part; it’s a comprehensive solution. We provide a high-quality ECM, part number 12603530, that comes professionally flashed with the latest GM factory software, specifically matched to your vehicle using your VIN.
From the Diagnostic Bay: The Intermittent Stall Case
I remember a 2008 Cadillac STS that came into my shop a few months back. The owner was at his wit’s end. The car would run perfectly for days, then suddenly stall at a stoplight and refuse to restart for 10-15 minutes. He’d already replaced the battery and alternator. When I connected my scan tool, I found a stored history code: P0606 – ECM Processor Fault. This code is a direct indictment of the module itself. After confirming solid power and ground connections to the ECM, the diagnosis was clear. An internal processor failure was causing these intermittent shutdowns. Swapping in a VIN-programmed module like this one had the car running reliably that same afternoon, saving the customer a tow to the dealership and hundreds in diagnostic and programming fees.
Is Your Vehicle Showing These ECM Failure Signs?
- ✔ Persistent Check Engine Light with codes like P0601, P0602, P0606, or U0100.
- ✔ Engine stalling or shutting off randomly while driving.
- ✔ Complete no-start condition where the engine cranks but won’t fire up.
- ✔ Noticeable decrease in fuel economy.
- ✔ Poor engine performance, including hesitation or misfires.
- ✔ Communication errors with other vehicle modules.
- ✔ Problems with automatic transmission shifting.
A Straightforward Guide to Installation
Installing your new 2008 STS Engine Control Module is a manageable job for a confident DIYer or any professional technician. Our VIN programming service handles the most complex step, but a simple security relearn is typically required after installation.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- Locate the ECM: On the 2008 Cadillac STS, the Engine Control Module is typically located on the driver’s side frame rail in the engine compartment. Consult a service manual for your specific vehicle if you’re unsure.
- Disconnect and Remove: Carefully unplug the electrical connectors. They have locking tabs that must be released. Then, unbolt the module from its mounting bracket.
- Install the New Module: Bolt the new ECM into place and securely reconnect the electrical harnesses. Ensure they click into place.
- Reconnect Battery: Reattach the negative battery terminal.
- Perform Security Relearn: Most GM vehicles require a security relearn procedure to allow the engine to start. This typically involves turning the key to the ‘ON’ position for 10-15 minutes, then off, and repeating two more times. This allows the new ECM to sync with your vehicle’s anti-theft system.
Verified Vehicle Compatibility
This ECM is a direct replacement for service number 12603530 and is also interchangeable with part numbers 12590032, 12602044, 12605843, 12607096, 12630457, and 19210737. It fits a wide range of GM, Saab, and Isuzu vehicles. Please verify your specific model and engine option below:
Buick: Allure (08-09), LaCrosse (08-09), Lucerne (2006, 2008), Rainier (2007), Enclave (2008)
Chevrolet: Colorado (2008), Monte Carlo (2006), Impala (2006, 08-09), Trailblazer (07-09), HHR (2006), Malibu (06, 08-10), Cobalt (2006), Canyon (2008)
GMC: Envoy (07-09), Acadia (07-08)
Pontiac: G6 (06-09), Grand Prix (2008), Solstice (2006), Pursuit (2006)
Saturn: Aura (08-09), Ion (2006), Vue (08-10), Outlook (2008), Relay (2006)
Hummer: H3 (2008)
Isuzu: Ascender (2008), i-290 (2008), i-370 (2008)
Saab: 9-7x (2007, 2008)
Minivans: Uplander (06, 08-09), Montana (06, 08-09), Terraza (2006)
Note: This is a summary. Always match your part number or consult the full fitment list.
Frequently Asked Questions
Do I need to do anything after I purchase?
Yes. After your purchase, you must send us your vehicle’s 17-digit VIN. We cannot program and ship your module without it. This ensures the ECM has the correct software for your specific vehicle configuration.
Is this part difficult to install?
The physical installation is straightforward, typically involving a few bolts and electrical connectors. The most important post-installation step is the security relearn procedure, which is required for the car to start. We provide general instructions for this process.
Will this fix my check engine light?
If the check engine light is caused by an internal failure of the original ECM (e.g., codes P0601-P0606), then this part is the correct solution. It’s crucial to properly diagnose the issue first, as other faulty sensors or wiring can also trigger a check engine light.
What does ‘VIN Programmed’ mean?
It means we load the module with the specific factory software and calibrations for your exact vehicle using the VIN you provide. This eliminates the need for expensive programming at a dealership and makes the part ready for installation upon arrival.
Is a core return required?
This listing does not require a core return. You can keep your old module, which saves you the time and expense of shipping it back.
