Restore Peak Performance to Your GM Vehicle
Is your 2008 Cadillac Escalade, Sierra, or Tahoe running rough, stalling, or throwing confusing check engine lights? As a technician with over 20 years of experience, I’ve seen firsthand how a failing Engine Control Module (ECM) can be the hidden culprit behind a host of frustrating issues. The ECM is the brain of your engine, managing everything from fuel mixture and ignition timing to transmission shifts. When it starts to fail, the symptoms can be unpredictable and difficult to diagnose. This isn’t just an inconvenience; it affects your vehicle’s reliability, fuel economy, and safety.

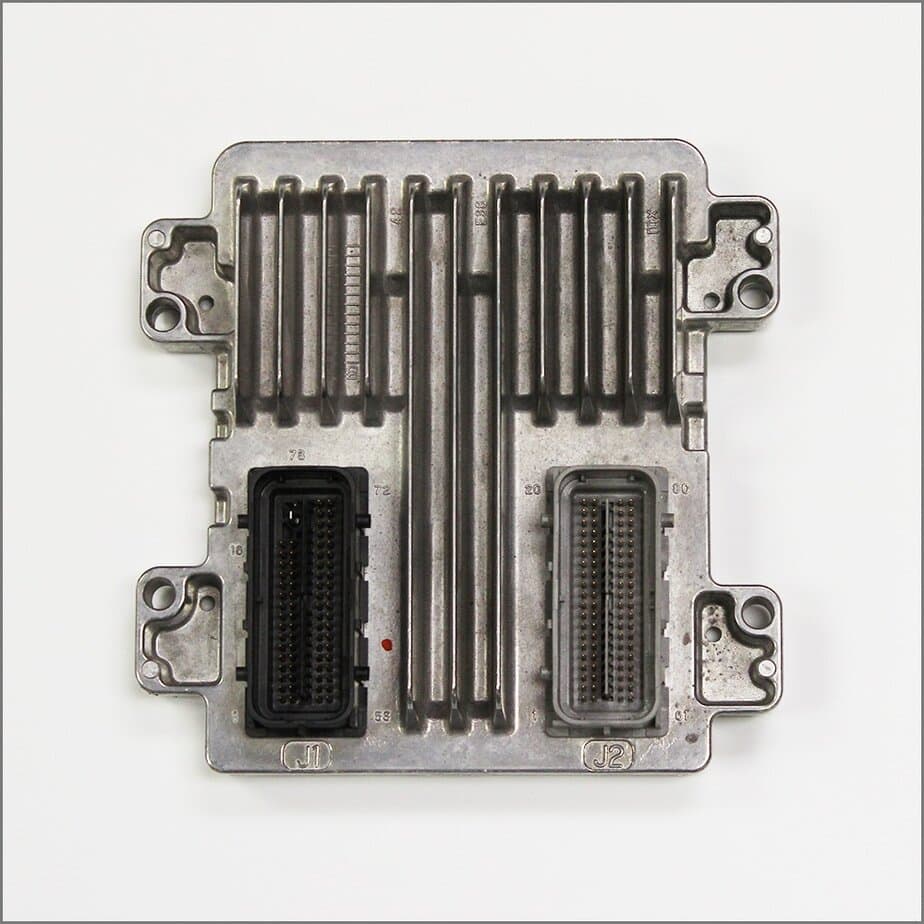

This replacement Engine Control Module, part number 12617568, is the definitive solution. We take the guesswork and hassle out of the repair by programming the module specifically to your vehicle’s VIN before it ships. This means it arrives at your door with the latest GM software updates already installed, ready for a straightforward installation. You get a reliable part that restores factory performance without the need for an expensive trip to the dealership for programming.
From the Diagnostic Bay: The Case of the Ghostly Glitches
I remember a 2008 Sierra 2500 with the 6.0L that came into my shop with a laundry list of complaints. The owner reported random stalling at stoplights, hard shifting, and a flickering check engine light that would come and go. He’d already replaced the throttle body and a couple of sensors with no luck. The scan tool showed a history of communication error codes (U-codes) and a P0601 for internal module failure. These are classic signs of an ECM on its way out. The internal circuits fail from years of heat cycles and vibration, causing these intermittent, ghost-like problems. We installed a VIN-programmed module just like this one, performed the security relearn, and the truck ran like it was new. The owner was thrilled to finally have a reliable truck again. That’s the difference a quality, correctly programmed module makes.
Is Your Vehicle Showing These Telltale Signs?
A failing ECM can manifest in many ways. If you’re experiencing any of the following, it’s a strong indicator that the brain of your engine needs attention. This is especially true if you see diagnostic trouble codes like P0601, P0606, or U0100.
- ✔ Check Engine Light is on or flashes intermittently
- ✔ Engine cranks but refuses to start
- ✔ Unexplained stalling or rough idling
- ✔ Noticeable decrease in fuel efficiency
- ✔ Harsh or erratic automatic transmission shifting
- ✔ Misfires or a general loss of engine power
- ✔ Failure to pass an emissions inspection
Your Guide to a Smooth Installation
Replacing the ECM is a job most DIYers with basic tools can handle. The key is taking your time and following the proper procedure. Our pre-programmed module for your 2008 Escalade Engine Control Module simplifies the process significantly.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 15 minutes to allow capacitors to discharge.
- Locate the ECM: On most GM trucks and SUVs like the Escalade or Silverado, the ECM is located under the hood, on the driver’s side, often near or under the battery tray. On cars like the Impala or G6, it might be in the air cleaner box or on the firewall.
- Disconnect the Connectors: Carefully release the locking tabs on the wiring harness connectors and pull them straight out from the module. Never force them. Inspect the pins for any corrosion or damage.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket. Keep the hardware, as you may need it for the new module.
- Install the New Module: Bolt the new, pre-programmed ECM into place. Reconnect the wiring harnesses, ensuring they click securely into position.
- Reconnect the Battery: Reattach the negative battery terminal.
- Perform Security Relearn: You will need to perform a security relearn procedure (often called a Passlock or anti-theft relearn) so the vehicle recognizes the new ECM. This typically involves turning the key to the ‘ON’ position for 10-15 minutes, then off, and repeating the cycle three times. Specific instructions are readily available online for your model.
Verified Vehicle Compatibility
This module is a direct replacement for part numbers 12612384, 12622141, and 12617568. It is confirmed to fit a wide range of GM vehicles. Please verify your specific model and engine option below.
AURA 08 3.5L (RH firewall)
CAPRICE 11 (ID 12612384)
CORVETTE 08-09 (RH engine compartment)
CTS 08 3.6L, VIN 7 (ID 12612384)
EQUINOX 08-09 3.4L (LH engine compartment)
ESCALADE / ESV / EXT 08 (LH front under battery)
EXPRESS 1500 VAN 08 5.3L (LH rear engine compartment)
EXPRESS 2500/3500 VAN 08 Gasoline (LH rear engine compartment)
G6 08 3.5L or 3.9L (LH front engine compartment)
HUMMER H2 08 (LH front under battery)
IMPALA 08 3.5L or 3.9L (lower part of air cleaner box)
MALIBU 08 Classic & New Style, 3.5L
SAVANA 1500 VAN 08 5.3L (LH rear engine compartment)
SAVANA 2500/3500 VAN 08 Gasoline (LH rear engine compartment)
SIERRA 1500 PICKUP 08 (w/o 4.3L, LH front under battery)
SIERRA 2500/3500 PICKUP 08 6.0L (LH front under battery)
SIERRA DENALI 08 (LH front engine compartment)
SILVERADO 1500 PICKUP 08 (w/o 4.3L, LH front under battery)
SILVERADO 2500/3500 PICKUP 08 6.0L (LH front under battery)
SUBURBAN 1500/2500 08 (LH front under battery)
TAHOE 08 (w/o hybrid, LH front under battery)
TORRENT 08-09 3.4L (LH engine compartment)
VUE 08-09 3.5L
YUKON / YUKON XL 1500/2500 08 (w/o hybrid, LH front under battery)
Frequently Asked Questions
Frequently Asked Questions
Do I need to do anything after installing this ECM?
Yes. While we handle the main programming, you must perform a vehicle security relearn procedure after installation. This syncs the new module to your vehicle’s anti-theft system and is required for the engine to start. You may also need to perform a crankshaft position sensor variation relearn, which can be done with many mid-range scan tools or by a local shop.
How do I provide my VIN number?
After you complete your purchase, simply send us a message with your 17-digit Vehicle Identification Number (VIN). We cannot program and ship your module without it.
Is this a brand new part?
This is a high-quality, tested, and verified replacement part that is guaranteed to perform to OEM standards. We load it with the latest official GM software for your specific vehicle.
Will this fix my transmission shifting problems?
In many cases, yes. The ECM plays a crucial role in controlling transmission shift points and line pressure. If the module is faulty, it can cause erratic shifting, which will be corrected by a properly functioning replacement.
What if my part number is not listed but my vehicle is?
This module replaces part numbers 12612384, 12622141, and 12617568. If your original module has one of these numbers, it is the correct part for your vehicle listed in the compatibility chart. Please double-check your original part before ordering.
How long does the security relearn take?
The standard GM relearn procedure takes about 30-40 minutes. It involves three cycles of turning the ignition on for 10 minutes and then off for a short period.
