Restore Your 4×4 Functionality and Get Rid of That Annoying Light
Is the ‘Service 4WD’ light on your 2008-2014 Chevrolet Tahoe constantly glaring at you? Are you unable to switch between 2WD and 4WD, leaving you unprepared for bad weather or rough terrain? You’re not alone. The Transfer Case Control Module (TCCM) is the electronic brain of your four-wheel-drive system, and it’s a known failure point on these GM trucks and SUVs. When it fails, it can leave your vehicle’s capabilities seriously compromised. This isn’t just an inconvenience; it’s a matter of vehicle readiness and safety.
This replacement TCCM is the definitive, hassle-free solution. We take all the guesswork and extra cost out of the repair. Unlike buying a module from a dealership or parts store, this unit comes fully programmed with the latest GM software specifically for your vehicle. Just provide us with your VIN during checkout, and our technicians will flash the module before it even leaves our facility. It arrives at your door ready for a simple, plug-and-play installation, getting your 2008-2014 Tahoe TCCM back to full operational status without an expensive trip to the dealer.
Case Study: A Tricky Diagnosis
A customer brought in a 2011 Suburban with a classic complaint: the ‘Service 4WD’ light was on, and the selector switch did nothing. They had already replaced the switch itself, with no luck. In my years in the bay, I’ve seen this exact scenario hundreds of times. The first thing I check is for communication with the TCCM. Often, after a battery dies or the vehicle gets a jump-start, a voltage spike can damage the delicate internal circuits of the original module. In this case, my scan tool couldn’t even see the TCCM on the network—a dead giveaway. We installed one of our pre-programmed modules, and in 15 minutes, the 4WD system was fully responsive, and all communication codes were cleared. It’s a common failure that a quality, correctly programmed part solves every time.
Common Signs of a Failing TCCM
- ✔ ‘Service 4WD’ or ‘Service Four Wheel Drive’ message on the instrument cluster.
- ✔ Inability to shift the transfer case into or out of 4-High, 4-Low, or 2WD.
- ✔ The 4WD selector switch lights don’t illuminate or flash without engaging.
- ✔ A grinding or clunking noise when attempting to shift the transfer case.
- ✔ Diagnostic Trouble Codes (DTCs) stored in the system, such as C0327, C0374, or U0102 (Lost Communication with TCCM).
DIY Installation: A Straightforward Guide
Replacing the 2008-2014 Tahoe TCCM is a job most DIYers can handle with basic tools. Since we’ve handled the programming, you just need to swap the part.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the Module: The TCCM is typically located under the driver’s side of the dashboard, to the left of the steering column. You may need to remove a lower dash panel for access.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old module. They have locking tabs that need to be depressed. Then, unbolt the module from its mounting bracket.
- Install the New Module: Bolt the new, pre-programmed TCCM into place and securely reconnect the electrical harnesses. You should hear a ‘click’ as they lock in.
- Final Steps: Reinstall any trim panels you removed and reconnect the negative battery terminal. Start the vehicle and test the 4WD selector switch to confirm full functionality.
Will This Fit My Truck or SUV?

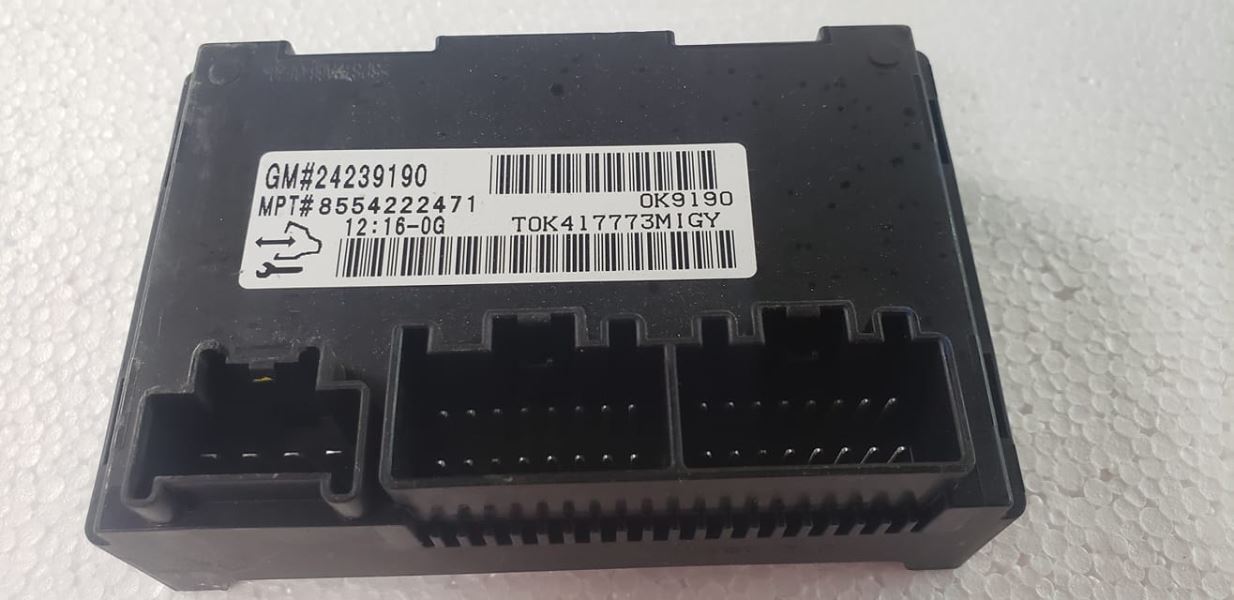

This module is a direct replacement for a wide range of GM vehicles, ensuring proper function and fit. It is compatible with the following part numbers: 24261367, 12588096, 24239190, 24240487, 24241143, 24241970, 24242480, 24243084, 24243085, 24249095, and 24252878. Please verify your vehicle is on the list below.
- Chevrolet Avalanche 1500: 2008-2013
- Chevrolet Silverado 1500/2500/3500: 2007 (New Body Style), 2008-2014
- Chevrolet Suburban 1500/2500: 2008-2014
- Chevrolet Tahoe: 2008-2014
- GMC Sierra 1500/2500/3500 & Denali: 2007 (New Body Style), 2008-2014
- GMC Yukon & Yukon XL 1500/2500: 2007 (Denali), 2008-2014
Don’t let a faulty module sideline your vehicle. This is the most reliable and cost-effective way to restore your four-wheel-drive system. Order your pre-programmed 2008-2014 Tahoe TCCM today!
Frequently Asked Questions
Do I need to take this part to a dealer for programming?
No. This is the biggest benefit of our service. We program the module to your vehicle’s specific VIN before shipping it, so it arrives ready for installation. No extra costs or trips to the dealership are required.
How do I provide my VIN?
Simply enter your 17-digit Vehicle Identification Number (VIN) during the checkout process. We cannot ship the part until we have this information to perform the programming.
Where is the TCCM located on my 2012 Tahoe?
On the 2008-2014 Tahoe and other similar GM platforms, the TCCM is mounted under the dashboard on the driver’s side, usually to the left of the steering column and above the emergency brake pedal.
Is this a new or used part?
This is a high-quality, inspected, and tested recycled OEM part that has been verified for full functionality and programmed with the latest software available from GM.
Will this fix my ‘Service 4WD’ light?
In the vast majority of cases, a faulty TCCM is the root cause of the ‘Service 4WD’ light and non-functional 4×4 system. As long as the transfer case motor and selector switch are in good working order, this module is the correct fix for the problem.
