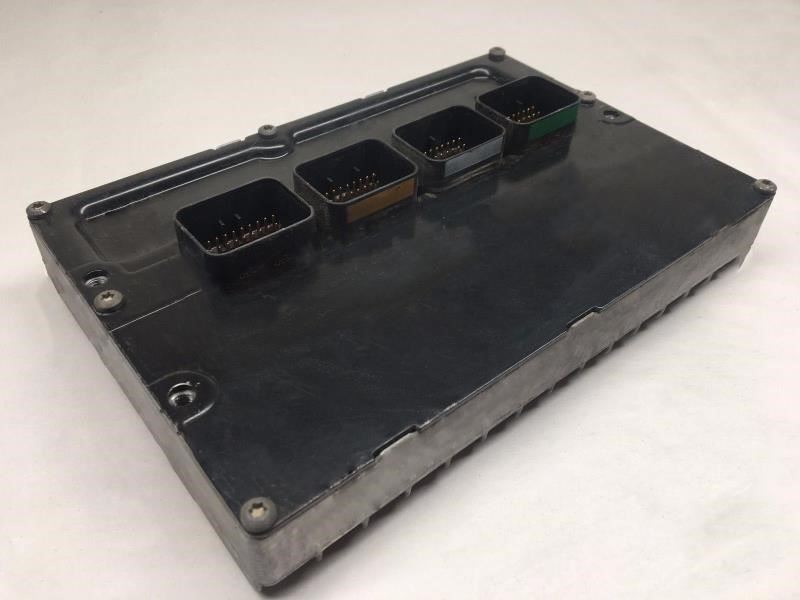

Restore Your Minivan’s Reliability with a Pre-Programmed Engine Computer
As a technician with over two decades of experience, I’ve seen firsthand the frustration a failing Engine Control Module (ECM) can cause. Your 2008-2010 Dodge Caravan or Chrysler Town & Country isn’t just a vehicle; it’s the family hauler, the road trip machine, the daily commuter. When it starts stalling, running rough, or simply refuses to start, your life gets put on hold. This isn’t just an inconvenience—it’s a critical failure of the vehicle’s central computer.
The ECM is the brain of your 4.0L engine, managing everything from fuel injection and ignition timing to transmission shifting and emissions controls. When it fails, you get unpredictable and often dangerous symptoms. This replacement 2008-2010 Caravan Engine Computer is the definitive solution, designed to restore your vehicle’s performance and your peace of mind.
The biggest hurdle in replacing an ECM has always been the expensive and time-consuming programming required at a dealership. We eliminate that completely. We flash this module with your vehicle’s specific VIN and mileage before it ships. When it arrives at your door, it’s a true plug-and-play part. No extra trips, no hidden fees, just a straightforward fix.
From the Diagnostic Bay
I remember a customer with a 2009 Town & Country, the 4.0L model. They were at their wit’s end. The van would stall randomly at red lights, but only when warm. They’d already replaced the throttle body and a few sensors with no luck. After connecting my scan tool, I noticed intermittent communication drops with the PCM—a classic sign of an internal fault. We installed one of our pre-programmed modules, and the problem was solved instantly. The customer called a week later, overjoyed that their family van was finally reliable again. That’s the difference a quality, correctly programmed part makes.
Is Your Minivan Showing These Red Flags?
A failing ECM can manifest in many ways. If you’re experiencing any of the following, it’s highly likely the engine computer is the culprit:
- âś” Check Engine Light is on with communication-related or internal processor fault codes (e.g., P0601, P0606, U0100).
- âś” The engine cranks but refuses to start.
- âś” Unexplained stalling, especially after the engine has warmed up.
- âś” Poor fuel economy and a noticeable loss of power.
- âś” Harsh or erratic automatic transmission shifting.
- âś” The cooling fans run constantly, even when the engine is cold.
- âś” No communication with your OBD-II scan tool.
A Straightforward Guide to Installation
Installing your new 2008-2010 Caravan Engine Computer is a job most DIYers can handle in under an hour with basic hand tools. Follow these steps for a successful installation.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent accidental contact.
- Locate the ECM: On these minivans, the ECM is typically located in the engine bay, on the driver’s side firewall or inner fender.
- Disconnect the Connectors: Carefully release the locking tabs on the three large electrical connectors and pull them straight out from the module. Avoid pulling on the wires themselves.
- Remove the Old Module: Unbolt the mounting hardware holding the old ECM in place and remove it from the vehicle.
- Install the New ECM: Mount your new, pre-programmed ECM in the same location and secure it with the original hardware.
- Reconnect Everything: Firmly plug the three electrical connectors back into the new module until they click into place. Reconnect the negative battery terminal.
- Final Step: Turn the key to the ‘ON’ position (without starting the engine) for 15 seconds to allow the system to initialize. You’re now ready to start the engine and enjoy a smooth-running vehicle.
Verified Fitment for Your Chrysler/Dodge Minivan
This engine control module is a direct-fit replacement for the following vehicles equipped with the 4.0L V6 engine. It is compatible with a wide range of original part numbers, ensuring a perfect match.
- Dodge Caravan: 2008, 2009, 2010 (with 4.0L Engine)
- Chrysler Town & Country: 2008, 2009, 2010 (with 4.0L Engine)
- Chrysler Pacifica: 2008 (with 4.0L Engine)
This module replaces part numbers: 05150253AC, 05150253AD, 05150253AE, 68044560AB, 68044560AC, 68044560AD, 68044560AE, 68044560AF, 68031313AA, 68031313AB, 68031313AC, 68031313AD, 68031313AE, 68031313AF, 68031313AG, 68031313AH, 68031314AA, 68031314AB, 68031314AC, 68031314AD, 68031314AE, 68031314AF, 68031314AG, 68031314AH.
Frequently Asked Questions
How does the VIN programming work?
During checkout, you will provide your vehicle’s 17-digit VIN. Our technicians will use this information to flash the module with the exact software and calibrations for your specific vehicle, ensuring it works perfectly right out of the box.
Is this really a plug-and-play part?
Yes. Because we program it to your VIN before shipping, there is no need for a trip to the dealership or a mechanic with special scan tools. Simply install it, and you’re ready to go.
Will this fix my Check Engine Light?
If the Check Engine Light is on due to an internal ECM failure (like code P0601), this part will solve the problem. After installation, any stored codes should be cleared with a standard OBD-II scanner.
Do I need any special tools for installation?
No special tools are required. Basic hand tools, such as a socket set and ratchet, are all that’s needed to physically swap the module.
What if my original part number isn’t an exact match but is on the list?
The part numbers listed are all interchangeable. As long as your vehicle model, year, and engine size match our fitment list, this module will function as a direct replacement for any of the compatible part numbers.
