Restore Peak Performance to Your Cadillac XLR
Is your 2008-2009 Cadillac XLR running rough, stalling unexpectedly, or displaying a persistent Check Engine Light? These are classic signs of a failing Engine Control Module (ECM), the electronic brain of your vehicle. A faulty ECM can cripple your car’s performance, fuel economy, and reliability. This isn’t just an inconvenience; it’s a critical component failure that needs a dependable solution. We offer a direct-replacement, VIN-programmed ECM that restores your vehicle’s factory operation without a costly trip to the dealership.
Over my 20+ years in automotive diagnostics, I’ve seen countless drivers frustrated by complex electronic issues. The problem with a standard replacement ECM is that it’s a blank slate; it won’t work until it’s programmed with expensive, specialized equipment. Our solution eliminates that entire step. We take your Vehicle Identification Number (VIN) at checkout and flash this module with the latest, most stable GM software specific to your XLR. When it arrives, it’s ready for installation, turning a potentially complicated repair into a straightforward weekend project for any DIY enthusiast.
Case Study: A Tricky Diagnosis
A customer brought in a 2008 Cadillac with a maddeningly intermittent no-start condition. It would work perfectly for days, then refuse to crank. There were no consistent trouble codes, just a history of lost communication errors (U-codes). After verifying the battery, grounds, and wiring harnesses were solid, I suspected the ECM. On the bench, the module tested fine when cold, but after applying heat with a heat gun to simulate engine bay temperatures, it would fail completely. This internal breakdown is a common failure point. Installing a VIN-programmed ECM like this one resolved the issue permanently, saving the customer from further diagnostic headaches and the cost of a new module from the dealer.
Is Your Cadillac Exhibiting These ECM Failure Signs?
A failing engine computer can cause a wide range of symptoms. If you’re experiencing any of the following, a faulty ECM is a likely culprit:
- ✔ Check Engine Light is on with codes like P0601, P0606, or other internal processor faults.
- ✔ Intermittent or total no-start condition where the engine cranks but won’t fire up.
- ✔ Vehicle stalls for no apparent reason, either while driving or at idle.
- ✔ Noticeable drop in fuel economy and poor engine performance.
- ✔ Transmission shifting issues or harsh engagement.
- ✔ Communication errors with your scan tool, often showing U-codes like U0100.
A Straightforward Guide to Installation
Replacing the ECM on your Cadillac XLR is a manageable task. For the 2008-2009 XLR, the module is typically located in the right-hand (passenger side) front of the engine compartment. Follow these steps for a successful installation:
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait 10-15 minutes to allow the system to fully discharge.
- Locate the ECM: Open the hood and find the ECM in the front passenger-side area of the engine bay. It’s a metal box with large electrical connectors.
- Disconnect the Wiring: Carefully release the locking tabs on the electrical harness connectors and gently pull them straight out from the module. Never force them.
- Remove the Old Module: Unbolt the mounting hardware that secures the old ECM to its bracket. Set the old module aside.
- Install the New Module: Mount your new, pre-programmed ECM in place and secure it with the original hardware.
- Reconnect Everything: Firmly plug the wiring harnesses back into the new module until they click into place. Reconnect the negative battery terminal.
- Final Steps: Your vehicle may require a security relearn procedure, which can often be done without special tools (consult your owner’s manual or a quick online search for your specific model’s procedure). Once complete, your Cadillac is ready to drive!
Verified Vehicle Compatibility

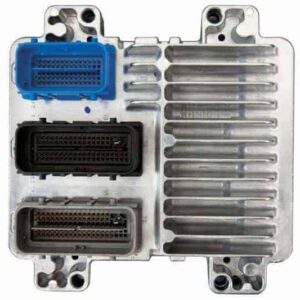

This ECM, part number 12603530, is the correct replacement for the 2008-2009 Cadillac XLR. It also serves as a direct replacement for a wide variety of other GM vehicles, thanks to its compatibility with service numbers 12590032, 12602044, 12605843, 12607096, 12630457, and 19210737. It fits dozens of models from Buick, Chevrolet, Pontiac, Saturn, GMC, Isuzu, and Saab. Please use the fitment tool to confirm it is the correct part for your specific vehicle and options.
Frequently Asked Questions
Frequently Asked Questions
Do I need to do any programming after I install this ECM?
No. We program the module to your car’s specific VIN before shipping. In most cases, it is a plug-and-play installation, although some vehicles may require a simple key relearn or security relearn procedure that you can do at home.
What is a VIN and why do you need it?
The VIN (Vehicle Identification Number) is your car’s unique 17-digit serial number. It contains critical information about your vehicle’s make, model, engine, and factory options. We use it to load the exact correct GM software onto the module, ensuring perfect compatibility.
How do I provide my VIN?
After you complete your purchase, you will receive instructions on how to send us your vehicle’s VIN. We cannot ship your order until we receive this information.
Is this a new or used part?
This is a high-quality, tested, and guaranteed functional replacement part that has been prepared by our expert technicians to provide reliable service.
What if my original part number is different from 12603530?
This module is interchangeable with several other GM service numbers, including 12590032, 12602044, and 12607096, among others. As long as our fitment guide shows it is compatible with your vehicle, it will work correctly.
Will this fix my car’s problem?
This part is a direct solution for a failed ECM. If your vehicle has been properly diagnosed with a faulty engine computer, this module will resolve the associated symptoms. It will not fix other mechanical or electrical issues.
